HANDLE SWITCH (MODEL K1/K2/K3)

VS800GL INTRUDER 2004 (K4) USA (E03)

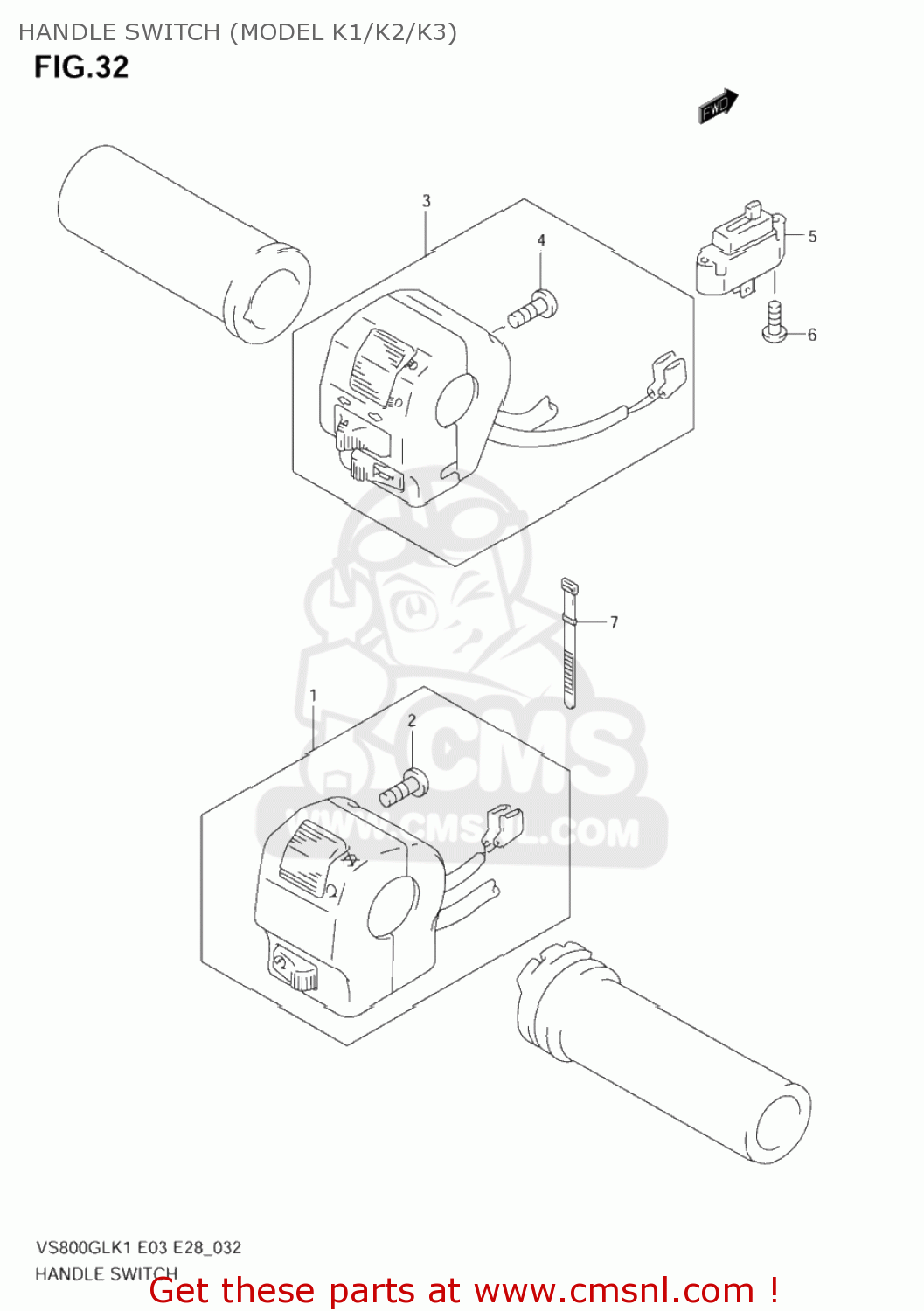

Handle switch (model k1/k2/k3) diagram VS800GL INTRUDER 2004 (K4) USA (E03)

HANDLE SWITCH (MODEL K1/K2/K3) VS800GL INTRUDER 2004 (K4) USA (E03)

HANDLE SWITCH (MODEL K1/K2/K3) VS800GL INTRUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720038AD0
ref: 1

SWITCH ASSY,HANDLE,R

€ 226.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740038AC0
ref: 3
37400-39AC0

SWITCH ASSEMBLY,HANDLE,LEFT

€ 179.00

4

0211205167
ref: 4

SCREW

€ 2.50

5

3756038A00
ref: 5

SWITCH ASSY,CLUTCH

€ 20.00

6

0214203127
ref: 6

SCREW

€ 2.00

7

0940714401
ref: 7

CLAMP

€ 3.00
