AIR CLEANER (FRONT)
VX800 1991 (M) USA (E03)

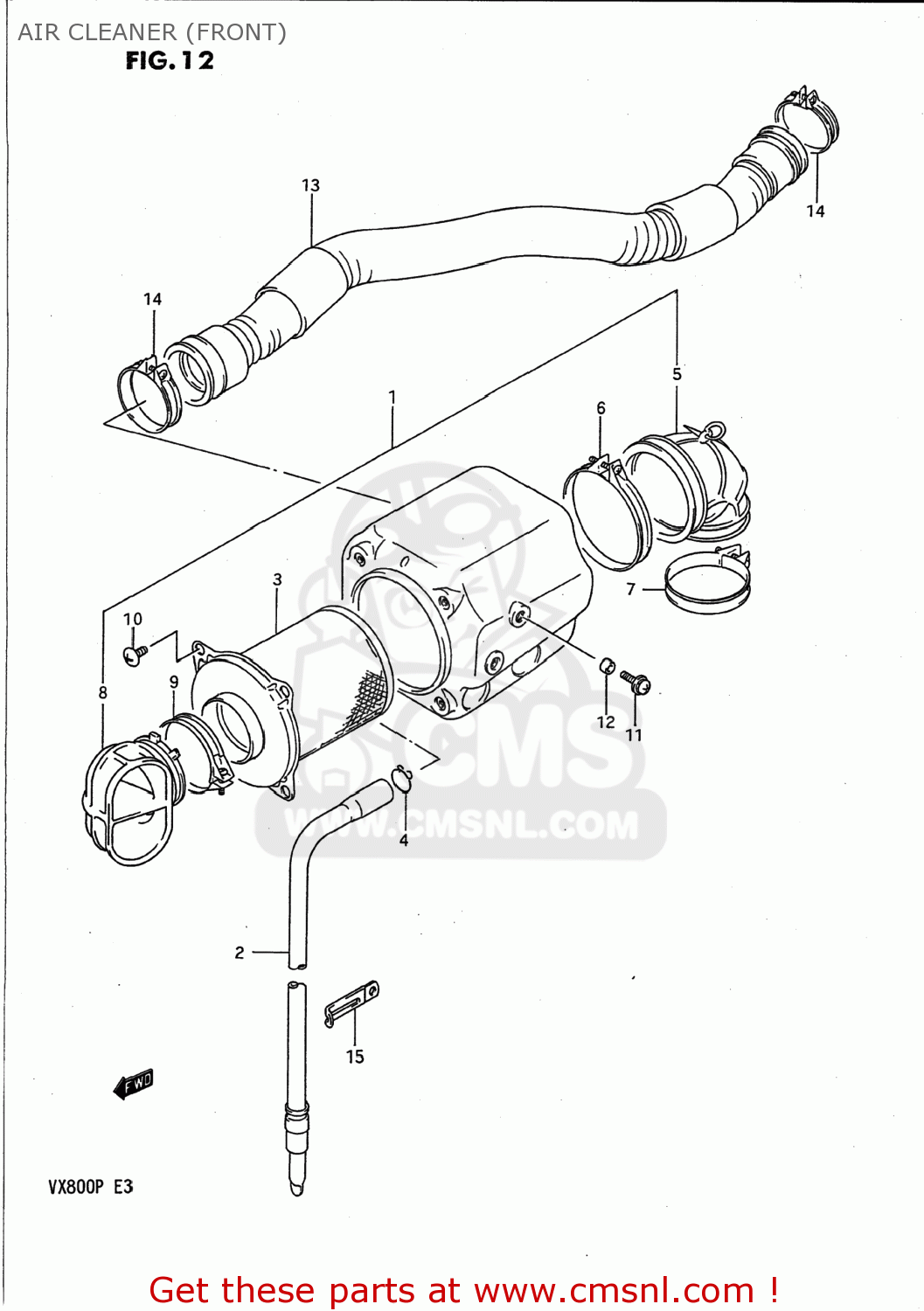

Air cleaner (front) diagram VX800 1991 (M) USA (E03)
AIR CLEANER (FRONT) VX800 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370045C20
ref: 1
CLEANER ASSEMBLY,AIR,FRONT
€ 109.00
2
1387011714
ref: 2
TUBE,DRAIN
€ 19.50
3
1378045C20
ref: 3
FILTER ASSY,AIR
€ 42.50
4
1382400A00
ref: 4
09401-13409
CLIP
€ 2.50
5
1388138B00
ref: 5
TUBE,AIR CLEANER OUTLET
€ 25.50
6
0940272207
ref: 6
09402-72203
CLAMP
€ 7.50
7
0940258208
ref: 7
CLAMP
€ 5.50
8
1389145C00
ref: 8
TUBE,INLET
€ 21.00
9
0940256208
ref: 9
09402-56901
CLAMP
€ 3.50
10
0214205087
ref: 10
SCREW
€ 2.00
11
0211276168
ref: 11
02112-7616A
SCREW
€ 2.00
12
0918006092
ref: 12
SPACER(6.2X8.3X6.1)
€ 4.00
13
1373045C00
ref: 13
HOSE,AIR CLEANER
€ 58.50
14
0940242208
ref: 14
CLAMP
€ 4.50
15
0940406402
ref: 15
09404-06432
CLAMP
€ 2.50
