prices are in EUR

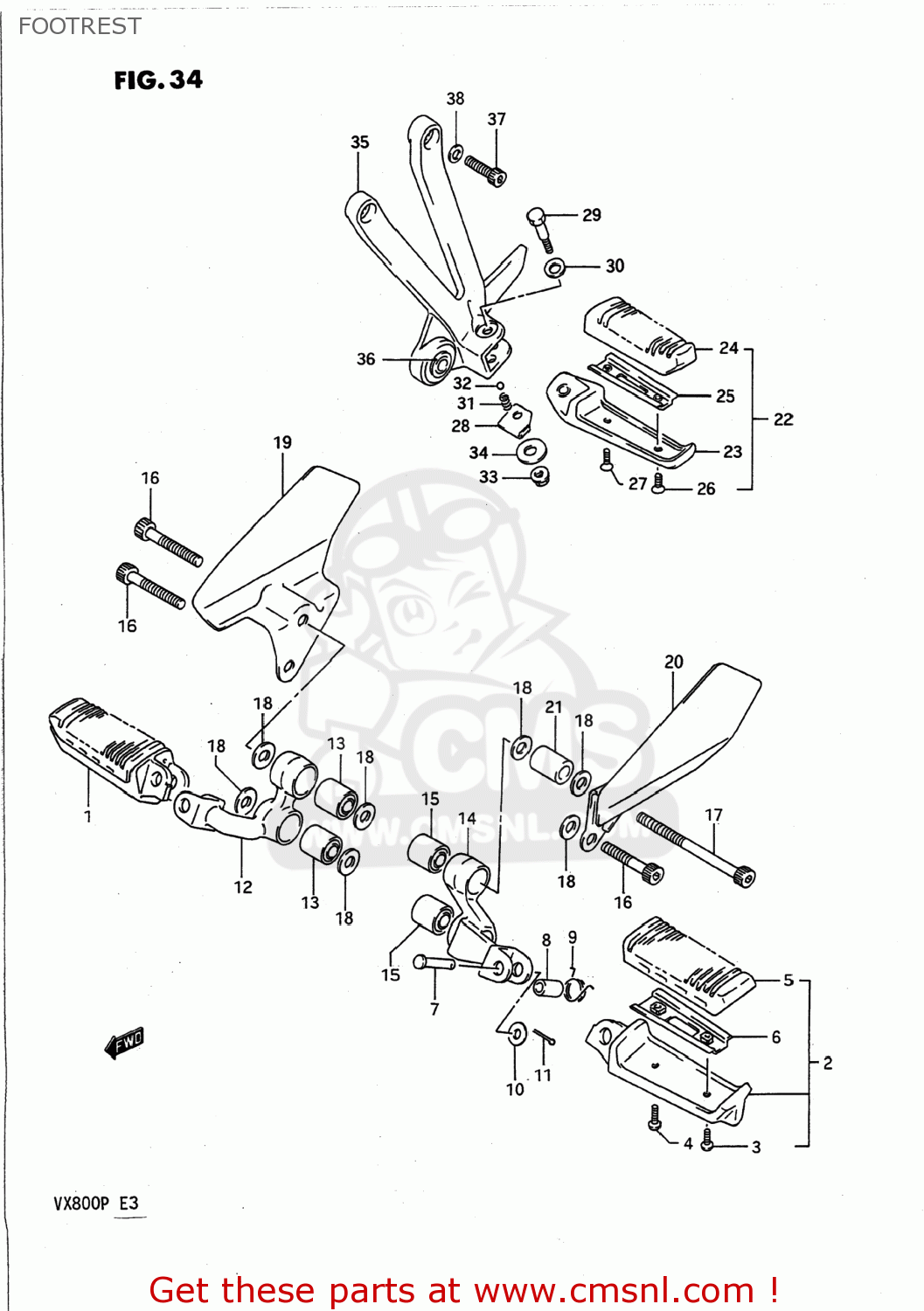

ref
part #
description
quantity
1
FOOTREST ASSY,FR,R
2
FOOTREST ASSY,FR,L
4
SCREW
5-1
RUBBER,FOOTREST
5-2
RUBBER,FOOTREST
6
PLATE,FR FOOTREST RUBBER
7
PIN
8
SPACER(8.1X12X22)
9
SPRING
10
WASHER
11
PIN 20X20
12
HOLDER,FR FOOTREST,R
13
BUSH
14
HOLDER,FR FOOTREST,L
15
BUSH
16-1
BOLT
17-2
BOLT,FRONT FOOTREST HOLDER
18
WASHER(10.5X22X2.3)
19-2
GUARD COMP,FRONT FOOTREST
20-1
CUSHION,FRONT FOOTREST
20-2
GUARD COMP,FRONT FOOTREST
21
SPACER,FR FOOTREST GUARD,L
22-1
FOOTREST ASSY,PILLION,R
22-2
FOOTREST ASSY,PILLION,L
23-1
BAR COMP,PILLION FOOTREST
23-2
BAR COMP,PILLION FOOTREST
24
RUBBER,RR FOOTREST
25
PLATE,RUBBER STOPPER
26
SCREW 5X12
27
SCREW 5X16
28-1
PLATE,SPRING STOP,R
28-2
PLATE,SPRING STOP,L
29
BOLT(6X45)
30
SHIM(8.2X22X0.2)
31
SPRING
32
BALL
33
NUT
34
WASHER
35-1
BRACKET,PILLION FOOTREST,R
35-2
BRACKET,PILLION FOOTREST
36
BUSH(10.2X25X19)
37
BOLT, FRONT LH
38
WASHER
