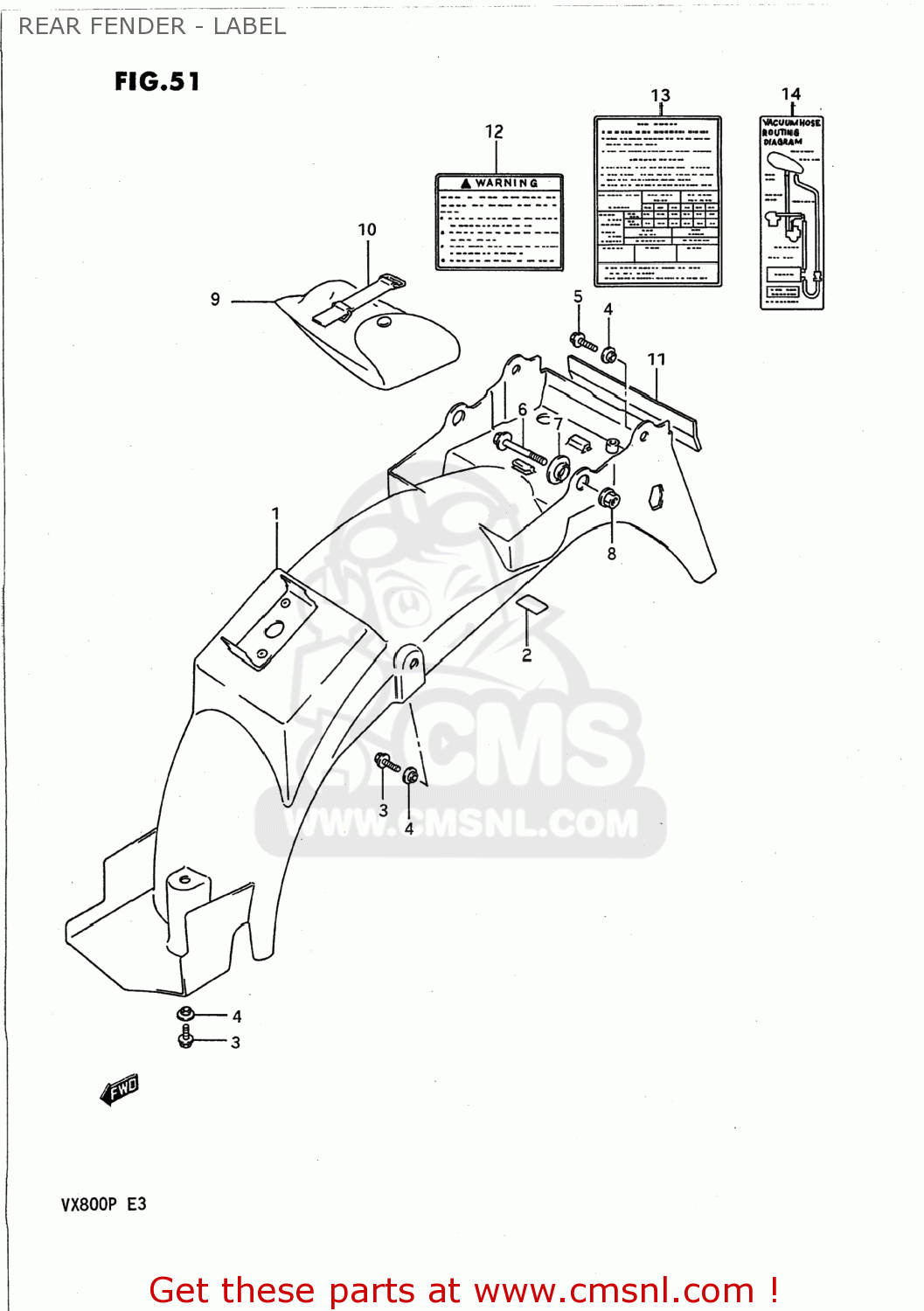

REAR FENDER - LABEL - VX800 1991 (M) USA (E03)

ref

part #

description

quantity

1

6311045C20
ref: 1
63110-45C21

FENDER,REAR

€ 135.00

2

6311506C00
ref: 2

TAPE,RR FENDER

€ 7.00

3-1

0151706125
ref: 3-1
01550-0612A

BOLT 6X12

€ 2.50

3-2

0151706128
ref: 3-2
01550-06127

BOLT

€ 2.50

4

0916906037
ref: 4

WASHER

€ 6.50

5-1

0151706164
ref: 5-1
01550-0616A

BOLT

€ 2.50

5-2

0151706167
ref: 5-2
01550-06167

BOLT 6X16

€ 1.50

6-1

0151708555
ref: 6-1
01550-0855A

BOLT

€ 3.00

6-2

0151708558
ref: 6-2
01550-08557

BOLT 8X55

€ 3.00

7

0916908045
ref: 7

WASHER

€ 2.00

8-1

0831616085
ref: 8-1
08316-1008B

NUT 8MM

€ 3.00

8-2

0831616088
ref: 8-2
08316-10087

NUT

€ 2.50

9

0980020033
ref: 9
09800-21015

TOOL ASSY

€ 49.50

10

0946200072
ref: 10

BAND

€ 3.50

11

6311845C00
ref: 11

CUSHION,RR FENDER

€ 8.50

12

6831940C00
ref: 12
68319-33E01

LABEL

€ 8.00

13

6833245C31
ref: 13

LABEL (TIRE AIR PRESSURE)

€ 0.00

14

6838745C10
ref: 14

LABEL (VACUUM HOSE ROUTING)

€ 0.00
