REAR WHEEL
VX800 1991 (M) USA (E03)

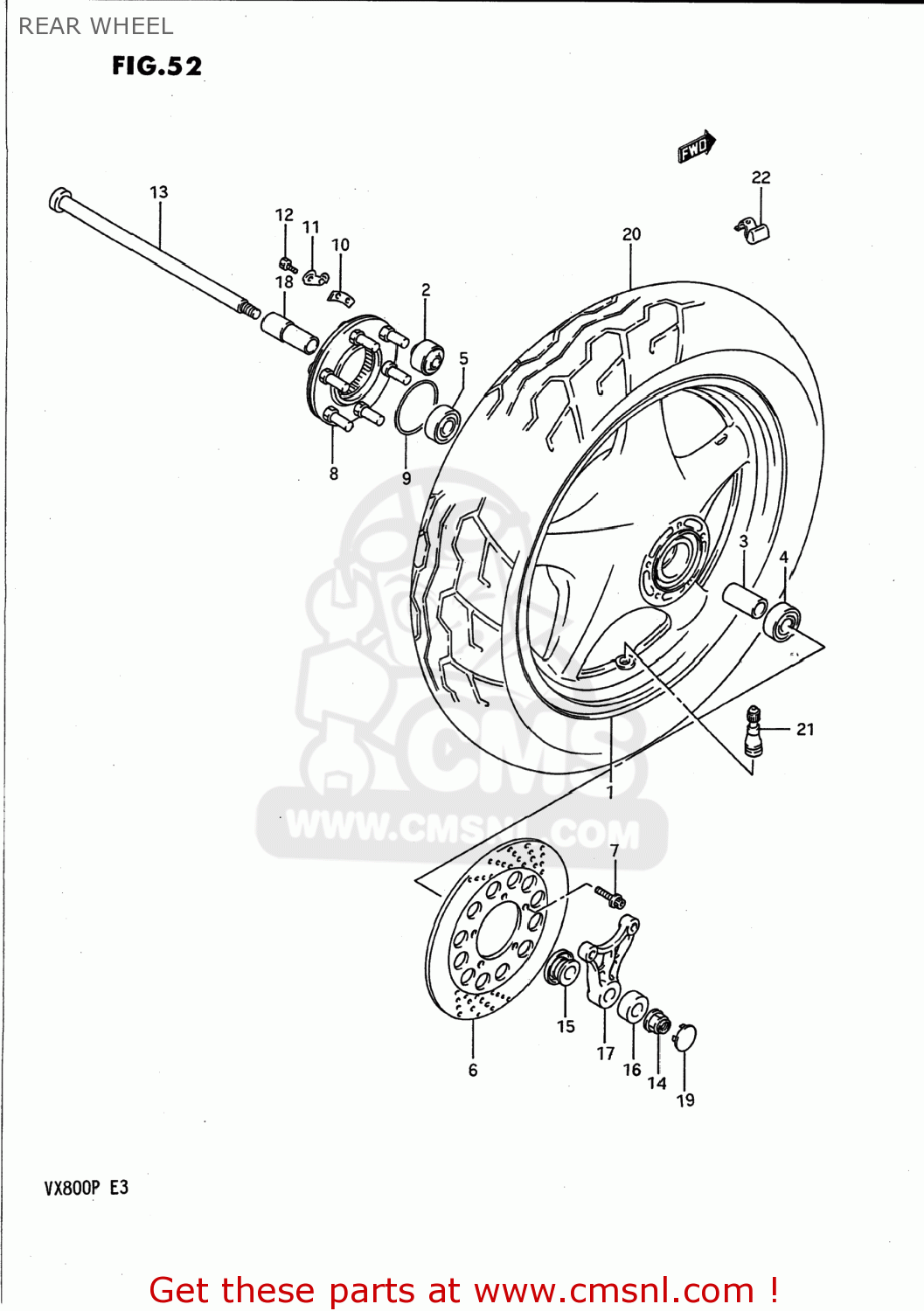

Rear wheel diagram VX800 1991 (M) USA (E03)
REAR WHEEL VX800 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
641004583012Z
ref: 1-1
64100-45830-23W
WHEEL SET,REAR (MT3.50X17)
€ 449.50
1-1
641004583012Z
ref: 1-1
64100-45830-23W
WHEEL SET,REAR (MT3.50X17)
€ 449.50
1-2
641004583023W
ref: 1-2
WHEEL SET,REAR (17XMT3)
€ 449.50
1-2
641004583023W
ref: 1-2
WHEEL SET,REAR (17XMT3)
€ 449.50
2
0931912019
ref: 2
BUSH
€ 10.50
3
0918017099
ref: 3
SPACER,REAR HUB BEARING
€ 14.50
4
0812363037
ref: 4
BEARING
€ 16.00
5
0814363037
ref: 5
BEARING
€ 23.00
6-1
6921145C00
ref: 6-1
69211-45C10
DISC,REAR BRAKE
€ 237.00
6-2
6921145C10
ref: 6-2
DISC,RR BRAKE
€ 237.00
7
0712008308
ref: 7
07120-08307
BOLT, REAR
€ 3.50
8
6468007A01
ref: 8
64680-45113
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
9
0928065003
ref: 9
O RING(D:2.1,ID:65)
€ 2.50
10
6467745110
ref: 10
WASHER,THRUST(T:1.6)
€ 2.50
11
0916906030
ref: 11
WASHER
€ 2.00
12
0911906049
ref: 12
BOLT(6X16)
€ 1.50
13
6471145C01
ref: 13
64711-45C0V
AXLE,REAR
€ 64.50
14
0831931148
ref: 14
08319-3114A
NUT
€ 9.00
15
6474031301
ref: 15
64740-38B00
SPACER,REAR AXLE,RIGHT
€ 23.00
16
6474145C02
ref: 16
SPACER,RR AXLE,R
€ 6.00
17
6972143400
ref: 17
BRACKET,RR,CALIPER
€ 51.50
18
6477234201
ref: 18
SPACER,RR AXLE,L
€ 14.50
19
6479138B00
ref: 19
CAP,RR AXLE,R
€ 83.50
20-1
6511045C10
ref: 20-1
65100-20CB0
TIRE 150/70 817 69H,ME
€ 0.00
20-1
6511045C10
ref: 20-1
65100-20CB0
TIRE 150/70 817 69H,ME
€ 0.00
20-2
6511045C01
ref: 20-2
65110-10D10
TIRE
€ 323.50
20-2
6511045C01
ref: 20-2
65110-10D10
TIRE
€ 323.50
20-3
6511045C20
ref: 20-3
65110-10D10
TIRE,REAR 150/70-17 69
€ 323.50
20-3
6511045C20
ref: 20-3
65110-10D10
TIRE,REAR 150/70-17 69
€ 323.50
21
4313024A00
ref: 21
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
22-1
5541100A00
ref: 22-1
BALANCER,WHEEL (10G)
€ 6.50
22-2
5541200A00
ref: 22-2
55412-17G00
BALANCER,WHEEL
€ 7.00
22-3
5541300A00
ref: 22-3
55413-00A01
BALANCER,WHEEL
€ 4.00
