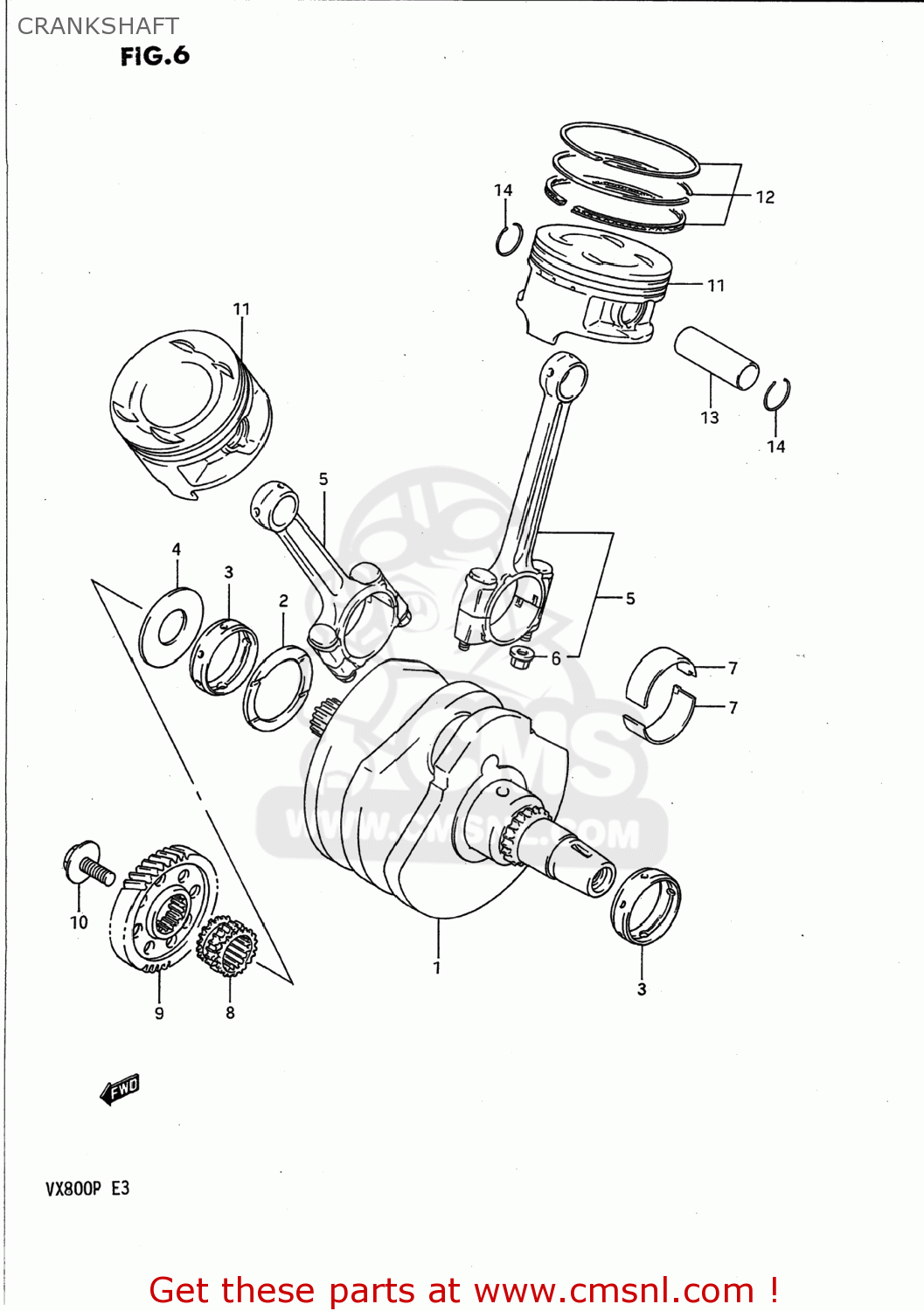

CRANKSHAFT

ref

part #

description

quantity

1

1200038810
ref: 1

CRANKSHAFT SET

€ 1,417.50

2-1

0916048001
ref: 2-1

WASHER(48.1X64X1.94)

€ 18.50

2-10

0916048010
ref: 2-10

WASHER(48.1X64X2.16)

€ 17.00

2-2

0916048002
ref: 2-2

WASHER(48.1X64X1.96)

€ 17.00

2-3

0916048003
ref: 2-3

WASHER(48.1X64X1.99)

€ 17.00

2-4

0916048004
ref: 2-4

WASHER(48.1X64X2.01)

€ 17.00

2-5

0916048005
ref: 2-5

WASHER(48.1X64X2.04)

€ 17.00

2-6

0916048006
ref: 2-6

WASHER(48.1X64X2.06)

€ 17.00

2-7

0916048007
ref: 2-7

WASHER(48.1X64X2.09)

€ 17.00

2-8

0916048008
ref: 2-8

WASHER(48.1X64X2.11)

€ 17.00

2-9

0916048009
ref: 2-9

WASHER(48.1X64X2.14)

€ 17.00

3

1222938A00
ref: 3

METAL,CRANKSHAFT

€ 22.50

4

1265238A00
ref: 4

WASHER,CRANK THRUST

€ 47.00

5

1216045C10
ref: 5

CONNECTING ROD ASSY

€ 118.50

6

0915909001
ref: 6

NUT

€ 4.50

7-1

1216445C000A0
ref: 7-1
12164-45C01-0A0

BEARING,CRANK PIN (GREEN)

€ 11.50

7-2

1216445C000B0
ref: 7-2
12164-45C01-0B0

BEARING,CRANK PIN (BLACK)

€ 12.50

7-3

1216445C000C0
ref: 7-3
12164-45C01-0C0

BEARING,CRANK PIN (BROWN)

€ 12.50

7-4

1216445C000D0
ref: 7-4
12164-45C01-0D0

BEARING,CRANK PIN

€ 14.00

7-5

1216445C000E0
ref: 7-5
12164-45C01-0E0

BEARING,CRANK PIN

€ 12.50

8

1273138A00
ref: 8

SPROCKET,CAM CHAIN DRIVE,R

€ 34.00

9

2111138A00
ref: 9

GEAR,PRIMARY DRIVE

€ 99.50

10

0910312013
ref: 10

BOLT(12X28)

€ 6.00

11-1

1211145C000F0
ref: 11-1

PISTON

€ 105.50

11-2

1211145C00050
ref: 11-2
12100-45C00-050

PISTON

€ 147.50

11-3

1211145C00100
ref: 11-3
12100-45C00-100

PISTON

€ 110.00

12-1

1214045C10
ref: 12-1

RING SET,PISTON

€ 60.50

12-2

1214045C10050
ref: 12-2

RING SET,PISTON (OS:0.5)

€ 35.50

12-3

1214045C10100
ref: 12-3

RING SET,PISTON (OS:1.0)

€ 38.50

13

1215124A00
ref: 13

PIN,PISTON

€ 18.50

14

0938120004
ref: 14

CIRCLIP,PISTON PIN

€ 2.00
