COWLING (OPTIONAL)

VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

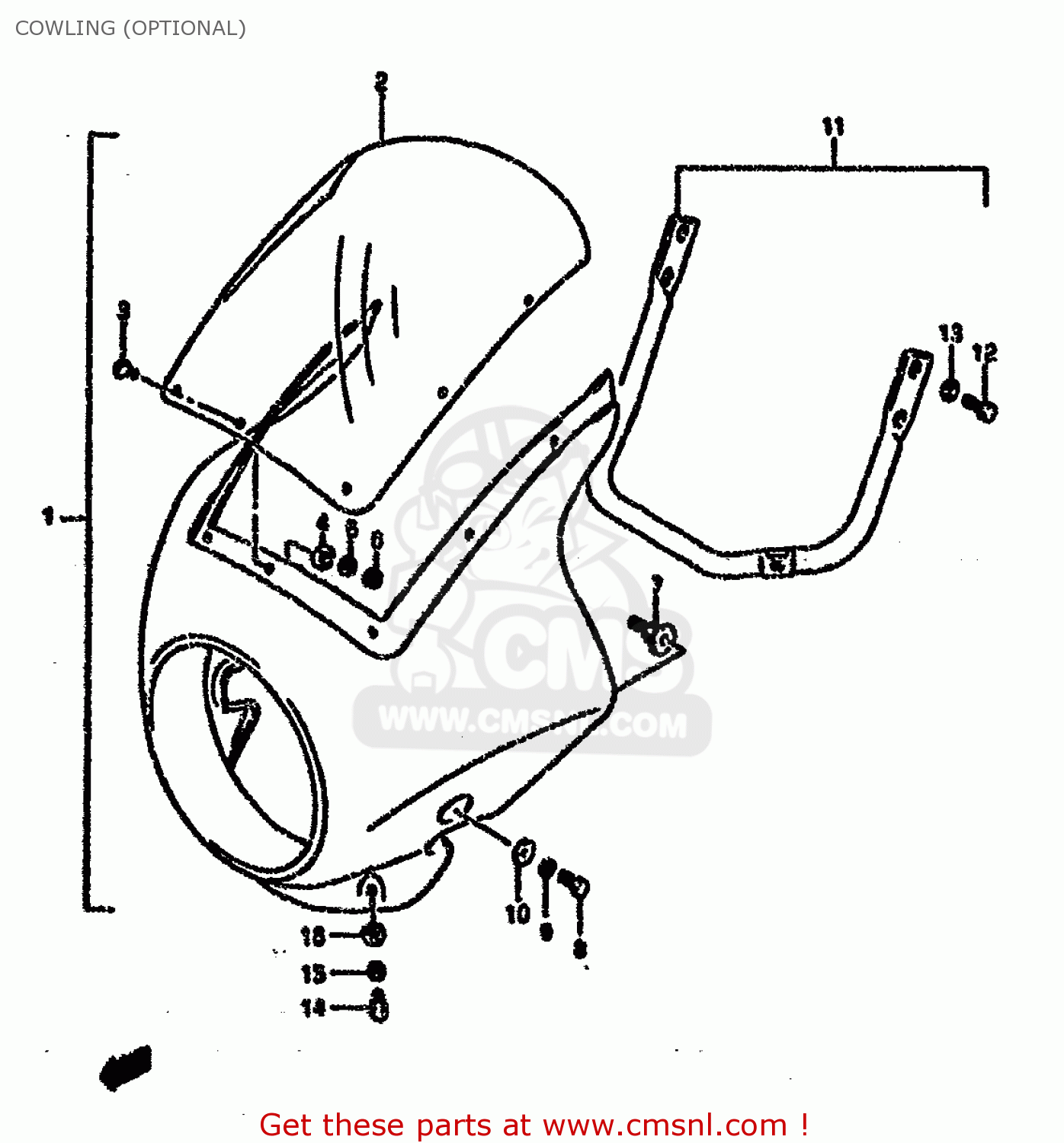

Cowling (optional) diagram VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

COWLING (OPTIONAL) VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
COWLING (OPTIONAL) VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
COWLING (OPTIONAL) VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
9440245C5024D
ref: 1-1
MODEL L/N
UPPER COWLING SET (MAROON)
€ 628.50
1-2
9440245C5024V
ref: 1-2
MODEL L
UPPER COWLING SET (BLUE)
€ 628.50
1-3
9440245C500FP
ref: 1-3
MODEL M
UPPER COWLING SET
€ 509.00
1-4
9440245C5019A
ref: 1-4
MODEL M
UPPER COWLING SET,ANTA
€ 509.00
1-5
9440245C5033J
ref: 1-5
MODEL L/M/N/P/R/T
UPPER COWLING SET (BLACK)
€ 509.00
1-6
9440245C501HU
ref: 1-6
MODEL N
COVER SET,UPPER COWLING (P
€ 602.50
1-7
9440245C5022U
ref: 1-7
MODEL P/R/T
UPPER COWLING SET,MAROON
€ 628.50
1-8
9440245C501TU
ref: 1-8
MODEL R/T
COWLING ASSY (PURPLE)
€ 1,062.00
2
9443245C50
ref: 2
SCREEN,COWLING
€ 214.00
3
0214204103
ref: 3
SCREW
0214204103
€ 1.50
4
0832201043
ref: 4
WASHER
0832201043
€ 5.00
5
0832101043
ref: 5
WASHER,LOCK
0832101043
€ 2.00
6
0831000043
ref: 6
NUT
€ 2.00
7
9474101D50
ref: 7
BOLT,COWLING HEADLAMP
9474101D50
€ 10.50
8-1
0120406167
ref: 8-1
MODEL L/M/N/P/R
BOLT
0120406167
€ 2.00
8-2
0157006167
ref: 8-2
MODEL T
BOLT
0157006167
€ 2.50
9
0832101067
ref: 9
MODEL L/M/N/P/R
WASHER,LOCK
0832101067
€ 2.50
10
0916006084
ref: 10
WASHER(6.5X18X1.6)
0916006084
€ 2.00
11
9451001D50
ref: 11
BRACE,UPPER COWLING
9451001D50
€ 151.00
12-1
0120406167
ref: 12-1
MODEL L/M/N/P/R
BOLT
0120406167
€ 2.00
12-2
0155006167
ref: 12-2
MODEL T
BOLT
0155006167
€ 1.50
13
0832201067
ref: 13
MODEL L/M/N/P/R
WASHER
0832201067
€ 2.00
14-1
0120406127
ref: 14-1
MODEL L/M/N/P/R
BOLT
0120406127
€ 1.50
14-2
0157006127
ref: 14-2
MODEL T
BOLT
0157006127
€ 2.50
15
0832101067
ref: 15
MODEL L/M/N/P/R
WASHER,LOCK
0832101067
€ 2.50
16
0832201067
ref: 16
WASHER
0832201067
€ 2.00
