REAR SWINGING ARM (E1)

VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

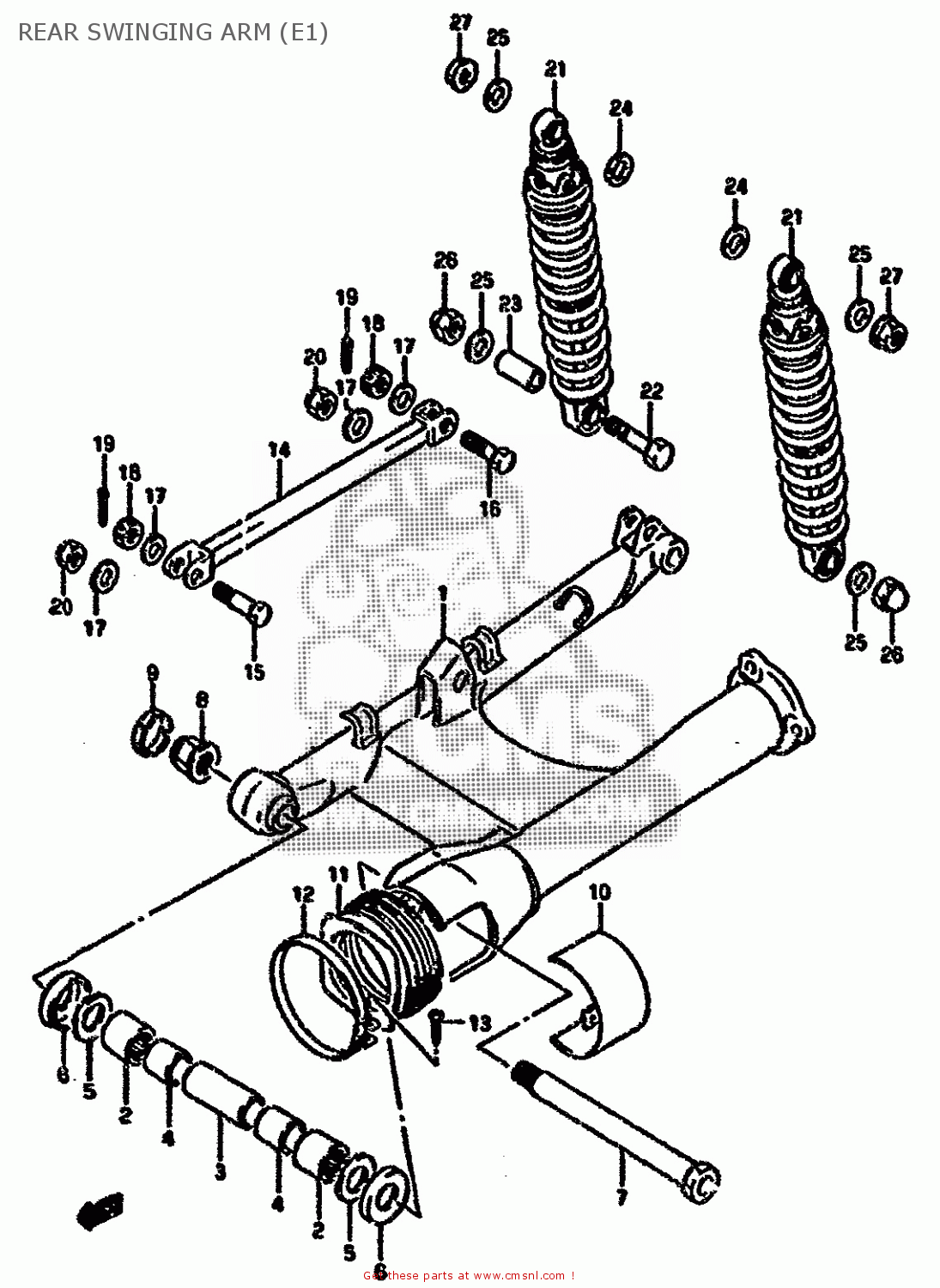

Rear swinging arm (e1) diagram VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

REAR SWINGING ARM (E1) VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
REAR SWINGING ARM (E1) VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
REAR SWINGING ARM (E1) VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
6110045C0313L
ref: 1-1
MODEL L
SWING ARM,REAR
€ 561.50
1-2
6110045C0323W
ref: 1-2
MODEL M/N
SWING ARM ASSEMBLY,REAR
€ 560.00
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
6128245C01
ref: 3
SPACER,REAR SWING ARM PIVOT
6128245C01
€ 11.50
4
6125117C00
ref: 4
SPACER,RR SWGARM PIVOT BERRING
6125117C00
€ 36.00
5
0821120381
ref: 5
WASHER
0821120381
€ 3.00
6
6126210D00
ref: 6
COVER,RR SWGARM PIVOT SEAL
6126210D00
€ 9.00
7
6121145C01
ref: 7
SHAFT,RR SWINGINGARM PIVOT
6121145C01
€ 54.50
8
0831931188
ref: 8
NUT ,18MM
0831931188
€ 17.50
9
6122248B00
ref: 9
CAP,RR SWINGING ARM PIVOT
6122248B00
€ 4.00
10-1
6123238A0013L
ref: 10-1
MODEL L
COVER,SWGARM PIVOT,L
6123238A0013L
€ 25.50
10-2
6123238A0023W
ref: 10-2
MODEL M/N
COVER,REAR SWING ARM PIVOT
6123238A0023W
€ 25.50
11
6137238A00
ref: 11
BOOT,PROPELLER SHAFT
6137238A00
€ 16.50
12
0940292306
ref: 12
CLAMP
0940292306
€ 8.50
13
0321104255
ref: 13
SCREW 4X25
0321104255
€ 2.00
14-1
6431045C0013L
ref: 14-1
MODEL L
TORQUE LINK,REAR
€ 30.00
14-2
6431045C0023W
ref: 14-2
MODEL M/N
TORQUE LINK,REAR
6431045C0023W
€ 30.00
15-1
0911110016
ref: 15-1
MODEL L
BOLT(10X41)
0911110016
€ 6.50
15-2
0911110051
ref: 15-2
MODEL M/N
BOLT(10X39)
0911110051
€ 8.50
16-1
0910110036
ref: 16-1
MODEL L
BOLT(10X35)
0910110036
€ 4.50
16-2
0910010278
ref: 16-2
MODEL M/N
BOLT
€ 4.50
17-1
0916010069
ref: 17-1
MODEL L
WASHER (10X18X3.2)
€ 2.00
17-2
0832211107
ref: 17-2
MODEL M/N
WASHER
0832211107
€ 2.50
18
0831441108
ref: 18
MODEL L
NUT
0831441108
€ 2.50
19
0411120208
ref: 19
MODEL L
PIN 20X20
0411120208
€ 1.50
20
0915910027
ref: 20
MODEL M/N
NUT
0915910027
€ 3.00
21
6210045C20
ref: 21
ABSORBER ASSEMBLY,REAR SHOCK
€ 514.00
22
0910010247
ref: 22
BOLT(10X39)
0910010247
€ 4.00
23
0918010104
ref: 23
SPACER (10.2X14X20.7)
€ 6.00
24
0832211148
ref: 24
WASHER
0832211148
€ 2.00
25
0916010001
ref: 25
WASHER
0916010001
€ 2.00
26
0831311107
ref: 26
NUT
0831311107
€ 2.50
27
0831616108
ref: 27
NUT
0831616108
€ 2.00
