REAR WHEEL

VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

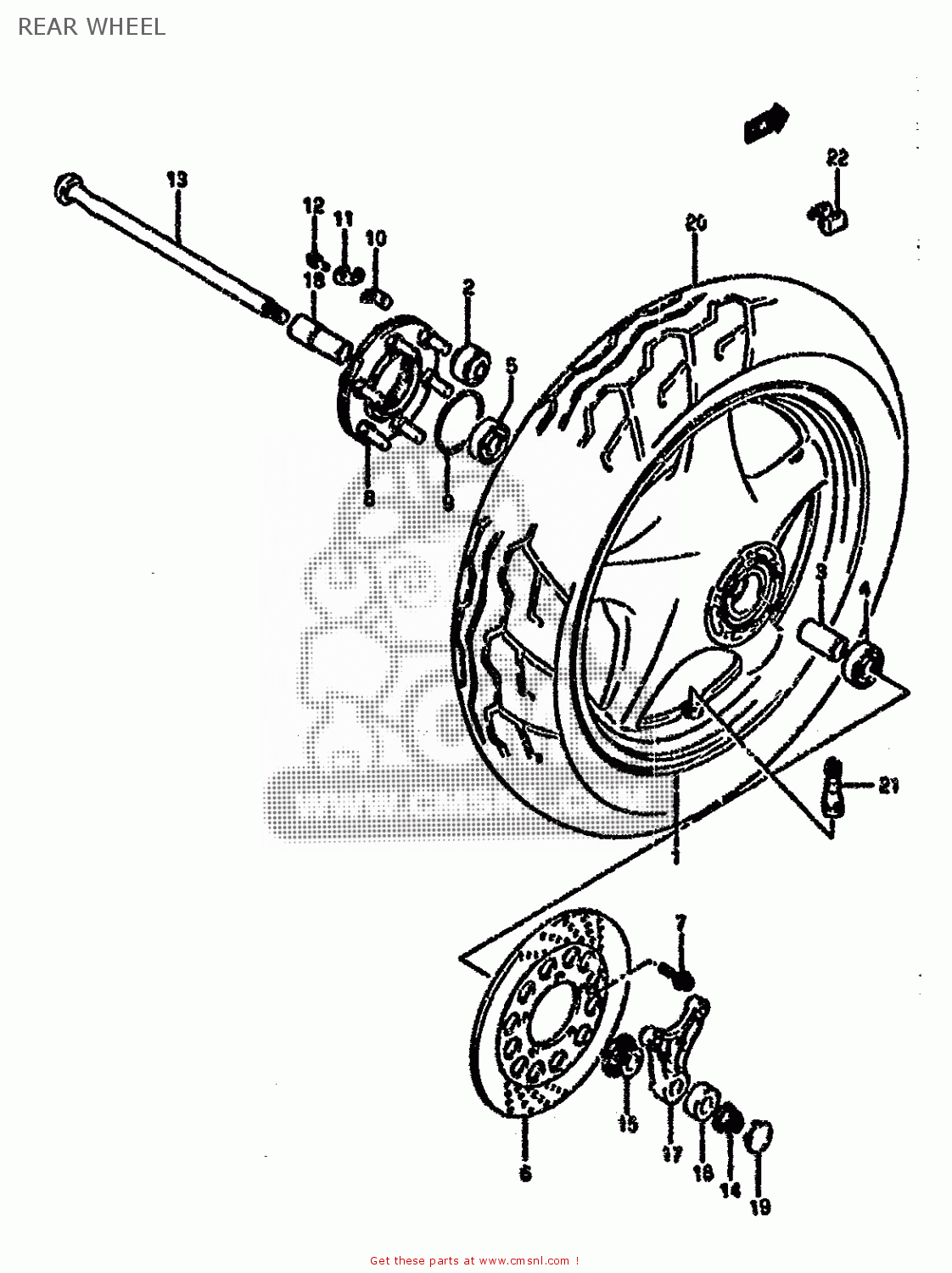

Rear wheel diagram VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

REAR WHEEL VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
REAR WHEEL VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
REAR WHEEL VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
641004583012Z
ref: 1-1
MODEL L/R/T
WHEEL SET,REAR (MT3.50X17)
641004583012Z
€ 449.50
1-2
641004583023W
ref: 1-2
MODEL M/N/P
WHEEL SET,REAR (17XMT3)
641004583023W
€ 449.50
2
0931912019
ref: 2
BUSH
0931912019
€ 10.50
3
0918017099
ref: 3
SPACER,REAR HUB BEARING
€ 14.50
4
0812363037
ref: 4
BEARING
0812363037
€ 16.00
5
0814363037
ref: 5
BEARING
0814363037
€ 23.00
6-1
6921145C00
ref: 6-1
MODEL L
DISC,REAR BRAKE
€ 237.00
6-2
6921145C10
ref: 6-2
MODEL M/N/P/R/T
DISC,RR BRAKE
6921145C10
€ 237.00
7-1
0712008308
ref: 7-1
MODEL L/M/N/P
BOLT, REAR
€ 3.50
7-2
0910608131
ref: 7-2
MODEL R/T
BOLT(8X30)
0910608131
€ 3.50
8-1
6468007A01
ref: 8-1
-64680-45113
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
8-2
6468045113
ref: 8-2
JOINT ASSY,RR HUB DRIVEN
6468045113
€ 181.50
9
0928065003
ref: 9
O RING(D:2.1,ID:65)
0928065003
€ 2.50
10
6467745110
ref: 10
WASHER,THRUST(T:1.6)
6467745110
€ 2.50
11
0916906030
ref: 11
WASHER
0916906030
€ 2.00
12
0911906049
ref: 12
BOLT(6X16)
0911906049
€ 1.50
13-1
6471145C01
ref: 13-1
MODEL L/M/N
AXLE,REAR
€ 64.50
13-2
6471145C02
ref: 13-2
MODEL P/R/T
AXLE,REAR
6471145C02
€ 64.50
14
0831931148
ref: 14
NUT
0831931148
€ 9.00
15-1
6474031301
ref: 15-1
-64740-38B00
SPACER,REAR AXLE,RIGHT
6474031301
€ 23.00
15-2
6474038B00
ref: 15-2
SPACER,RR AXLE,R
6474038B00
€ 23.00
16
6474145C02
ref: 16
SPACER,RR AXLE,R
€ 6.00
17
6972143400
ref: 17
BRACKET,RR,CALIPER
€ 51.50
18
6477234201
ref: 18
SPACER,RR AXLE,L
6477234201
€ 14.50
19
6479138B00
ref: 19
CAP,RR AXLE,R
6479138B00
€ 83.50
20
6511045C10
ref: 20
EXECUTED LOCALLY
TIRE 150/70 817 69H,ME
€ 0.00
21-1
4313024A00
ref: 21-1
-43130-24A11
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
21-2
4313024A11
ref: 21-2
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
22-1
5541100A00
ref: 22-1
BALANCER,WHEEL (10G)
€ 6.50
22-2
5541200A01
ref: 22-2
BALANCER,WHEEL (20G)
€ 7.00
22-3
5541300A01
ref: 22-3
BALANCER,WHEEL
€ 4.00
