MUFFLER

VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

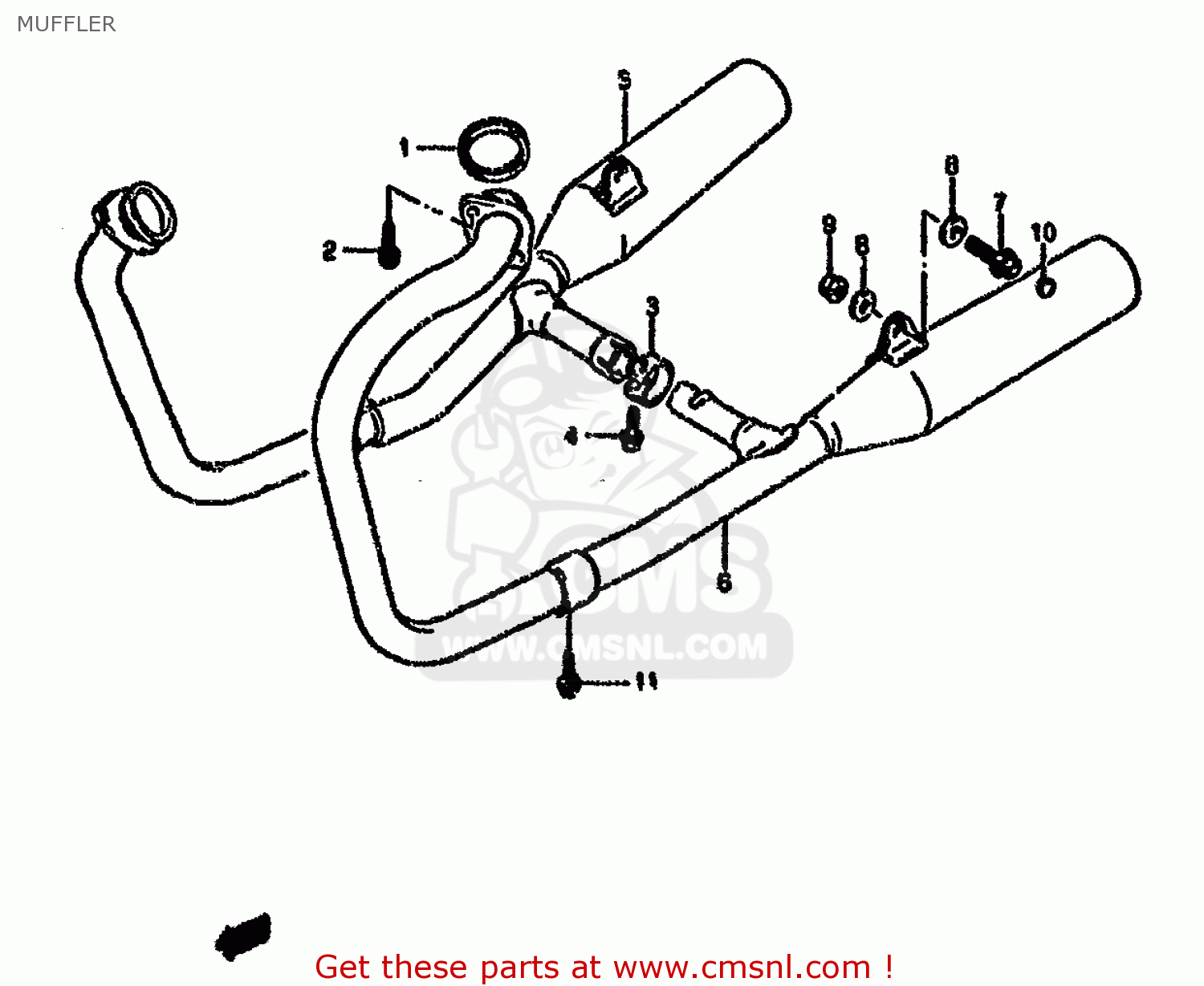

Muffler diagram VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

MUFFLER VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
MUFFLER VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
MUFFLER VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1418145C00
ref: 1
-14181-38A00-14181-3
GASKET,EXHAUST PIPE (NAS)
1418145C00
€ 6.50
2-1
0910608104
ref: 2-1
MODEL L/M/N
BOLT
0910608104
€ 5.00
2-2
0713008257
ref: 2-2
MODEL P/R/T
BOLT
0713008257
€ 3.50
3
1445945C00
ref: 3
CLAMP,MUFFLER JOINT
1445945C00
€ 17.00
4-1
0151708357
ref: 4-1
MODEL L/M/N/P
BOLT
€ 3.50
4-2
0155008353
ref: 4-2
MODEL R/T
BOLT
0155008353
€ 3.50
5-1
1430545C00
ref: 5-1
-14305-45C51
MUFFLER,RH
€ 722.00
5-2
1430545C10
ref: 5-2
E2,E4,E15,E18,E21,E2
MUFFLER,RH
€ 582.00
5-3
1430545C61
ref: 5-3
MODEL P/R
MUFFLER,RH
€ 582.00
5-4
1430545C71
ref: 5-4
MODEL T
MUFFLER,RH
€ 543.50
6-1
1430645C00
ref: 6-1
MODEL L/M,-14306-45C
MUFFLER,LH
€ 0.00
6-2
1430645C51H01
ref: 6-2
MODEL N,-14306-45C50
MUFFLER,LH
€ 0.00
6-3
1430645C10
ref: 6-3
MODEL L/M E2,E4,E15,
MUFFLER,LH
€ 613.50
6-4
1430645C60
ref: 6-4
MODEL N E2,E4,E15,E1
MUFFLER,LH
1430645C60
€ 613.50
6-5
1430645C60
ref: 6-5
MODEL P/R
MUFFLER,LH
1430645C60
€ 613.50
6-6
1430645C70
ref: 6-6
MODEL T
MUFFLER,LH
€ 578.50
7
0712010407
ref: 7
BOLT
0712010407
€ 4.50
8
0916010101
ref: 8
WASHER
€ 2.00
9
0831620103
ref: 9
NUT
0831620103
€ 3.50
10
0925008012
ref: 10
MODEL L/M/N/P/R
CAP(OD:12)
0925008012
€ 2.00
11
0154706107
ref: 11
MODEL T
BOLT
0154706107
€ 1.50
