FRONT WHEEL

VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

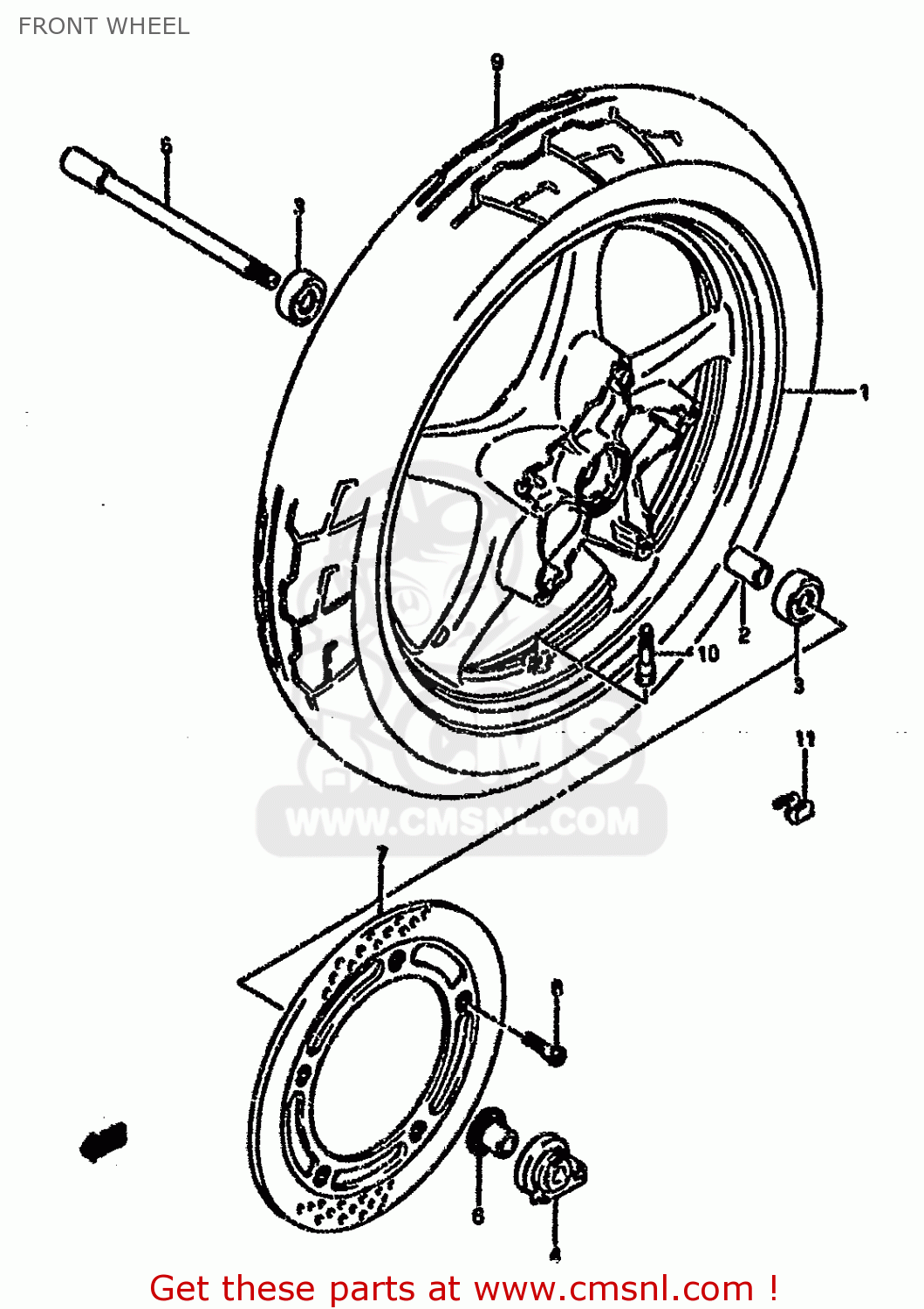

Front wheel diagram VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)

FRONT WHEEL VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
FRONT WHEEL VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
FRONT WHEEL VX800 1992 (N) (E01 E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
5411145C1012Z
ref: 1-1
MODEL L-54111-45C10-
WHEEL,FRONT
€ 912.50
1-2
5411145C1023W
ref: 1-2
MODEL M/N/P
WHEEL,FRONT
€ 912.50
1-3
5411145C1112Z
ref: 1-3
MODEL R/T
WHEEL,FR(MT3.00X18)
5411145C1112Z
€ 866.50
2
0918015011
ref: 2
SPACER(15.3X21.7X63)
0918015011
€ 7.50
3
0812363027
ref: 3
BEARING
0812363027
€ 19.00
4
5460045C00
ref: 4
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 111.00
5
5471145C00
ref: 5
AXLE,FRONT
5471145C00
€ 70.00
6
5474018410
ref: 6
SPACER,FR HUB BEARING,R
5474018410
€ 17.00
7-1
5922145C00
ref: 7-1
MODEL L/M/N
DISC,FR BRAKE,L
5922145C00
€ 186.50
7-2
5922145C10
ref: 7-2
MODEL P/R/T
DISC,FRONT BRAKE,L
5922145C10
€ 215.00
8-1
0910608082
ref: 8-1
MODEL L/M/N/P
BOLT 8X33
0910608082
€ 6.00
8-2
0910608125
ref: 8-2
MODEL R/T
BOLT 8X33
0910608125
€ 6.00
9
5511045C10
ref: 9
EXECUTED LOCALLY
TIRE 110/80-18 58M,MET
€ 0.00
10-1
4313024A00
ref: 10-1
-43130-24A11
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
10-2
4313024A11
ref: 10-2
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
11-1
5541100A00
ref: 11-1
BALANCER,WHEEL (10G)
€ 6.50
11-2
5541200A01
ref: 11-2
BALANCER,WHEEL (20G)
€ 7.00
11-3
5541300A01
ref: 11-3
BALANCER,WHEEL
€ 4.00
