AIR CLEANER (REAR)
VX800 1993 (P) USA (E03)

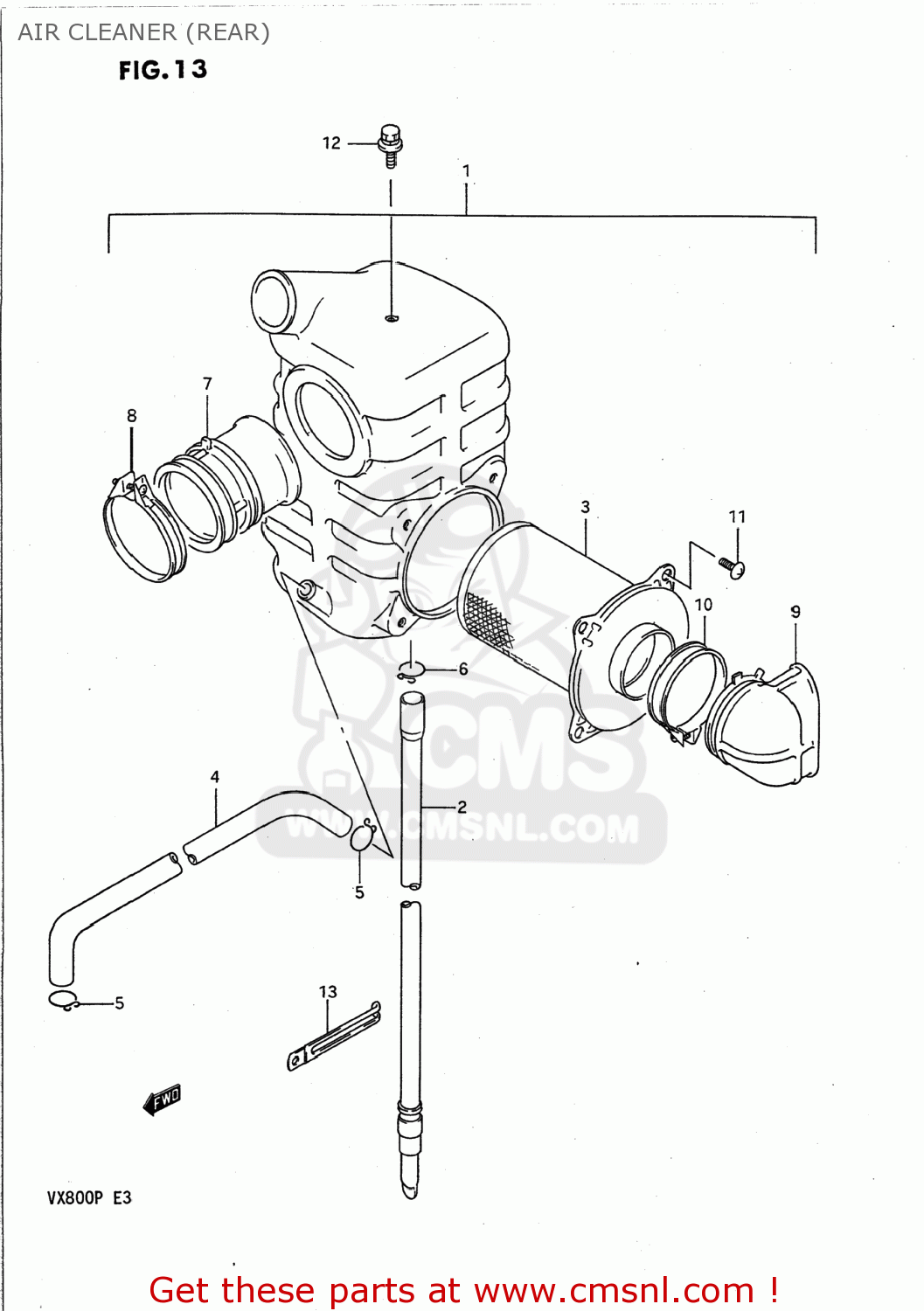

Air cleaner (rear) diagram VX800 1993 (P) USA (E03)
AIR CLEANER (REAR) VX800 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370045C60
ref: 1
CLEANER ASSEMBLY,AIR,REAR
€ 139.50
2
1387011294
ref: 2
13870-11458
DRAIN TUBE
€ 13.50
3
1378045C10
ref: 3
FILTER ASSY,AIR
€ 42.00
4
1385345C50
ref: 4
TUBE,BREATHER
€ 13.00
5
0940114301
ref: 5
CLIP
€ 2.00
6
1382400A00
ref: 6
09401-13409
CLIP
€ 2.50
7
1388145C50
ref: 7
TUBE,OUTLET
€ 20.50
8
0940258208
ref: 8
CLAMP
€ 5.50
9
1389145C00
ref: 9
TUBE,INLET
€ 21.00
10
0940256208
ref: 10
09402-56901
CLAMP
€ 3.50
11
0214205087
ref: 11
SCREW
€ 2.00
12
0117706125
ref: 12
01580-0612A
BOLT
€ 2.00
13
0940410404
ref: 13
09404-10417
CLAMP
€ 2.50
