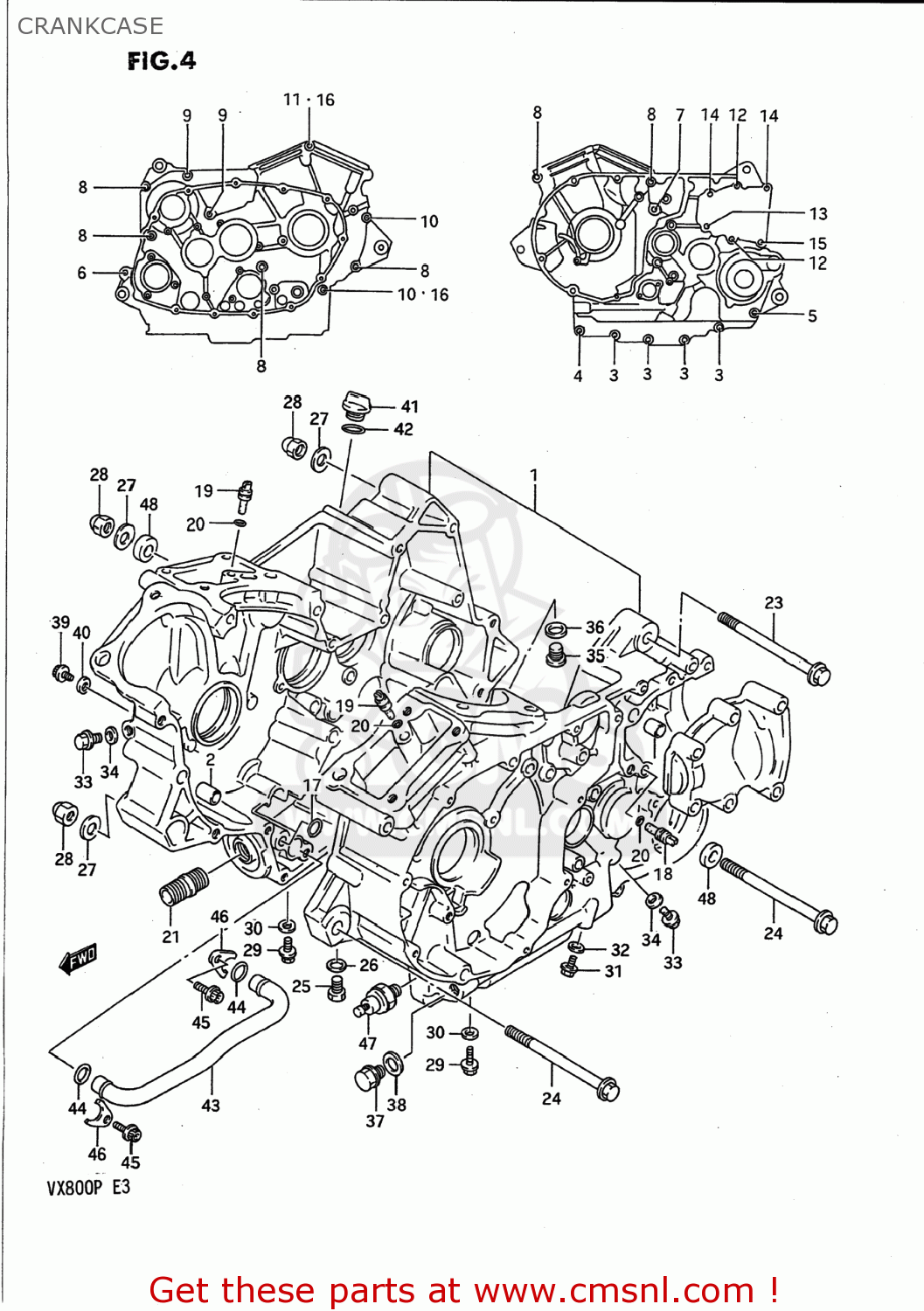

CRANKCASE

ref

part #

description

quantity

1

1130045861
ref: 1
11300-45890

CRANKCASE SET

€ 2,587.00

2

0920611005
ref: 2
09206-11017

PIN (11X20)(SUS)

€ 6.50

3

0151706408
ref: 3
01550-06407

BOLT

€ 2.50

4

0151708357
ref: 4
01550-08357

BOLT

€ 3.50

5

0151708558
ref: 5
01550-08557

BOLT 8X55

€ 3.00

6

0151708608
ref: 6
01550-08607

BOLT

€ 3.50

7

0151708758
ref: 7
01550-08757

BOLT 8X75

€ 3.50

8

0151708958
ref: 8
01550-08957

BOLT (8X95)

€ 3.50

9

0910308109
ref: 9

BOLT(8X120)

€ 3.50

10

0910308097
ref: 10

BOLT(8X105)

€ 3.00

11

0910308096
ref: 11
09103-08110

BOLT 8X160

€ 10.00

12

0151708407
ref: 12
01550-08407

BOLT 8X40

€ 3.50

13

0151708457
ref: 13
01550-08457

BOLT 8X45

€ 4.00

14

0151708558
ref: 14
01550-08557

BOLT 8X55

€ 3.00

15

0151708658
ref: 15
01550-08657

BOLT 8X65

€ 3.00

16

0916808008
ref: 16
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

17

0928013007
ref: 17
09280-12009

O-RING

€ 2.50

18

0949320014
ref: 18

JET,OIL GALLERY

€ 8.00

19

0949328010
ref: 19

JET,AIR(14)

€ 10.50

20

0928004004
ref: 20

O RING(D:1.2,ID:4)

€ 2.00

21

1659106B00
ref: 21
16591-06B01

UNION,OIL STAND

€ 6.00

22-1

0916048001
ref: 22-1

WASHER(48.1X64X1.94)

€ 18.50

22-1

0916048001
ref: 22-1

WASHER(48.1X64X1.94)

€ 18.50

22-10

0916048010
ref: 22-10

WASHER(48.1X64X2.16)

€ 17.00

22-2

0916048002
ref: 22-2

WASHER(48.1X64X1.96)

€ 17.00

22-3

0916048003
ref: 22-3

WASHER(48.1X64X1.99)

€ 17.00

22-4

0916048004
ref: 22-4

WASHER(48.1X64X2.01)

€ 17.00

22-5

0916048005
ref: 22-5

WASHER(48.1X64X2.04)

€ 17.00

22-6

0916048006
ref: 22-6

WASHER(48.1X64X2.06)

€ 17.00

22-7

0916048007
ref: 22-7

WASHER(48.1X64X2.09)

€ 17.00

22-8

0916048008
ref: 22-8

WASHER(48.1X64X2.11)

€ 17.00

22-9

0916048009
ref: 22-9

WASHER(48.1X64X2.14)

€ 17.00

23

0910310237
ref: 23

BOLT(10X130)

€ 5.50

24

0910310224
ref: 24

BOLT,ENGINE MOUNTING (10X170)

€ 7.00

25

0110712208
ref: 25
01500-1220B

BOLT

€ 3.00

26

0916812002
ref: 26

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

27

0832211104
ref: 27
08322-0110A

WASHER 10MM

€ 2.50

28

0915910052
ref: 28

NUT

€ 8.50

29

0151708128
ref: 29
01550-08127

BOLT 8X12

€ 3.50

30

0916808015
ref: 30

GASKET(8.2X14X1).6 (NAS)

€ 2.50

31

0924710008
ref: 31

PLUG(10X12)

€ 3.00

32

0916810002
ref: 32

GASKET(10X14X3.6) (NAS)

€ 2.00

33

0151706108
ref: 33
01550-06107

BOLT

€ 2.50

34

0916806023
ref: 34

GASKET(5.8X13X1.2) (NAS)

€ 2.00

35

0924816008
ref: 35

PLUG

€ 4.00

36

0916816002
ref: 36

GASKET(16X22X2) (NAS)

€ 2.00

37

0924714012
ref: 37
09247-14026

PLUG (14X12)

€ 3.50

38

0916814004
ref: 38

GASKET(14X19.2X2) (NAS)

€ 2.50

39

0712008127
ref: 39

BOLT

€ 2.50

40

0916808015
ref: 40

GASKET(8.2X14X1).6 (NAS)

€ 2.50

41

0925920017
ref: 41
09259-20007

PLUG

€ 6.50

42

0928017003
ref: 42

O RING(D:3.1,ID:16.8)

€ 2.00

43

1145138A00
ref: 43

PIPE,OIL GALLERY

€ 13.50

44

0928015008
ref: 44

O RING(D:3.1,ID:14.8)

€ 1.50

45

0712006128
ref: 45
07120-06127

BOLT

€ 3.00

46

1146138A00
ref: 46

CLAMP,OIL PIPE

€ 1.50

47-1

3782033200
ref: 47-1
37820-33D10

SWITCH ASSEMBLY

€ 29.00

47-2

3782033D00
ref: 47-2
37820-33D10

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00

48

4193245C00
ref: 48

SPACER,ENG MOUNT NO.2

€ 5.00

all assemblies
