REAR MASTER CYLINDER
VX800 1993 (P) USA (E03)

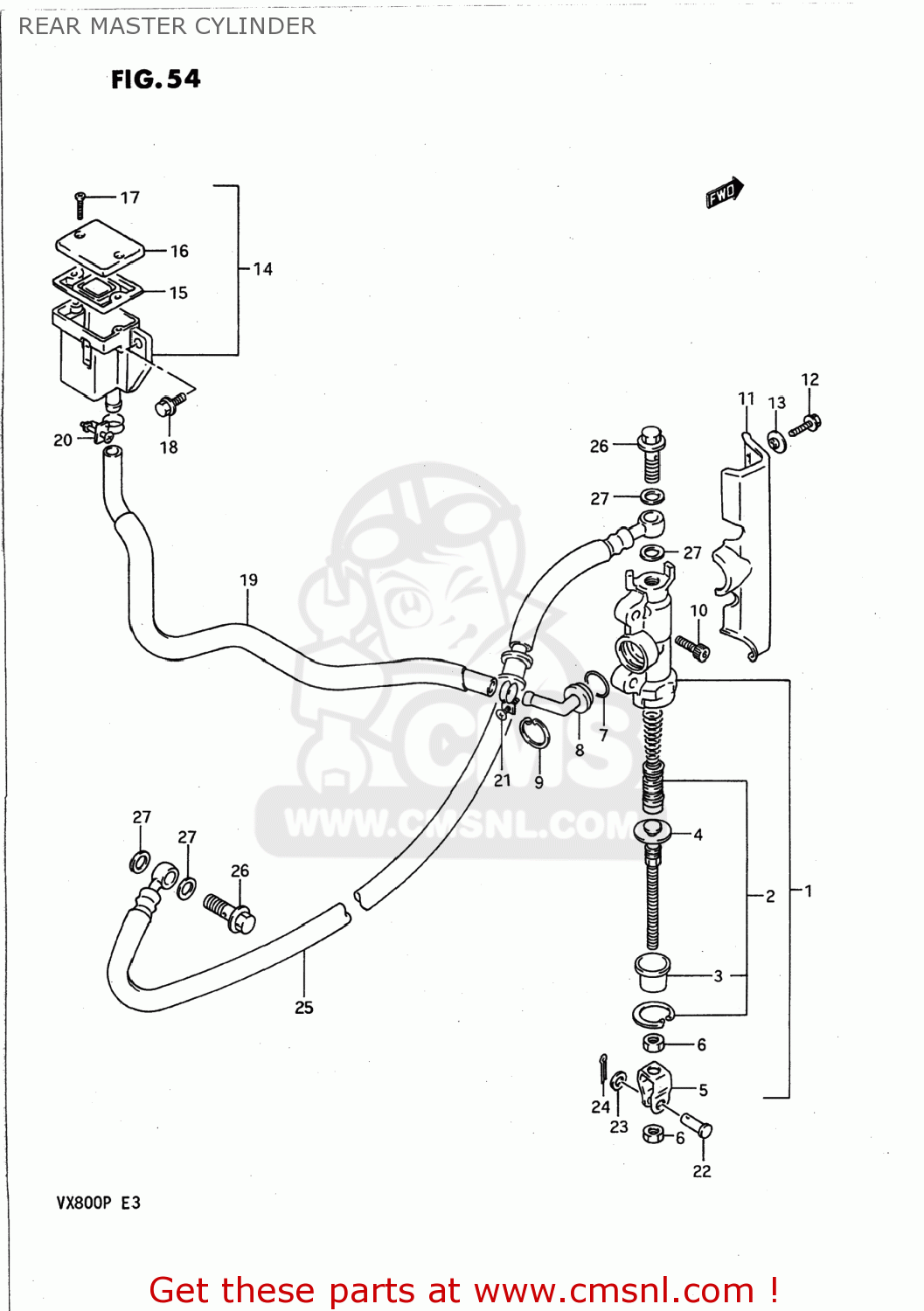

Rear master cylinder diagram VX800 1993 (P) USA (E03)
REAR MASTER CYLINDER VX800 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6960045C00
ref: 1-1
69600-45C01
CYLINDER ASSEMBLY,REAR MASTER
€ 155.50
1-2
6960045C01
ref: 1-2
CYLINDER ASSEMBLY,REAR MASTER
€ 155.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6967045C00
ref: 4
ROD,PUSH
€ 19.00
5
6969222A00
ref: 5
YOKE
€ 10.00
6
6969322A00
ref: 6
69693-05A00
NUT
€ 1.50
7
6968634200
ref: 7
O RING
€ 3.50
8
6967200B20
ref: 8
CONNECTOR
€ 5.00
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0711006205
ref: 10
07130-0620B
BOLT
€ 3.00
11
6964145C00
ref: 11
COVER,FRAME MASTER CYLINDER
€ 17.50
12
0214206125
ref: 12
02142-0612A
SCREW 6X12
€ 2.00
13
0916906060
ref: 13
WASHER
€ 2.00
14-1
6974024A00
ref: 14-1
69740-24A01
TANK ASSEMBLY,RESERVOIR
€ 99.50
14-2
6974024A01
ref: 14-2
TANK ASSY,RESERVOIR
€ 99.50
15
5966704700
ref: 15
DIAPHRAGM
€ 8.00
16-1
6966924A01
ref: 16-1
CAP
€ 12.00
16-2
5966905D00
ref: 16-2
CAP
€ 13.50
17
6968904A00
ref: 17
SCREW
€ 2.00
18
0151706128
ref: 18
01550-06127
BOLT
€ 2.50
19
6973145C00
ref: 19
HOSE,RESERVOIR TANK
€ 30.00
20
0940016302
ref: 20
09400-16304
CLAMP
€ 4.50
21
0940015302
ref: 21
CLAMP
€ 2.50
22
0920006037
ref: 22
09200-06068
PIN
€ 5.00
23
0832221067
ref: 23
08322-01067
WASHER
€ 2.00
24
0411120158
ref: 24
04111-2015A
PIN
€ 1.50
25-1
6948045C00
ref: 25-1
69480-45C10
HOSE COMP,REAR BRAKE
€ 89.50
25-2
6948045C10
ref: 25-2
HOSE,RR BRAKE
€ 89.50
26
0936010019
ref: 26
09360-10061
BOLT,UNION
€ 6.50
27
0916110009
ref: 27
WASHER(10X15X1.5)
€ 2.00
