REAR CALIPER (MODEL P)
VX800 1993 (P) USA (E03)

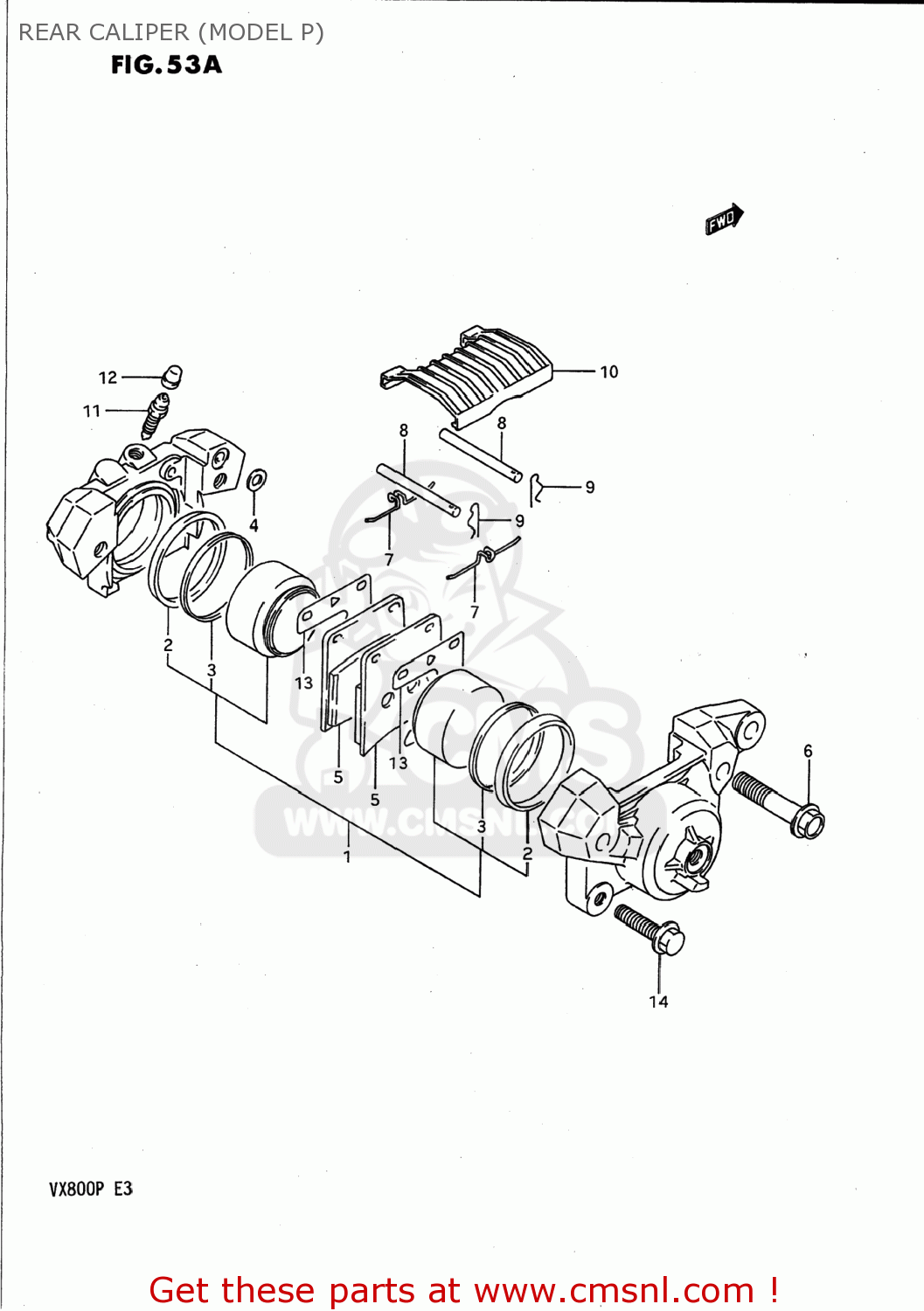

Rear caliper (model p) diagram VX800 1993 (P) USA (E03)
REAR CALIPER (MODEL P) VX800 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910045C31
ref:
CALIPER ASSEMBLY,REAR
€ 433.00
1
6910045880
ref: 1
PISTON SET
€ 152.50
2
5513666310
ref: 2
69107-38B00
SEAL,FR CALIPE
€ 8.50
3
6910845010
ref: 3
SEAL,WIPER
€ 28.50
4
6910734200
ref: 4
SEAL,JOINT
€ 12.00
5
6913045C10
ref: 5
69101-45810
PAD,BRAKE
€ 71.00
6
5914517C00
ref: 6
BOLT
€ 7.00
7
6914345001
ref: 7
SPRING
€ 8.00
8
6914145000
ref: 8
PIN,PAD
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
€ 4.50
10
5915116701
ref: 10
COVER
€ 13.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
55156-66310
CAP,BREATHER
€ 6.00
13
6915245C10
ref: 13
SHIM,PAD
€ 8.50
14
0151708304
ref: 14
01550-0830A
BOLT
€ 3.00
