STARTING MOTOR
VX800 1993 (P) USA (E03)

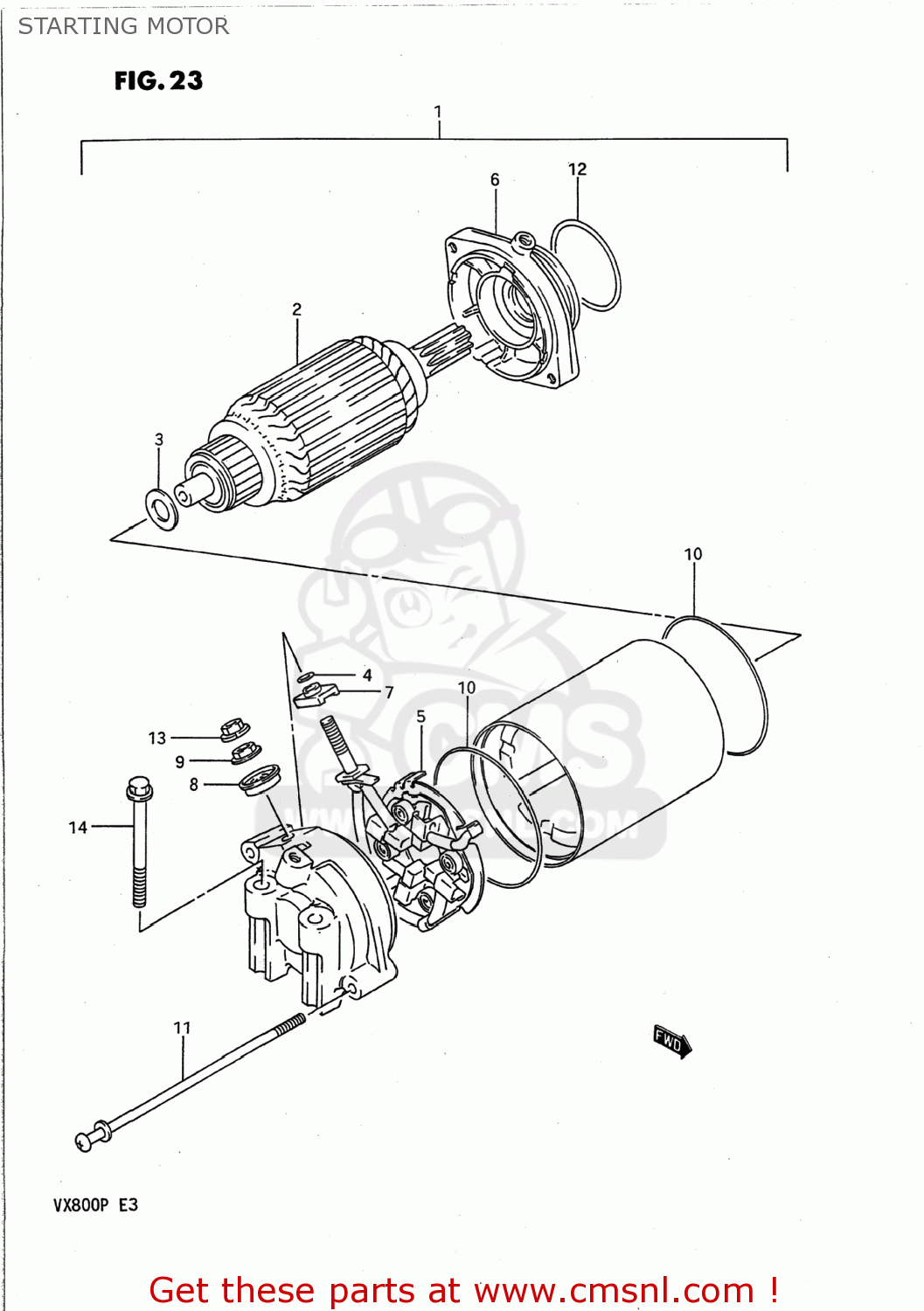

Starting motor diagram VX800 1993 (P) USA (E03)
STARTING MOTOR VX800 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110045C00
ref: 1
31100-45C01
MOTOR ASSEMBLY,STARTING
€ 472.00
2
3131045C00
ref: 2
ARMATURE
€ 127.00
3
3136147010
ref: 3
31170-43400
SHIM,ARMATURE
€ 3.50
4
3114338300
ref: 4
O RING
€ 3.50
5
3113245C00
ref: 5
HOLDER SET,BRUSH
€ 46.00
6
3115038A00
ref: 6
BRACKET SET
€ 79.50
7
3117238300
ref: 7
BUSHING
€ 4.00
8
3117388C00
ref: 8
BUSHING
€ 6.00
9-1
0831032068
ref: 9-1
08310-00067
NUT
€ 2.50
9-2
0831022067
ref: 9-2
08310-00067
NUT 6MM
€ 2.50
10
3126444110
ref: 10
O RING
€ 8.00
11
3128138A00
ref: 11
31281-24B10
BOLT
€ 5.00
12
3115638A00
ref: 12
O RING
€ 8.00
13
0836135066
ref: 13
08361-3506A
NUT
€ 2.00
14
0154706607
ref: 14
BOLT
€ 2.50
