CRANKCASE COVER
VX800U 1996 (T) (E22)

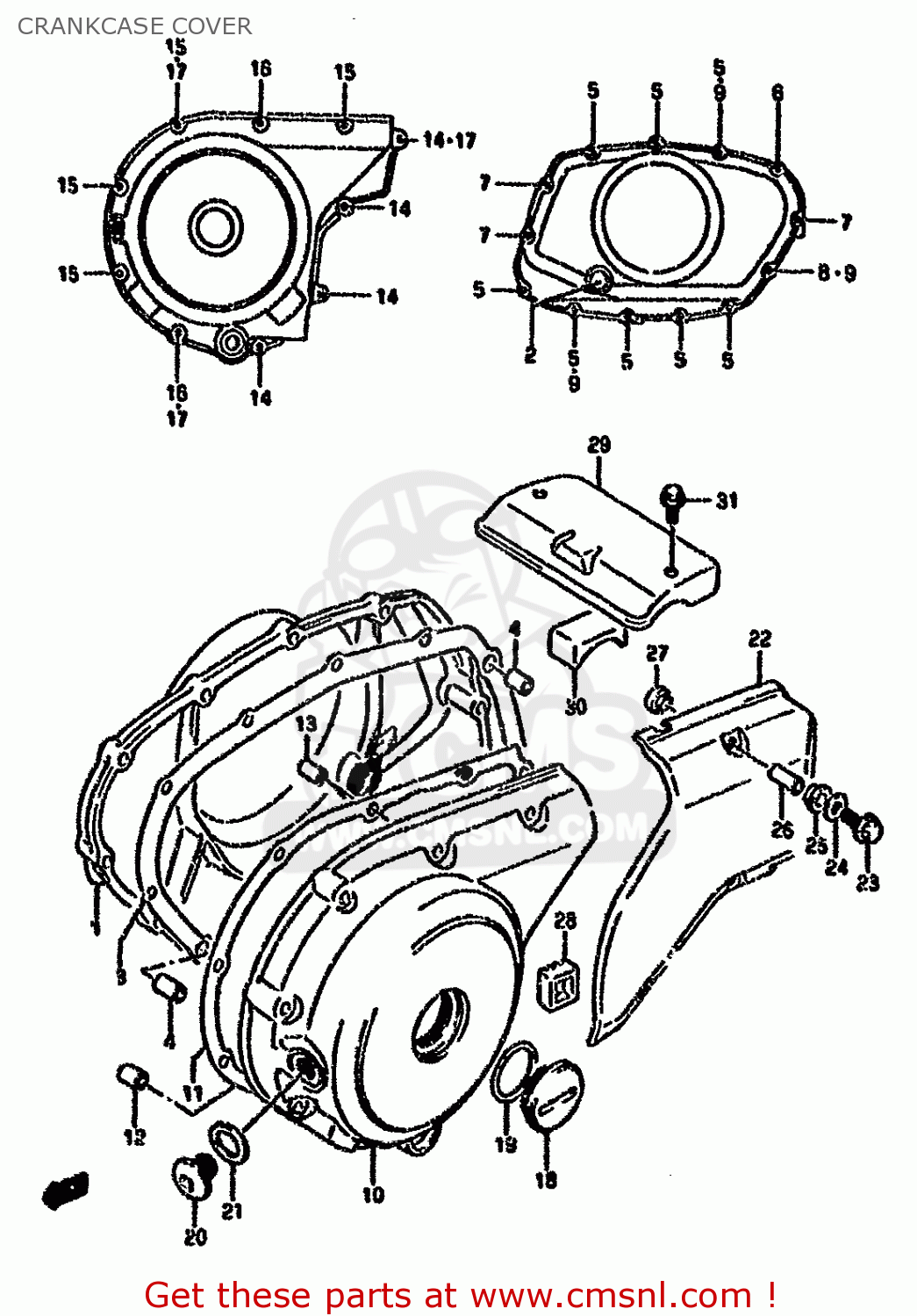

Crankcase cover diagram VX800U 1996 (T) (E22)
CRANKCASE COVER VX800U 1996 (T) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1134045C10
ref: 1
COVER,CLUTCH
€ 242.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148238A10
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 15.50
4
0421109189
ref: 4
PIN
€ 2.00
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706357
ref: 6
BOLT
€ 2.50
7
0154706457
ref: 7
BOLT
€ 2.50
8
0154706607
ref: 8
BOLT
€ 2.50
9-1
0916806023
ref: 9-1
MODEL L/M/N/P
GASKET(5.8X13X1.2) (NAS)
€ 2.00
9-2
0916806024
ref: 9-2
MODEL R/T
GASKET(5.8X11X1.2) (NAS)
€ 2.00
10
1135145C10
ref: 10
COVER,GENERATO
€ 378.50
11
1148338A00H17
ref: 11
GASKET,GENERATOR COVER (NAS)
€ 11.50
12
0920611005
ref: 12
PIN (11X20)(SUS)
€ 6.50
13
0421109189
ref: 13
PIN
€ 2.00
14
0154706307
ref: 14
BOLT
€ 2.50
15
0154706407
ref: 15
BOLT
€ 2.50
16
0154706507
ref: 16
BOLT
€ 2.50
17-1
0916806023
ref: 17-1
MODEL L/M/N/P
GASKET(5.8X13X1.2) (NAS)
€ 2.00
17-2
0916806024
ref: 17-2
MODEL R/T
GASKET(5.8X11X1.2) (NAS)
€ 2.00
18-1
0925936014
ref: 18-1
MODEL L/M/N/P
PLUG
€ 10.50
18-2
0925936018
ref: 18-2
MODEL R/T
PLUG (36X10)
€ 10.50
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
€ 2.50
20
0924814005
ref: 20
-09248-14011
PLUG,14X12
€ 5.00
21
0916814002
ref: 21
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
22
1136145C10
ref: 22
COVER,SECONDARY GEAR CASE
€ 134.00
23
0154706457
ref: 23
BOLT
€ 2.50
24
0916006097
ref: 24
WASHER
€ 2.00
25
0916109006
ref: 25
WASHER(8.7X15X2.1)
€ 2.50
26
0918006160
ref: 26
SPACER
€ 3.50
27
0916109005
ref: 27
WASHER(8.7X16X5)
€ 2.50
28
1136938A00
ref: 28
DAMPER,SECONDARY COVER
€ 7.50
29-1
3121038A00
ref: 29-1
MODEL L/M/N/P/R
COVER,STARTER MOTOR
€ 22.00
29-2
3121038A01
ref: 29-2
MODEL T
COVER,STARTER MOTOR
€ 22.00
30
3121238A00
ref: 30
DAMPER,MOTOR COVER
€ 4.50
31
0154705087
ref: 31
BOLT
€ 2.00
