TURN SIGNAL LAMP (MODEL T)
VX800U 1996 (T) (E22)

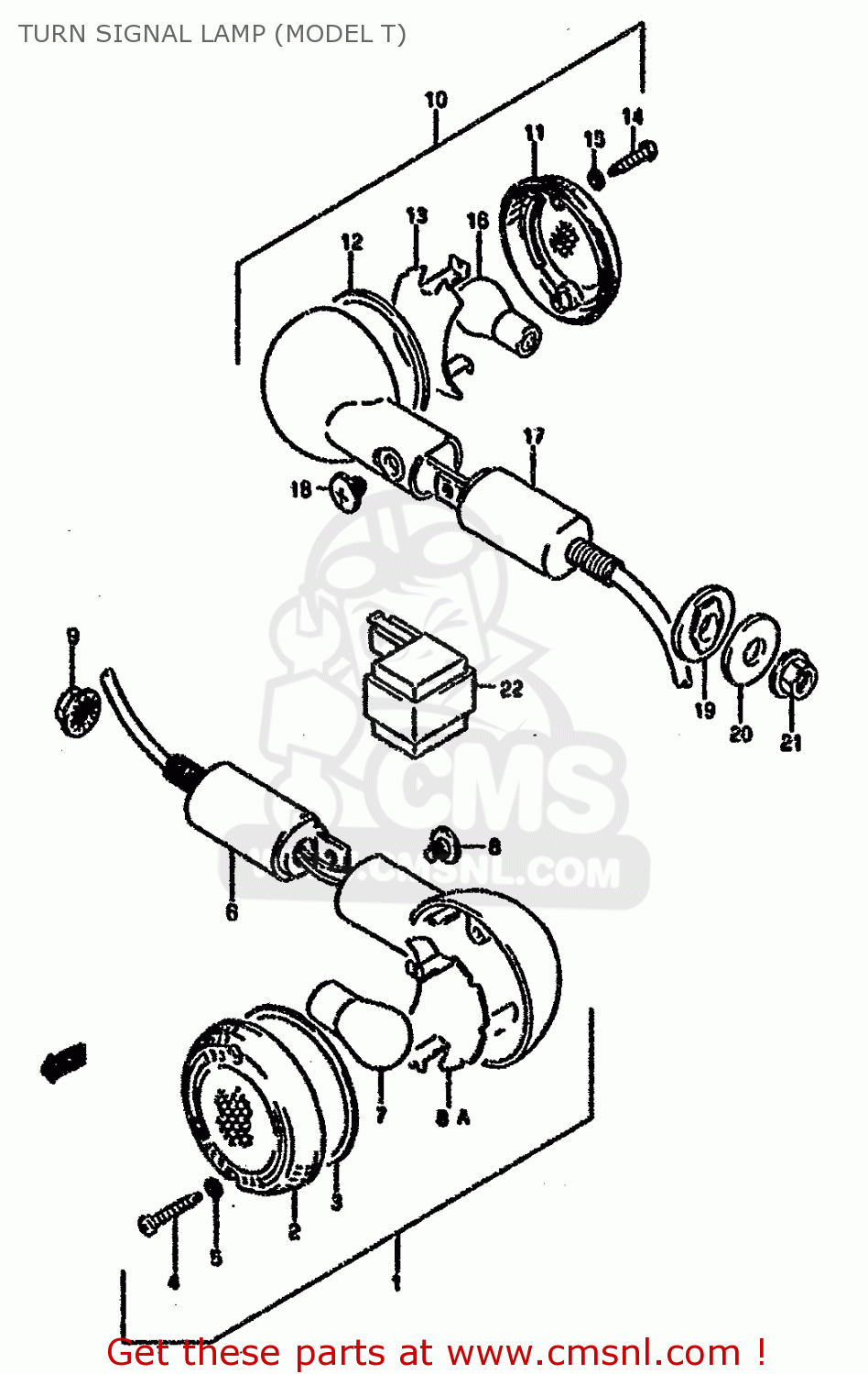

Turn signal lamp (model t) diagram VX800U 1996 (T) (E22)
TURN SIGNAL LAMP (MODEL T) VX800U 1996 (T) (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560133D30
ref: 1-1
LAMP ASSY,FR TURN SIGNAL
€ 94.50
1-2
3560133DC0
ref: 1-2
E22
LAMP ASSY,FR TURN SIGNAL,R
€ 0.00
2
3561238A01
ref: 2
LENS
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
€ 11.50
4
0321104253
ref: 4
SCREW
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6-1
3561945C10
ref: 6-1
STAY,TURNSIGNAL FR
€ 97.50
6-2
3561945C00
ref: 6-2
E22
STAY,TURN SIGNAL,FRONT
€ 97.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
3562338A01
ref: 8
SCREW
€ 5.50
8A
3562438A20
ref: 8A
REFLECTOR
€ 71.00
9
0831610103
ref: 9
NUT
€ 2.00
10
3560333D30
ref: 10
LAMP ASSY,RR TURNSIGNAL,R
€ 102.00
11
3565238A21
ref: 11
LENS
€ 16.50
12
3561338A00
ref: 12
GASKET (NAS)
€ 11.50
13
3565438A20
ref: 13
REFLECTOR
€ 83.50
14
0321104253
ref: 14
SCREW
€ 2.00
15
3562743010
ref: 15
GASKET (NAS)
€ 2.00
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17
3565945C10
ref: 17
STAY,TURNSIGNAL RR
€ 36.00
18
3562338A01
ref: 18
SCREW
€ 5.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
€ 3.00
20
0916010501
ref: 20
WASHER(10.5X30X2.3)
€ 2.50
21
0831000103
ref: 21
NUT
€ 2.00
22
3861045D01
ref: 22
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
18-1
3565945C10
ref: 18-1
STAY,TURNSIGNAL RR
€ 36.00
18-2
3565945C00
ref: 18-2
E15,E16
STAY,TURN SIGNAL,REAR
€ 27.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
€ 3.00
20
0916010094
ref: 20
WASHER(10.5X30X3.2)
€ 3.50
21-1
0831620103
ref: 21-1
MODEL L/M/N
NUT
€ 3.50
21-2
0831000107
ref: 21-2
MODEL P/R
NUT
€ 2.50
22
3861031X50
ref: 22
MODEL L/M/N-38610-31
RELAY ASSY,TURNSIGNAL
€ 54.50
23-1
3861045091
ref: 23-1
MODEL L/M/N E22
RELAY ASSY,TUR
€ 67.50
23-2
3861045D01
ref: 23-2
MODEL P/R
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
up
all assemblies
