STAND-REAR BRAKE
VX800U 1996 (T) (E22)

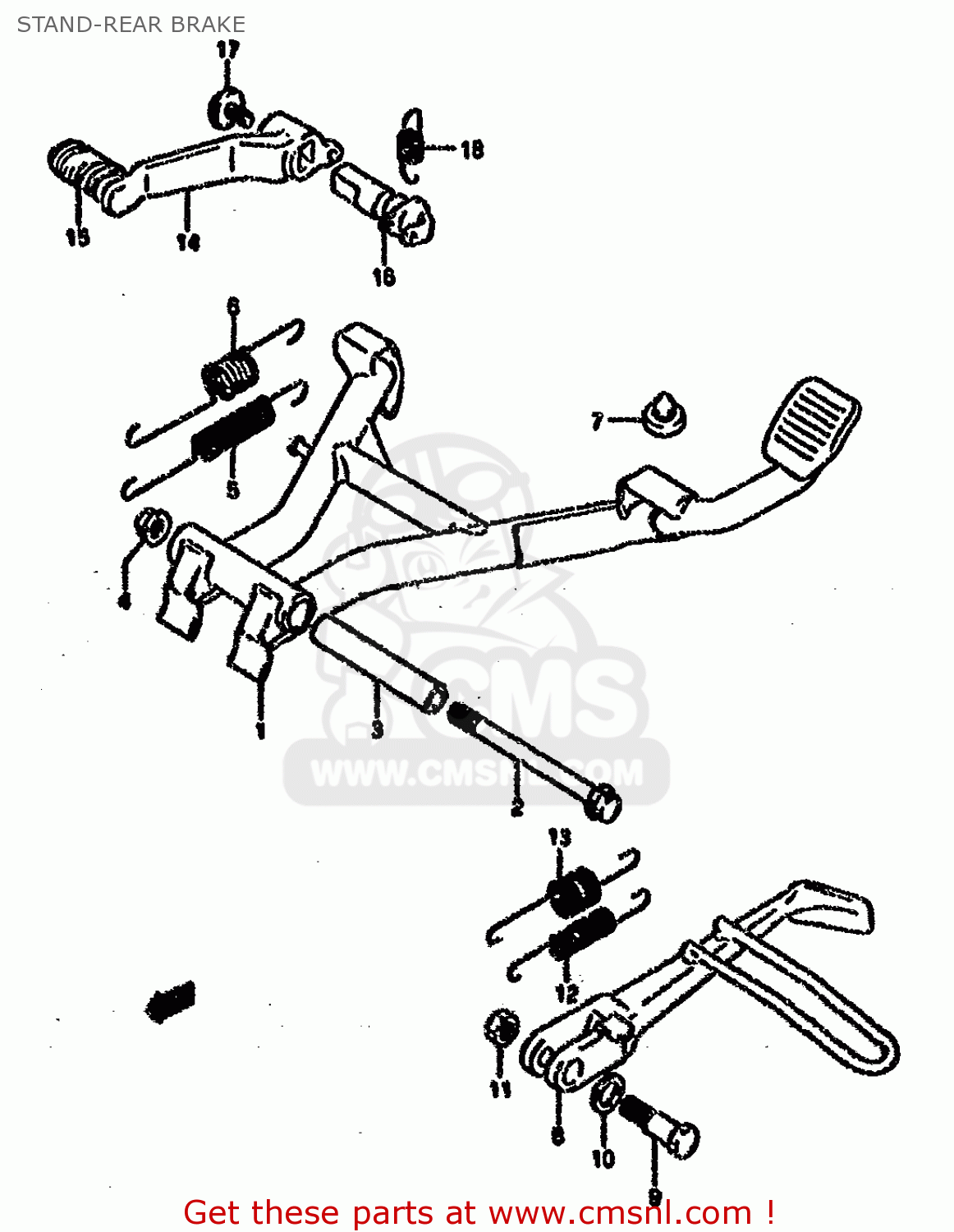

Stand-rear brake diagram VX800U 1996 (T) (E22)
STAND-REAR BRAKE VX800U 1996 (T) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4210045C00
ref: 1
STAND,CTR
€ 171.00
2
0910310063
ref: 2
BOLT(10X115)
€ 5.00
3-1
4219145C00
ref: 3-1
MODEL L/M/N
SPACER,CENTER STAND
€ 11.50
3-2
4219145C01
ref: 3-2
MODEL P/R/T
SPACER,CENTER STAND
€ 11.50
4
0915910060
ref: 4
NUT
€ 2.00
5
0944315045
ref: 5
SPRING,CENTER STAND,INNER
€ 6.00
6
0944322016
ref: 6
SPRING,CENTER STAND,OUTER
€ 6.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8-1
4231045C00
ref: 8-1
MODEL L
STAND,SIDE
€ 94.50
8-2
4231045C01
ref: 8-2
MODEL M
STAND,SIDE
€ 94.50
8-3
4231045C20
ref: 8-3
MODEL N/P/R/T
STAND COMP,PROP
€ 94.50
9
0911110036
ref: 9
BOLT(10X38)
€ 5.50
10
0822112224
ref: 10
SHIM
€ 2.00
11-1
0831022105
ref: 11-1
MODEL L/M/N/P
NUT
€ 2.00
11-2
0914010043
ref: 11-2
MODEL R/T
NUT
€ 2.00
12
0944315044
ref: 12
SPRING,PROP STAND,INNER
€ 6.50
13
0944322015
ref: 13
SPRING
€ 18.00
14
4311045C00
ref: 14
PEDAL,BRAKE
€ 69.00
15
2565249300
ref: 15
RUBBER,PEDAL
€ 5.50
16
4312045C00
ref: 16
ARM,BRAKE PEDAL
€ 39.50
17
0910608098
ref: 17
BOLT(8X14)
€ 6.50
18
0944315043
ref: 18
SPRING,BRAKE PEDAL
€ 3.00
