MAGNETO

VX800U 1996 (T) (E22)

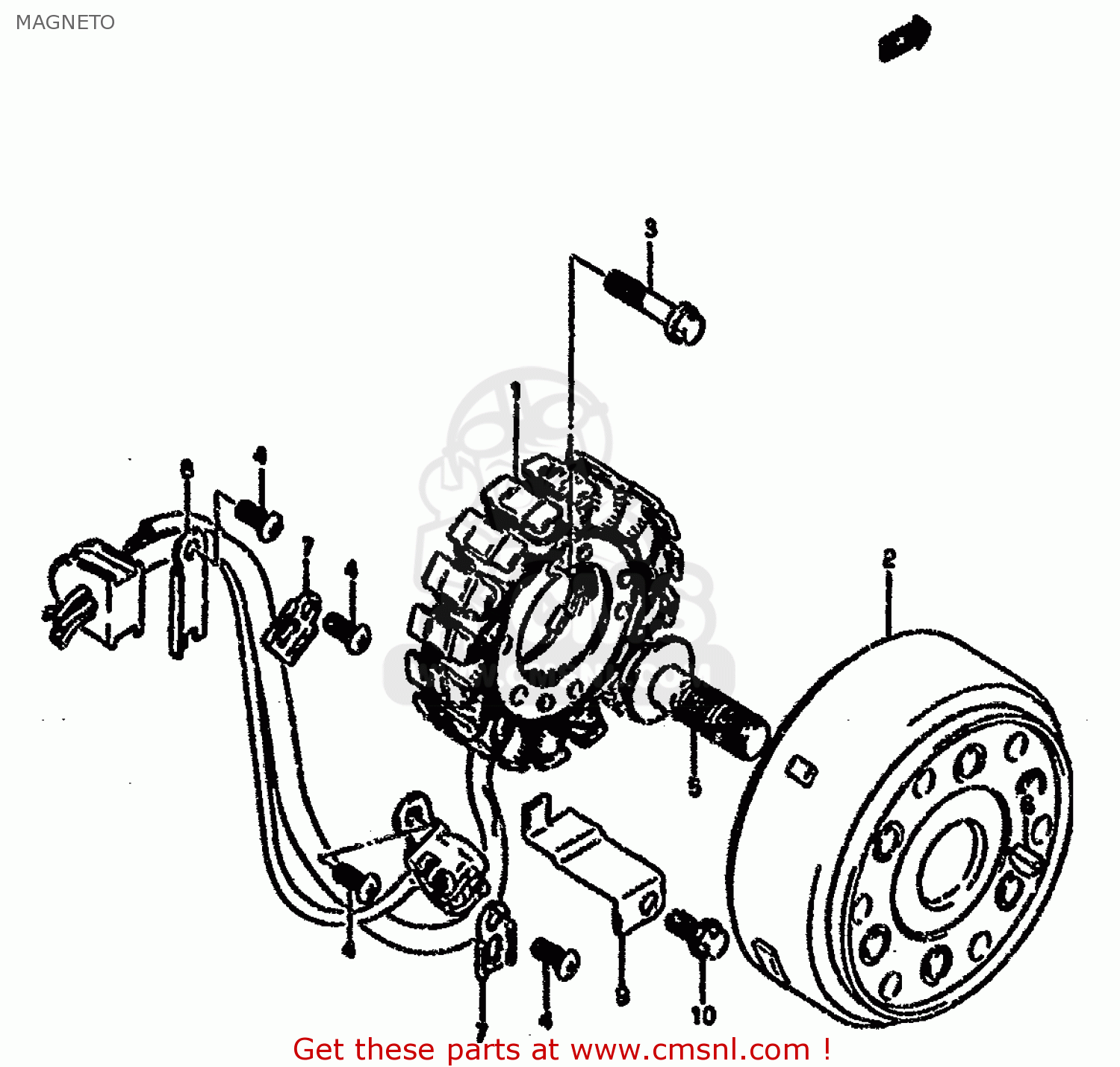

Magneto diagram VX800U 1996 (T) (E22)

MAGNETO VX800U 1996 (T) (E22)

MAGNETO VX800U 1996 (T) (E22)

prices are in EUR

ref

part #

description

quantity

1

3210145C00
ref: 1

STARTER ASSY

€ 591.00

2

3210245C00
ref: 2

ROTOR ASSY

€ 319.00

3

0154706303
ref: 3

BOLT,G/S SWITC

€ 3.00

4

0211205103
ref: 4

SCREW

€ 2.00

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942004008
ref: 6

KEY

€ 3.50

7

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

8

3237138A10
ref: 8

CLAMP NO.1,MAGNETO READ WIRE

€ 1.50

9

3237145C00
ref: 9
-32371-38A20

CLAMP,MAGNETO LEAD WIRE

€ 3.00

10-1

0151706108
ref: 10-1
MODEL L/M/N/P

BOLT

€ 2.50

10-2

0154706103
ref: 10-2
MODEL R/T

BOLT

€ 3.00
