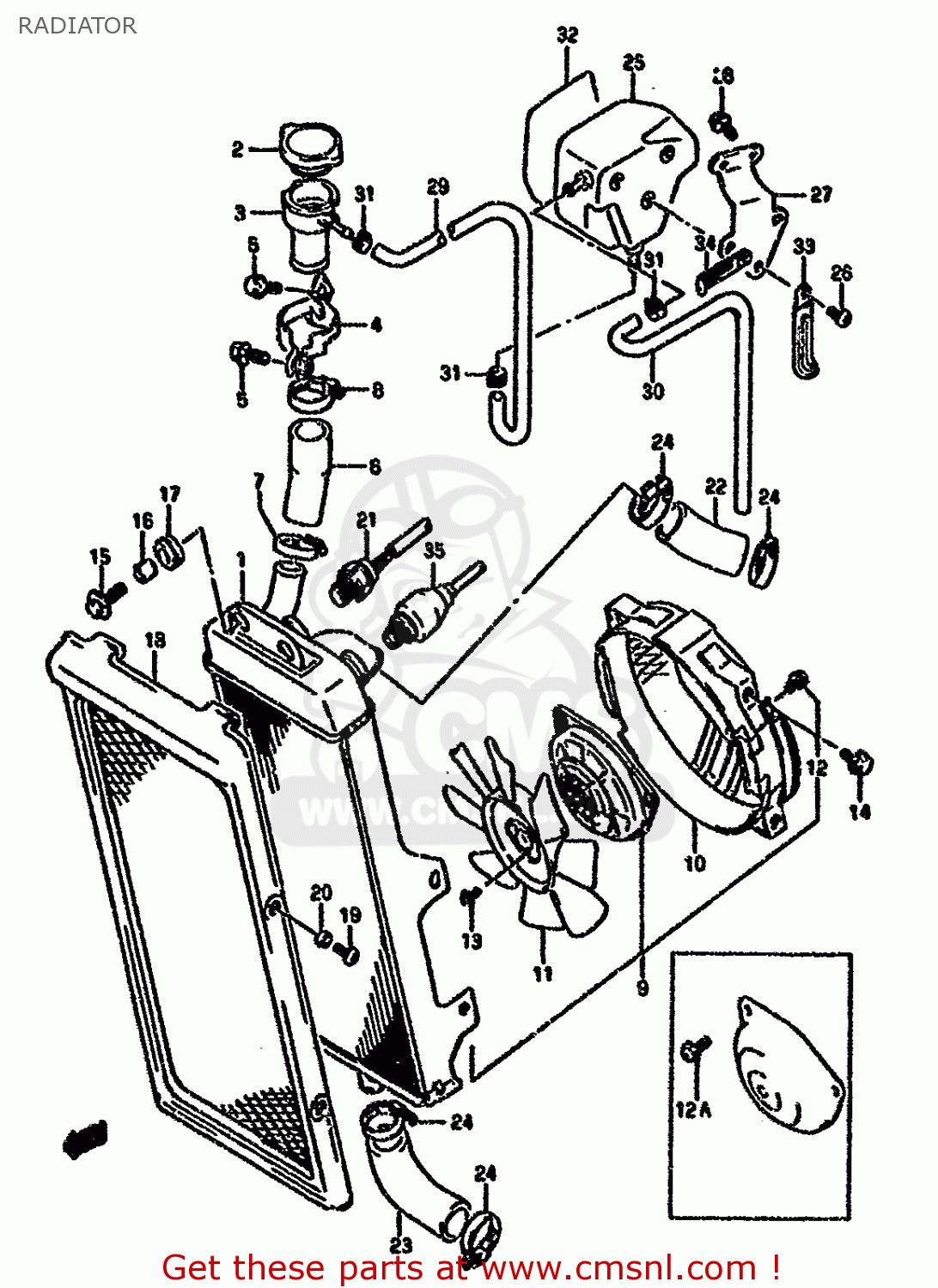

RADIATOR

ref

part #

description

quantity

1-1

1771045C00
ref: 1-1
MODEL L/M/N/P/R

RADIATOR ASSEMBLY,WATER

€ 761.00

1-2

1771045C10
ref: 1-2
MODEL T

RADIATOR ASSY,WATER

€ 761.00

2

1773012C01
ref: 2
-17730-20930

CAP,RADIATOR

€ 40.00

3

1779145C00
ref: 3

CONDUCTION,RADIATOR

€ 28.50

4

1779345C00
ref: 4

BRACKET,CONDUCTION

€ 8.50

5-1

0151706164
ref: 5-1
MODEL L/M/N/P

BOLT

€ 2.50

5-2

0155006163
ref: 5-2
MODEL R/T

BOLT

€ 2.50

6

1785945C00
ref: 6

HOSE,CONDUCTION

€ 9.00

7-1

0940230502
ref: 7-1
MODEL L/M/N/P/R

CLAMP

€ 11.50

7-2

0940232511
ref: 7-2
MODEL T

CLAMP

€ 11.50

8-1

0940232502
ref: 8-1
MODEL L/M/N/P/R

CLAMP

€ 11.50

8-2

0940238511
ref: 8-2
MODEL T

CLAMP

€ 10.50

9

1780045C01
ref: 9

FAN ASSEMBLY,RADIATOR

€ 474.50

10

1776045C01
ref: 10

SHROUD

€ 78.50

11

1782045C00
ref: 11

FAN

€ 51.50

12

0211275103
ref: 12
MODEL L/M

SCREW

€ 1.50

12A

0211215083
ref: 12A
MODEL N/P/R/T,-17801

SCREW

€ 2.00

13

0211204063
ref: 13
-17801-05A00

SCREW 4X6

€ 2.00

14-1

0155006107
ref: 14-1
MODEL L/M/N/P

BOLT

€ 2.50

14-2

0155006103
ref: 14-2
MODEL R/T

BOLT

€ 2.50

15

0911606131
ref: 15

BOLT(6X25)

€ 2.00

16

0918006030
ref: 16

SPACER (6.8X10X10)

€ 2.00

17

0932010015
ref: 17

CUSHION

€ 2.50

18

1776145C00
ref: 18

COVER COMP,RADIATOR

€ 73.50

19-1

0913906078
ref: 19-1
MODEL L

SCREW(6X10)

€ 3.00

19-2

0913906055
ref: 19-2
MODEL M/N

SCREW(6X10)

€ 2.50

19-3

0214206107
ref: 19-3
MODEL P

SCREW

€ 2.00

19-4

0214206103
ref: 19-4
MODEL R/T

SCREW 6X10

€ 2.00

20

0918006102
ref: 20

SPACER (6.4X9X3.5)

€ 1.50

21

1768045C00
ref: 21

SWITCH,RADIATOR FAN

€ 80.00

22

1785145C00
ref: 22

HOSE,RADIATOR INLET

€ 9.50

23

1785245C00
ref: 23

HOSE,RADIATOR OUT

€ 11.50

24-1

0940230502
ref: 24-1
MODEL L/M/N/P/R

CLAMP

€ 11.50

24-2

0940232511
ref: 24-2
MODEL T

CLAMP

€ 11.50

25-1

1791145C00
ref: 25-1
MODEL L/M/N/P

TANK,RESERVOIR

€ 88.50

25-2

1791145C10
ref: 25-2
MODEL R/T

TANK,RESERVOIR

€ 88.50

26

0214206083
ref: 26

SCREW

€ 1.50

27

1792045C00
ref: 27

BRACKET,RESERVOIR TANK

€ 6.00

28-1

0151706204
ref: 28-1
MODEL L/M/N/P

BOLT 6X20

€ 2.50

28-2

0155006203
ref: 28-2
MODEL R

BOLT

€ 2.50

28-3

0155006163
ref: 28-3
MODEL T

BOLT

€ 2.50

29

1798145C00
ref: 29

HOSE,RESERVOIR TANK INLET

€ 19.50

30-1

1798217E00
ref: 30-1
MODEL L/M/N/P-17982-

HOSE,RESERVOIR TANK OVERFLOW

€ 19.50

30-2

1798121E00
ref: 30-2
MODEL R/T

HOSE,RESERVOIR TANK INLET

€ 19.50

31-1

0940108407
ref: 31-1
MODEL L

CLIP

€ 3.00

31-2

0940108405
ref: 31-2
MODEL M/N/P/R

CLIP

€ 2.50

31-3

0940108411
ref: 31-3
MODEL T

CLIP

€ 3.00

32

1793045C00
ref: 32

EMBLEM,RESERVOIR TANK

€ 27.50

33-1

0940406415
ref: 33-1
MODEL L/M/N/P/R-0940

CLAMP

€ 3.00

33-2

0940406431
ref: 33-2
MODEL T

CLAMP(L:65)

€ 2.50

34-1

0940406402
ref: 34-1
MODEL L/M/N/P/R

CLAMP

€ 2.50

34-2

0940406429
ref: 34-2
MODEL T

CLAMP(L:45)

€ 2.50

35-1

3485003D00
ref: 35-1
MODEL L/M/N/P/R

SWITCH ASSY,WATER TEMP

€ 85.00

35-2

3485010D00
ref: 35-2
MODEL T

SWITCH ASSY,WATER TEMP

€ 103.00
