FOOTREST

VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

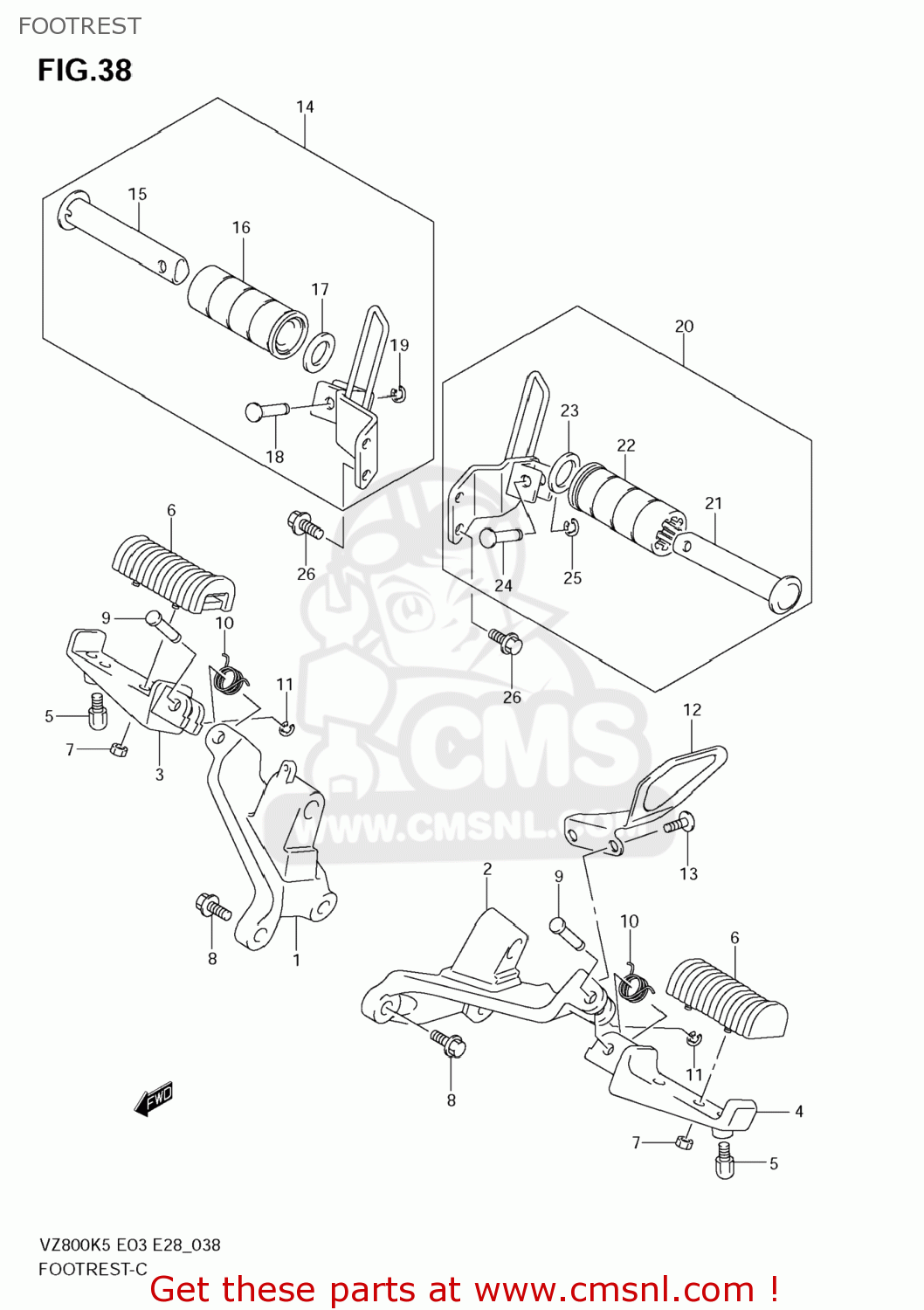

Footrest diagram VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

FOOTREST VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

FOOTREST VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4351141F00
ref: 1

BRACKET,FR FOOTREST,R

€ 100.50

2

4352141F01
ref: 2

BRACKET,FR FOOTREST,L

€ 110.50

3

4353141F00
ref: 3
43531-41F01

BAR,FRONT FOOT

€ 35.50

4

4354141F00
ref: 4
43541-41F01

BAR,FRONT FOOT

€ 35.50

5

4357607D01
ref: 5

BOLT,BANK SENSOR

€ 8.00

6

4355041F00
ref: 6

RUBBER,FR FOOTREST

€ 14.50

7

083192106B
ref: 7

NUT

€ 2.50

8

015801030B
ref: 8

BOLT

€ 3.50

9

0920808010
ref: 9

PIN(8X33.2)

€ 3.00

10

0944818022
ref: 10

SPRING

€ 3.50

11

083321106B
ref: 11

E RING

€ 2.00

12

4357139G00
ref: 12

GUARD,FR FOOTREST

€ 60.50

13

0913906108
ref: 13

SCREW(6X12)

€ 3.00

14-1

4360039G00
ref: 14-1

FOOTREST ASSY,PILLION,R

€ 85.00

14-2

4360041F50
ref: 14-2

FOOTREST ASSY,PILLION,R

€ 54.50

15

4361039G00
ref: 15

BAR,PILLION FOOTREST

€ 13.00

16

4361239G00
ref: 16

RUBBER,PILLION FOOTREST

€ 5.00

17

0916019024
ref: 17

WASHER(19.5X32X2)

€ 2.00

18

4363625D00
ref: 18

PIN,PILLION FOOTREST

€ 5.50

19

083321104B
ref: 19

E RING

€ 2.00

20-1

4370039G00
ref: 20-1

FOOTREST ASSY,PILLION,L

€ 85.00

20-2

4370041F50
ref: 20-2

FOOTREST ASSY,PILLION,L

€ 54.50

21

4361039G00
ref: 21

BAR,PILLION FOOTREST

€ 13.00

22

4361239G00
ref: 22

RUBBER,PILLION FOOTREST

€ 5.00

23

0916019024
ref: 23

WASHER(19.5X32X2)

€ 2.00

24

4363625D00
ref: 24

PIN,PILLION FOOTREST

€ 5.50

25

083321104B
ref: 25

E RING

€ 2.00

26

0910308412
ref: 26

BOLT(8X16)

€ 2.50
