Buy Suzuki VZ Parts Online


FRONT CYLINDER HEAD (MODEL K9)

VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

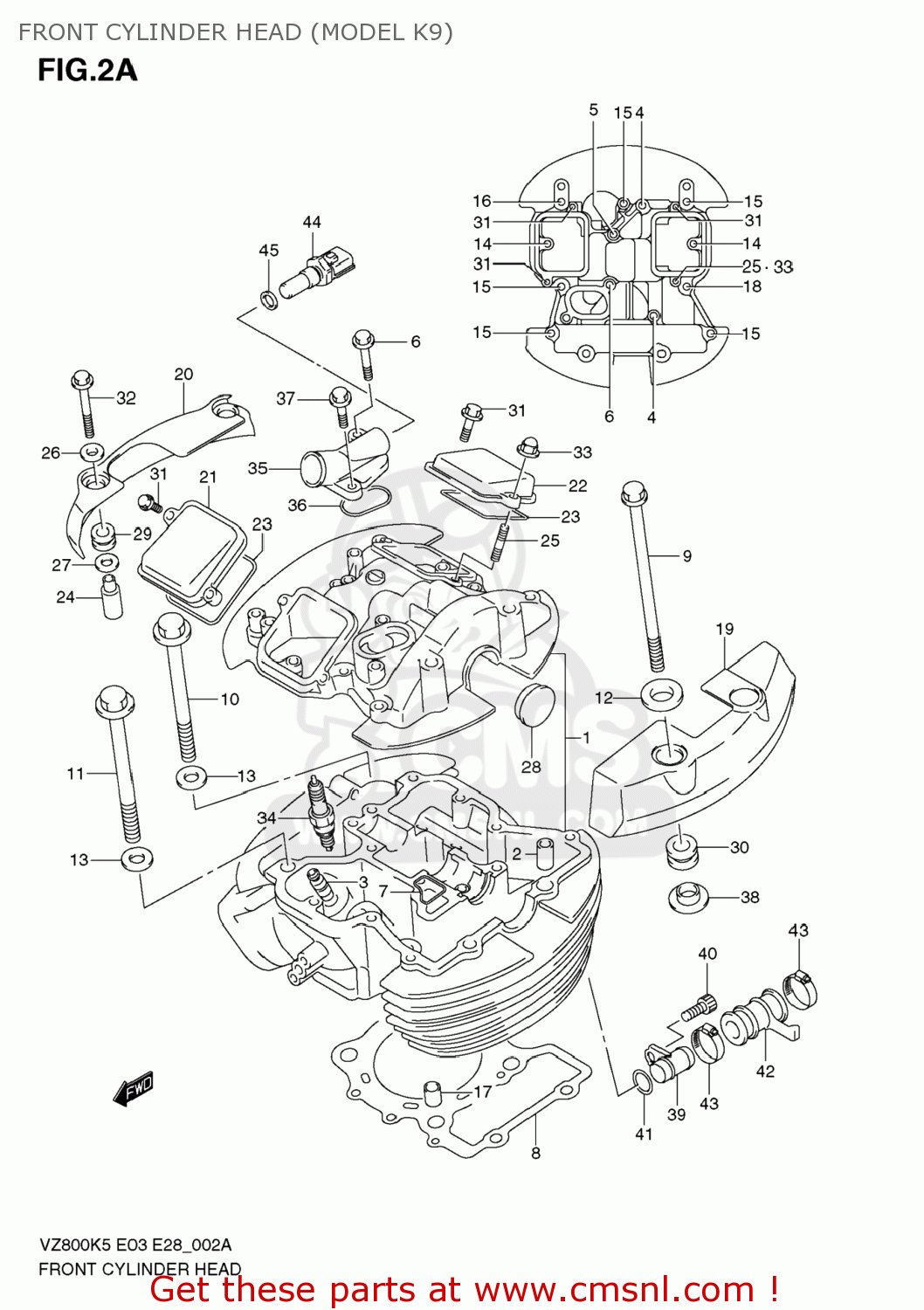

Front cylinder head (model k9) diagram VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT CYLINDER HEAD (MODEL K9) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
FRONT CYLINDER HEAD (MODEL K9) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
FRONT CYLINDER HEAD (MODEL K9) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
1110139G10
ref: 1-1
HEAD ASSY,CYLINDER FR
€ 720.00
1-2
1110139G00
ref: 1-2
HEAD ASSY,CYLINDER FR
1110139G00
€ 1,344.50
2
0920611004
ref: 2
PIN(8.4X11X14)
0920611004
€ 6.00
3
1111541F70
ref: 3
GUIDE,VALVE(OS:0.3)
1111541F70
€ 18.50
4
0910306304
ref: 4
BOLT(6X50)
0910306304
€ 1.50
5
0910306305
ref: 5
BOLT(6X55)
€ 1.50
6
071300680B
ref: 6
BOLT
071300680B
€ 3.00
7
1112338A00
ref: 7
GASKET,CYLINDER HEAD WATER (NAS)
1112338A00
€ 2.50
8
1114141F00
ref: 8
GASKET,CYLINDER HEAD FR (NAS)
1114141F00
€ 27.50
9
0910308370
ref: 9
BOLT(8X250)
0910308370
€ 11.00
10
0910310133
ref: 10
BOLT(10X155)
0910310133
€ 7.50
11
0910310134
ref: 11
BOLT(10X165)
0910310134
€ 7.50
12
0916008130
ref: 12
WASHER(8.5X24X1.6)
0916008130
€ 2.00
13
0916010039
ref: 13
WASHER(10.5X22X2.3)
0916010039
€ 2.50
14
015500625A
ref: 14
BOLT
015500625A
€ 2.50
15
015500630A
ref: 15
BOLT
015500630A
€ 2.50
16
015500640A
ref: 16
BOLT
015500640A
€ 2.50
17
0421113189
ref: 17
PIN
0421113189
€ 2.50
18
071200630B
ref: 18
BOLT
071200630B
€ 3.00
19
1117141FA0
ref: 19
CAP,CYLINDER HEAD COVER FR,L
€ 112.00
20
1117241F00
ref: 20
CAP,CYLINDER HEAD COVER FR
1117241F00
€ 113.50
21
1117538A11
ref: 21
CAP,INSPECTION INTAKE
1117538A11
€ 14.50
22
1117638A11
ref: 22
CAP,INSPECTION EXHAUST
1117638A11
€ 14.50
23
1117738A00
ref: 23
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
24
1117910F10
ref: 24
SPACER,CYL HEAD COVER CAP NO.2
1117910F10
€ 8.00
25
0910806102
ref: 25
BOLT,STUD
€ 3.00
26
0916006084
ref: 26
WASHER(6.5X18X1.6)
0916006084
€ 2.00
27
0916009016
ref: 27
WASHER(9.5X20X1)
0916009016
€ 2.00
28
0924130004
ref: 28
PLUG(OD:30)
0924130004
€ 6.50
29
0932009016
ref: 29
CUSHION
0932009016
€ 2.50
30
0932013015
ref: 30
CUSHION
0932013015
€ 3.00
31
015470620A
ref: 31
BOLT
015470620A
€ 2.50
32
0154706557
ref: 32
BOLT
0154706557
€ 2.50
33
0915906093
ref: 33
NUT
€ 2.00
34-1
0948200354
ref: 34-1
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
34-10
0948200399
ref: 34-10
PLUG,SPARK(DR8EA)
0948200399
€ 3.50
34-11
0948200400
ref: 34-11
PLUG,SPARK(DR9EA)
0948200400
€ 6.50
34-2
0948200398
ref: 34-2
PLUG,SPARK(DR7EA)
0948200398
€ 5.50
34-3
0948200222
ref: 34-3
PLUG,SPARK(X22ESR-U)
€ 4.00
34-4
0948200330
ref: 34-4
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
34-5
0948200331
ref: 34-5
PLUG,SPARK(X27EPR-U9)
€ 4.00
34-6
0948200334
ref: 34-6
PLUG,SPARK(DPR8EA-9)
€ 4.00
34-7
0948200335
ref: 34-7
PLUG,SPARK(X24EPR-U9)
€ 4.00
34-8
0948200223
ref: 34-8
PLUG,SPARK(X24ESR-U)
€ 3.50
34-9
0948200224
ref: 34-9
PLUG,SPARK(X27ESR-U)
0948200224
€ 9.50
35
1118141F00
ref: 35
UNION,CYL HEAD OUTLET
€ 31.50
36
1118238A00
ref: 36
GASKET,WATER OUTLET UNION (NAS)
1118238A00
€ 2.00
37
071300620B
ref: 37
BOLT
071300620B
€ 3.00
38
0930108007
ref: 38
BUSH
0930108007
€ 4.00
39
1789141F10
ref: 39
UNION,CYL HEAD JOINT
1789141F10
€ 11.50
40
071300612B
ref: 40
BOLT
071300612B
€ 3.00
41
0928016005
ref: 41
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
42
1785441F01
ref: 42
HOSE,CYLINDER HEAD JOINT
1785441F01
€ 12.00
43
0940228513
ref: 43
CLAMP
0940228513
€ 6.50
44
1365057F00
ref: 44
SENSOR,WATER TEMP
1365057F00
€ 35.50
45
0916812017
ref: 45
GASKET(12X17X1) (NAS)
0916812017
€ 2.00
