Buy Suzuki VZ Parts Online


REAR WHEEL

VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

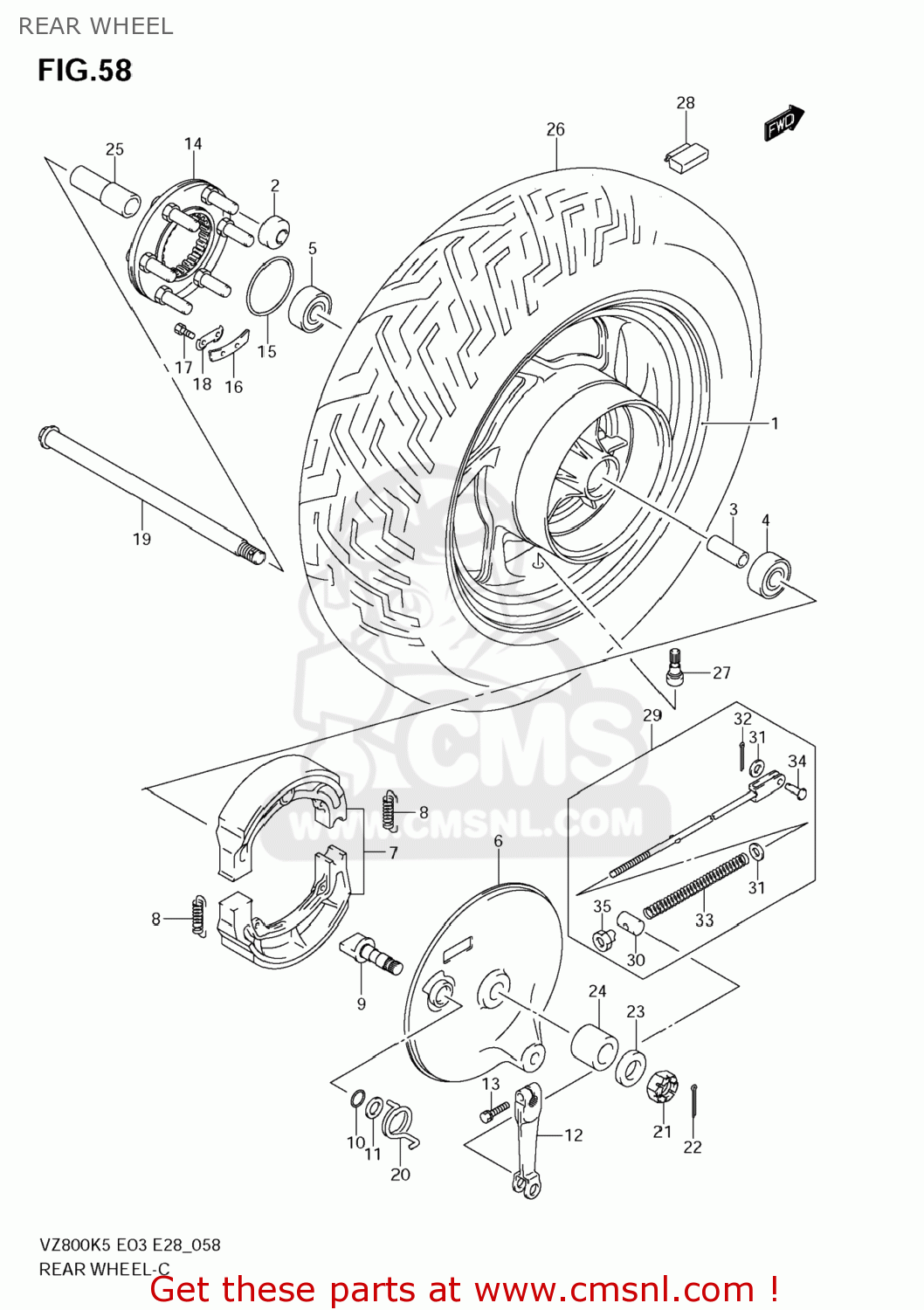

Rear wheel diagram VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

REAR WHEEL VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
REAR WHEEL VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
REAR WHEEL VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
6415039G00019
ref: 1
WHEEL,RR(15M/CXMT4.00)
€ 943.00
2
0931912019
ref: 2
BUSH
0931912019
€ 10.50
3
0918017112
ref: 3
SPACER(17.3X25X99)
0918017112
€ 20.50
4
0812363037
ref: 4
BEARING
0812363037
€ 16.00
5
0814363037
ref: 5
BEARING
0814363037
€ 23.00
6
6421038A50
ref: 6
PANEL, REAR BRAKE ANCHOR
6421038A50
€ 169.50
7
6440038820
ref: 7
SHOE SET,BRAKE (NAS)
6440038820
€ 61.00
8
5542030000
ref: 8
SPRING,BRAKE SHOE
5542030000
€ 3.50
9
6444138A20
ref: 9
CAM,RR BRAKE
6444138A20
€ 21.50
10
0928015003
ref: 10
O RING(D:2.4,ID:14.8)
0928015003
€ 2.00
11
0916015048
ref: 11
WASHER(15.5X24X1.6)
0916015048
€ 2.50
12
6445138A01
ref: 12
LEVER,RR BRAKE CAM
6445138A01
€ 33.00
13
0157006257
ref: 13
BOLT
0157006257
€ 2.50
14
6468045113
ref: 14
JOINT ASSY,RR HUB DRIVEN
6468045113
€ 181.50
15
0928065003
ref: 15
O RING(D:2.1,ID:65)
0928065003
€ 2.50
16
6467745110
ref: 16
WASHER,THRUST(T:1.6)
6467745110
€ 2.50
17
0911906049
ref: 17
BOLT(6X16)
0911906049
€ 1.50
18
0916906030
ref: 18
WASHER
0916906030
€ 2.00
19-1
6471119F10
ref: 19-1
AXLE,RR
€ 71.00
19-2
6471119F00
ref: 19-2
AXLE,RR
6471119F00
€ 51.00
20
0944833006
ref: 20
SPRING
0944833006
€ 11.00
21-1
0914116007
ref: 21-1
NUT
€ 8.00
21-2
083192116A
ref: 21-2
NUT
083192116A
€ 5.00
22-1
0411140308
ref: 22-1
04111-4030A
PIN,COTTER
0411140308
€ 1.50
22-2
041114030A
ref: 22-2
PIN
041114030A
€ 1.50
23
0916017050
ref: 23
WASHER(17X30X3.2)
0916017050
€ 2.00
24
6474141F00
ref: 24
SPACER,RR AXLE,R
€ 9.00
25
6477234201
ref: 25
SPACER,RR AXLE,L
6477234201
€ 14.50
26
6511041F10
ref: 26
TIRE,RR(170/80 15M/C 77H)
€ 164.50
27
4313024A00
ref: 27
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
28-1
4322273H10
ref: 28-1
WEIGHT,WHEEL BALANCE 10G
4322273H10
€ 4.00
28-2
4322473H10
ref: 28-2
WEIGHT,WHEEL BALANCE 20G
4322473H10
€ 5.00
28-3
4322673H10
ref: 28-3
WEIGHT,WHEEL BALANCE 30G
€ 6.00
29
4330041F00
ref: 29
ROD ASSY,RR BRAKE
4330041F00
€ 22.00
30
0920913018
ref: 30
PIN(13X18)
0920913018
€ 3.50
31-1
0832201063
ref: 31-1
08322-0106B
WASHER
0832201063
€ 2.00
31-2
083220106B
ref: 31-2
WASHER
083220106B
€ 2.00
32-1
0411120158
ref: 32-1
04111-2015A
PIN
0411120158
€ 1.50
32-2
041112015A
ref: 32-2
PIN
041112015A
€ 1.50
33
0944009004
ref: 33
SPRING
0944009004
€ 2.00
34
0920006013
ref: 34
PIN(L:13.5)
0920006013
€ 2.00
35
0915006010
ref: 35
NUT
0915006010
€ 3.50
