TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9)

VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

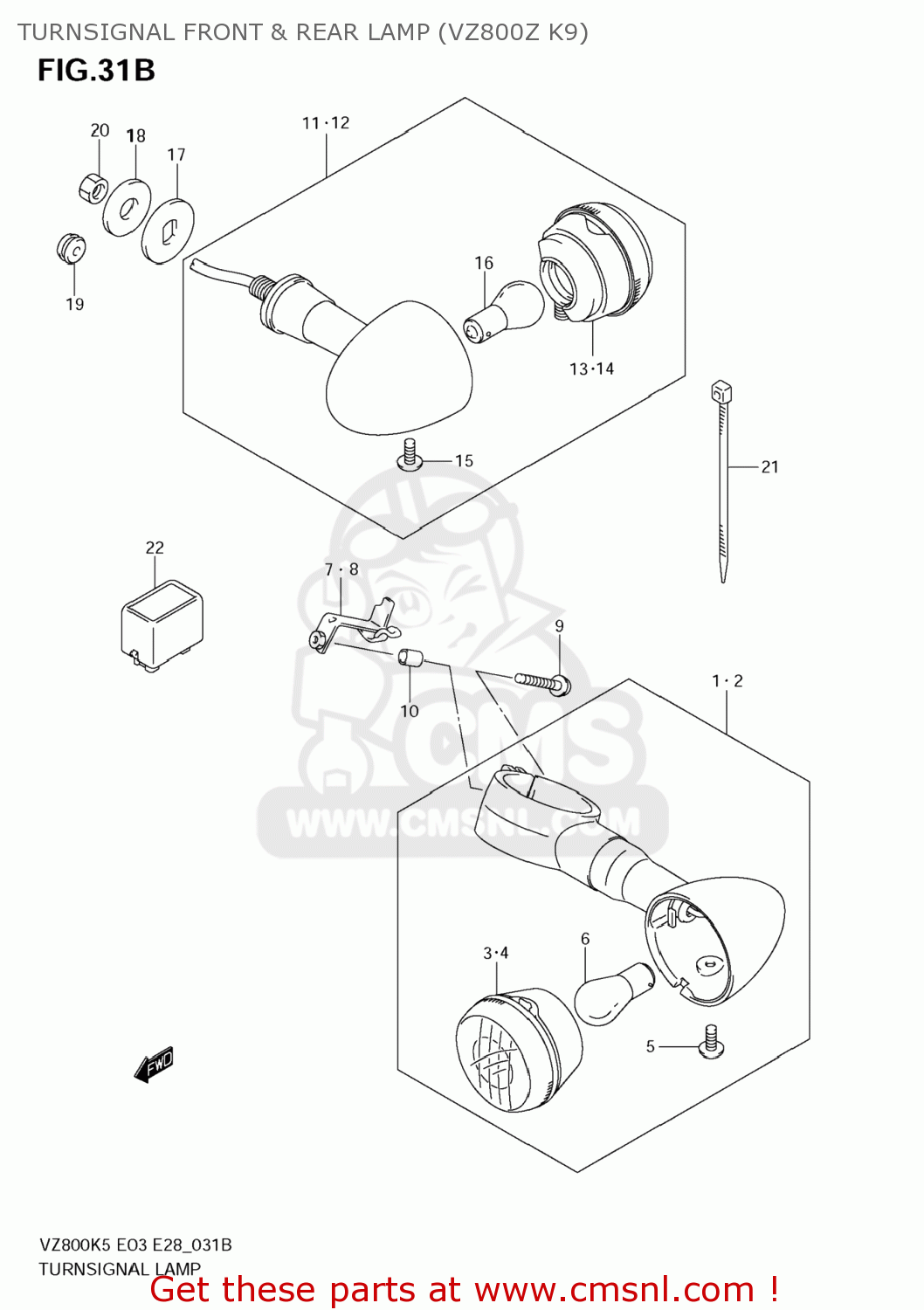

Turnsignal front & rear lamp (vz800z k9) diagram VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3560148EB0
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 0.00

2

3560248EB0
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 0.00

3

3561048EB0
ref: 3

LENS

€ 27.00

4

3563048EB0
ref: 4

LENS

€ 27.00

5

3562338AA0
ref: 5

SCREW(4X10)

€ 4.00

6

0947112224
ref: 6

BULB(12V23/8W)

€ 21.00

7

3567139G00
ref: 7

BRACKET,FR TURNSIGNAL,R

€ 7.00

8

3568139G00
ref: 8

BRACKET,FR TURNSIGNAL,L

€ 7.00

9

0913606082
ref: 9

SCREW(6X25)

€ 3.00

10

0918006121
ref: 10

SPACER(6.4X9.2X12)

€ 2.50

11

3560338AF0
ref: 11

LAMP ASSY,RR TURNSIGNAL,R

€ 74.00

12

3560438AF0
ref: 12

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

13

3563038AF0
ref: 13

LENS

€ 24.50

14

3561038AF0
ref: 14

LENS

€ 24.50

15

3562338AA0
ref: 15

SCREW(4X10)

€ 4.00

16

0947112186
ref: 16

BULB(12V21W,AMBER)

€ 2.50

17

3569517C00
ref: 17

SPACER,RR TURNSIGNAL

€ 3.00

18

0916010501
ref: 18

WASHER(10.5X30X2.3)

€ 2.50

19

0930805015
ref: 19

GROMMET

€ 4.50

20

083100010B
ref: 20

NUT

€ 2.00

21

0940714407
ref: 21

CLAMP(L:145)

€ 4.00

22

3861003F00
ref: 22

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
