Buy Suzuki VZ Parts Online


TURNSIGNAL FRONT & REAR LAMP (SEE NOTE)

VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

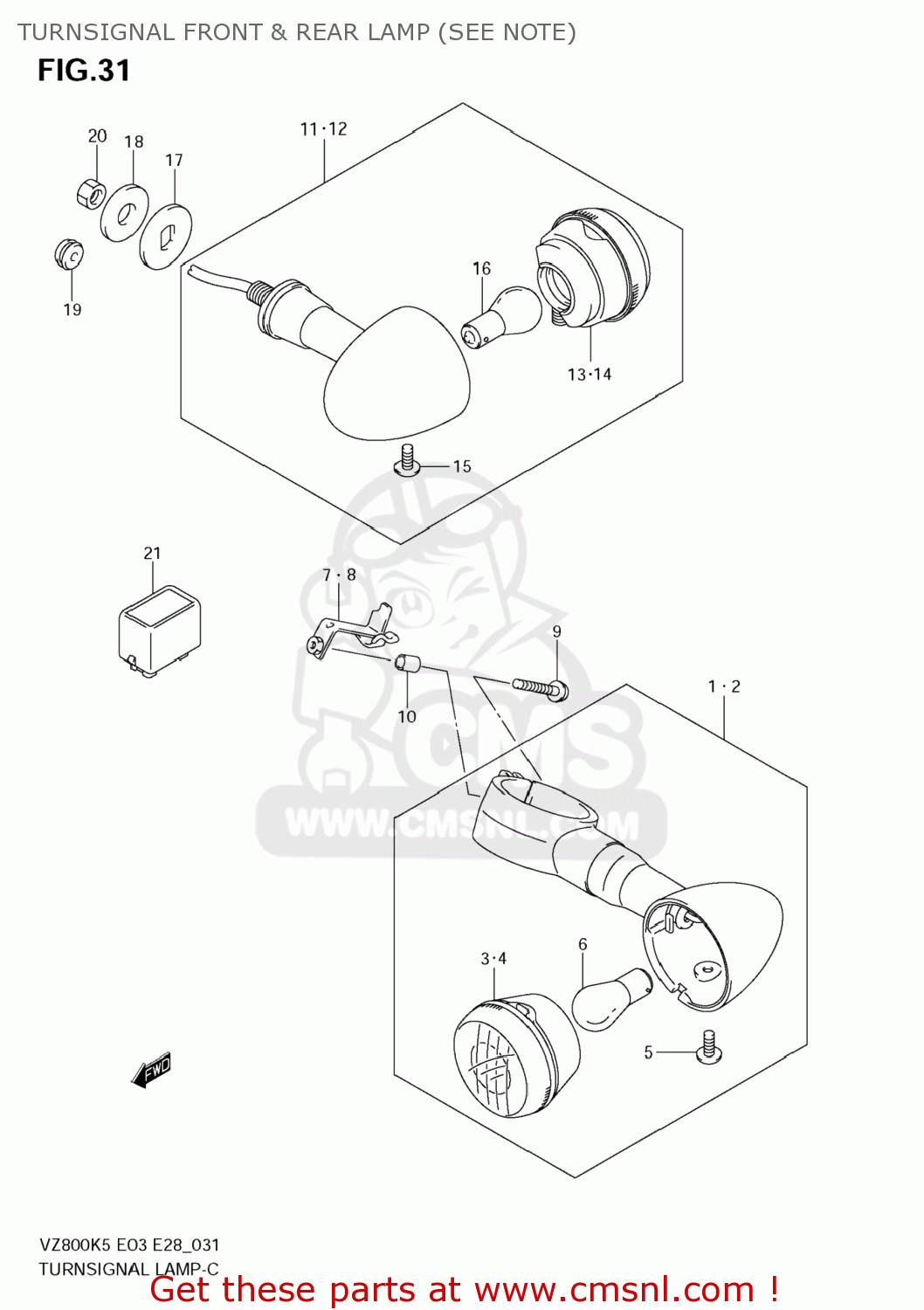

Turnsignal front & rear lamp (see note) diagram VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (SEE NOTE) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
TURNSIGNAL FRONT & REAR LAMP (SEE NOTE) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
TURNSIGNAL FRONT & REAR LAMP (SEE NOTE) VZ800 BOULEVARD M50 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
3560148E60
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
€ 118.00
1-2
3560148E70
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,R
€ 97.00
1-3
3560148EB0
ref: 1-3
LAMP ASSY,FR TURN SIGNAL,R
€ 0.00
2-1
3560248E60
ref: 2-1
LAMP ASSY,FR TURN SIGNAL,L
€ 109.00
2-2
3560248E70
ref: 2-2
LAMP ASSY,FR TURN SIGNAL,L
€ 0.00
2-3
3560248EB0
ref: 2-3
LAMP ASSY,FR TURN SIGNAL,L
€ 0.00
3-1
3561038AA0
ref: 3-1
LENS
3561038AA0
€ 19.50
3-1
3561038AA0
ref: 3-1
LENS
3561038AA0
€ 19.50
3-2
3561048EB0
ref: 3-2
LENS
€ 27.00
3-2
3561048EB0
ref: 3-2
LENS
€ 27.00
4-1
3563038AA0
ref: 4-1
LENS
3563038AA0
€ 19.50
4-1
3563038AA0
ref: 4-1
LENS
3563038AA0
€ 19.50
4-2
3563048EB0
ref: 4-2
LENS
€ 27.00
4-2
3563048EB0
ref: 4-2
LENS
€ 27.00
5
3562338AA0
ref: 5
SCREW(4X10)
3562338AA0
€ 4.00
6-1
0947112083
ref: 6-1
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
6-2
0947112224
ref: 6-2
BULB(12V23/8W)
0947112224
€ 21.00
7
3567139G00
ref: 7
BRACKET,FR TURNSIGNAL,R
3567139G00
€ 7.00
8
3568139G00
ref: 8
BRACKET,FR TURNSIGNAL,L
€ 7.00
9
0913606082
ref: 9
SCREW(6X25)
0913606082
€ 3.00
10
0918006121
ref: 10
SPACER(6.4X9.2X12)
0918006121
€ 2.50
11-1
3560338AE0
ref: 11-1
LAMP ASSY,RR TURNSIGNAL,R
3560338AE0
€ 99.50
11-2
3560338AF0
ref: 11-2
LAMP ASSY,RR TURNSIGNAL,R
3560338AF0
€ 74.00
12-1
3560438AE0
ref: 12-1
LAMP ASSY,RR TURNSIGNAL,L
3560438AE0
€ 68.50
12-2
3560438AF0
ref: 12-2
LAMP ASSY,RR TURNSIGNAL,L
3560438AF0
€ 75.50
13-1
3563038AE1
ref: 13-1
LENS
3563038AE1
€ 19.50
13-1
3563038AE1
ref: 13-1
LENS
3563038AE1
€ 19.50
13-2
3563038AF0
ref: 13-2
LENS
3563038AF0
€ 24.50
13-2
3563038AF0
ref: 13-2
LENS
3563038AF0
€ 24.50
14-1
3561038AE1
ref: 14-1
LENS
3561038AE1
€ 19.50
14-1
3561038AE1
ref: 14-1
LENS
3561038AE1
€ 19.50
14-2
3561038AF0
ref: 14-2
LENS
3561038AF0
€ 24.50
14-2
3561038AF0
ref: 14-2
LENS
3561038AF0
€ 24.50
15
3562338AA0
ref: 15
SCREW(4X10)
3562338AA0
€ 4.00
16-1
0947112045
ref: 16-1
BULB(12V21W)
0947112045
€ 5.00
16-2
0947112186
ref: 16-2
BULB(12V21W,AMBER)
0947112186
€ 2.50
17
3569517C00
ref: 17
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
18
0916010501
ref: 18
WASHER(10.5X30X2.3)
0916010501
€ 2.50
19
0930805015
ref: 19
GROMMET
0930805015
€ 4.50
20
083100010B
ref: 20
NUT
083100010B
€ 2.00
21
3861003F00
ref: 21
RELAY ASSY,TURNSIGNAL LAMP
3861003F00
€ 88.50
