FRAME COVER (MODEL K2/K3)

VZ800 MARAUDER 1997 (V) USA (E03)

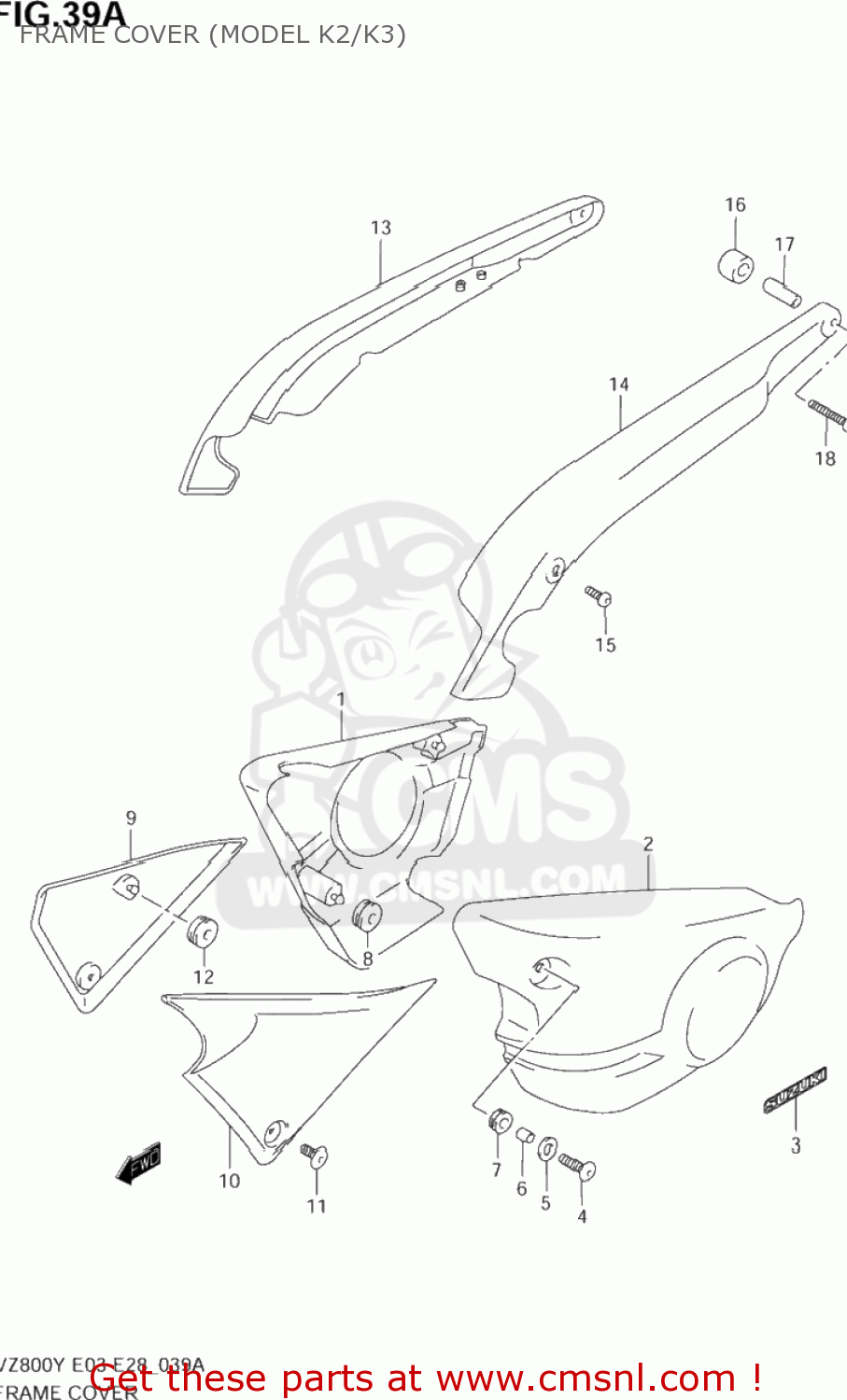

Frame cover (model k2/k3) diagram VZ800 MARAUDER 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711148E41
ref: 1-1

COVER,FRAME,R

€ 85.50

1-2

4711148E61
ref: 1-2

COVER,FRAME,R

€ 54.50

4721148E30
ref: 2

COVER,FRAME,L

€ 81.00

6827134A0020G
ref: 3

EMBLEM,FRAME COVER CTR

€ 7.00

0913906030
ref: 4

SCREW(6X16)

€ 3.50

0916006028
ref: 5

WASHER(6.5X18X1)

€ 1.50

0918006263
ref: 6

SPACER(6.5X9X9)

€ 2.00

0932009016
ref: 7

CUSHION

€ 2.50

0932008018
ref: 8

CUSHION

€ 4.00

4751148E00
ref: 9

COVER,FRAME HEAD,R

€ 14.00

4752148E00
ref: 10

COVER,FRAME HEAD,L

€ 14.00

0913906039
ref: 11

SCREW(6X16)

€ 2.50

0932008018
ref: 12

CUSHION

€ 4.00

4712048E00
ref: 13

COVER,FRAME RR,R

€ 131.00

4722048E00
ref: 14

COVER,FRAME RR,L

€ 131.00

0910608140
ref: 15

BOLT(8X16)

€ 6.00

4712948E00
ref: 16

CUSHION,FRAME RR COVER RR

€ 5.50

0918008197
ref: 17

SPACER(8.5X12X23.5)

€ 3.50

0910608141
ref: 18
09106-08156

BOLT

€ 8.50

FRAME COVER (MODEL K2/K3)
