FRONT CARBURETOR
VZ800 MARAUDER 1997 (V) USA (E03)

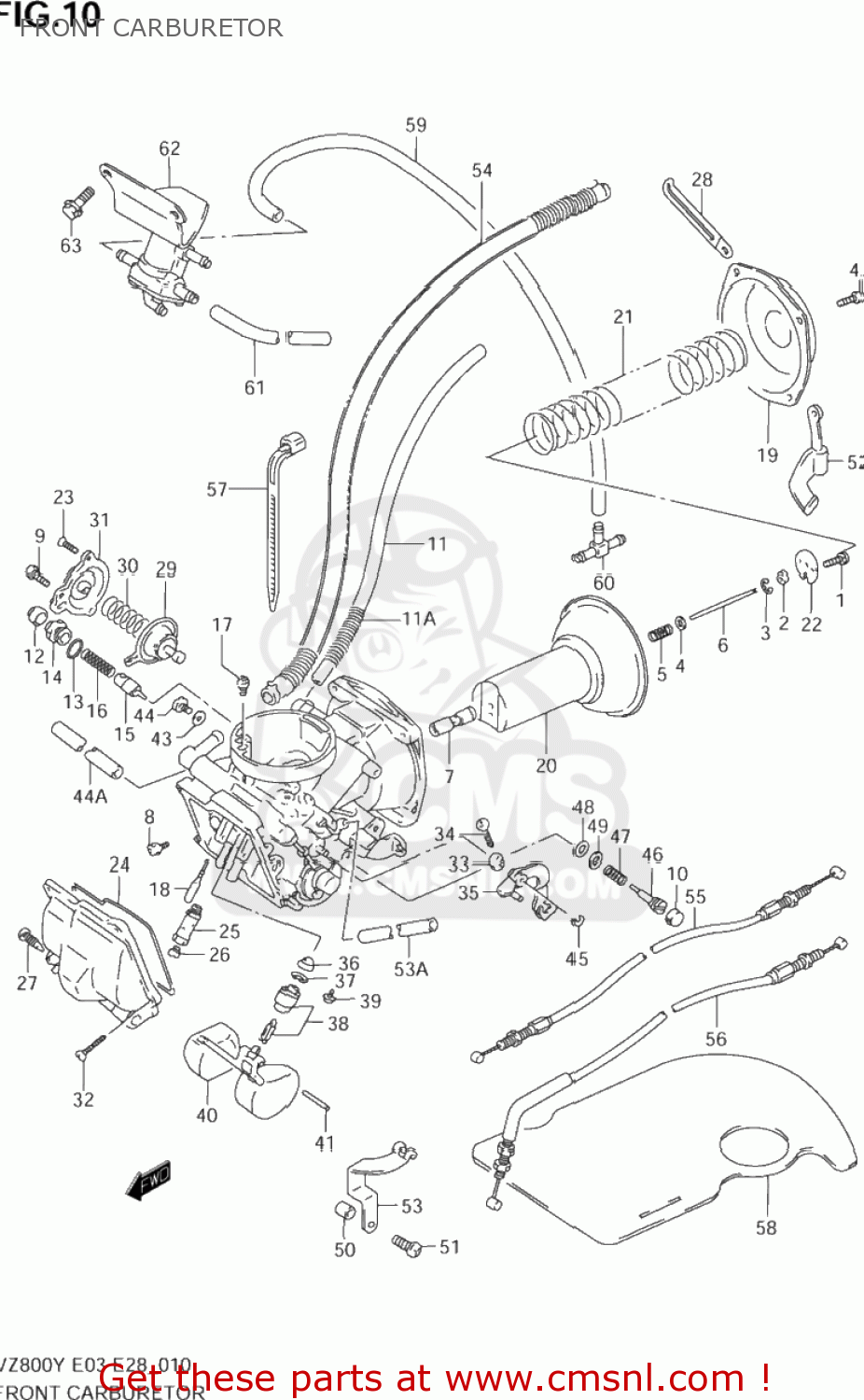

Front carburetor diagram VZ800 MARAUDER 1997 (V) USA (E03)
FRONT CARBURETOR VZ800 MARAUDER 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1321048E70
ref:
CARBURETOR ASSY,FR
€ 0.00
1321048EB0
ref:
CARBURETOR ASSEMBLY,FRONT
€ 0.00
1321048EF0
ref:
CARBURETOR ASSY,FR
€ 0.00
1321048EG0
ref:
CARBURETOR ASSEMBLY,FRONT
€ 0.00
1
0211233073
ref: 1
SCREW
€ 0.00
2
1338747010
ref: 2
RING
€ 7.50
3
1339410010
ref: 3
CLIP
€ 4.50
4-1
1338244030
ref: 4-1
WASHER
€ 3.50
4-2
1338203110
ref: 4-2
WASHER
€ 2.50
5
1338844030
ref: 5
SPRING
€ 6.00
6
1338348E80
ref: 6
NEEDLE,JET(5C43-1)
€ 0.00
7
0949400901
ref: 7
JET,NEEDLE(P-4M)
€ 0.00
8
1360538B00
ref: 8
SCREW
€ 7.50
9
0211204107
ref: 9
SCREW
€ 2.00
10
1328105A00
ref: 10
PLUG
€ 3.50
11A
1368938A00
ref: 11A
SPRING
€ 8.50
11-1
1368448E00
ref: 11-1
13683-19B80
HOSE
€ 9.50
11-2
1368319B80
ref: 11-2
HOSE
€ 9.50
11-2
1368319B80
ref: 11-2
HOSE
€ 9.50
11-3
1368448EA0
ref: 11-3
HOSE (5X8X675)
€ 0.00
11-4
1368333C20
ref: 11-4
HOSE (5X8X80)
€ 8.00
11-5
1368319B80
ref: 11-5
HOSE
€ 9.50
12
1368104010
ref: 12
CAP
€ 3.00
13
1327847090
ref: 13
O RING
€ 2.00
14
1341838A00
ref: 14
HOLDER,GUIDE
€ 11.50
15
1341101400
ref: 15
PLUNGER,STARTER
€ 11.50
16
1341708210
ref: 16
SPRING
€ 4.50
17
0949265005
ref: 17
JET,AIR(65)
€ 7.50
18
0949240021
ref: 18
JET,PILOT(40)
€ 17.50
19-1
1350245C10
ref: 19-1
13502-38A00
COVER
€ 34.00
19-2
1350238A00
ref: 19-2
COVER,DIAPHRAGM
€ 34.00
20
1350005A10
ref: 20
DIAPHRAGM,CARBURETOR
€ 178.00
21
1350338B00
ref: 21
SPRING,DIAPHRAGM
€ 12.00
22
1338937400
ref: 22
PLATE
€ 5.50
23
0212204103
ref: 23
02122-0410A
SCREW,UPPER
€ 2.50
24
1325138A00
ref: 24
O RING,FLOAT CHAMBER
€ 6.50
25
1338505A11
ref: 25
HOLDER,MAIN JET
€ 14.00
26-1
0949190008
ref: 26-1
09491-90011
JET,MAIN (90)
€ 17.50
26-2
0949190011
ref: 26-2
JET,MAIN(90)
€ 17.50
27-1
1324713A00
ref: 27-1
13247-02340
SCREW,DRAIN
€ 5.50
27-2
1324702340
ref: 27-2
PLUG,DRAIN
€ 5.50
28-1
0940406431
ref: 28-1
09404-06432
CLAMP(L:65)
€ 2.50
28-2
0940406432
ref: 28-2
CLAMP(L:65)
€ 2.50
29
1348005A10
ref: 29
DIAPHRAGM ASSY
€ 54.50
30
1348145C10
ref: 30
SPRING
€ 5.50
31
1348438A00
ref: 31
COVER
€ 20.50
32
1360248B10
ref: 32
SCREW
€ 3.00
33
0831000047
ref: 33
NUT
€ 2.00
34
0211204307
ref: 34
SCREW
€ 0.00
35-1
1355445C00
ref: 35-1
13554-45C20
LEVER ASSEMBLY
€ 38.50
35-2
1355445C20
ref: 35-2
LEVER ASSY
€ 38.50
36-1
1337684110
ref: 36-1
13376-19F00
FILTER
€ 6.50
36-2
1337619F00
ref: 36-2
FILTER
€ 6.50
37-1
1337444080
ref: 37-1
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
37-2
1337435C00
ref: 37-2
O RING,NEEDLE VALVE SEAT
€ 6.00
38
1337039A00
ref: 38
VALVE ASSY,NEEDLE
€ 67.50
39
1360205A10
ref: 39
SCREW
€ 4.00
40
1325038B00
ref: 40
FLOAT
€ 32.00
41
1325420010
ref: 41
PIN,FLOAT
€ 3.00
42
0211205127
ref: 42
SCREW
€ 2.50
43
1352346110
ref: 43
GASKET,DRAIN PLUG (NAS)
€ 3.00
44
0912505122
ref: 44
SCREW(5X6)
€ 4.00
44A-1
1368348EG0
ref: 44A-1
13683-19B80
HOSE (5X8X450)
€ 9.50
44A-2
1368319B80
ref: 44A-2
HOSE
€ 9.50
45
1341538300
ref: 45
E RING
€ 2.00
46
1327947070
ref: 46
SCREW,PILOT
€ 11.50
47
1326847070
ref: 47
SPRING
€ 5.00
48
1329529900
ref: 48
O RING,PILOT AIR SCREW
€ 4.00
49
1329129900
ref: 49
WASHER
€ 2.00
50
1333133E00
ref: 50
RING
€ 4.00
51
1360248E00
ref: 51
SCREW
€ 2.50
52
1362748E00
ref: 52
BRACKET
€ 14.50
53
1362748E10
ref: 53
BRACKET
€ 10.00
53A
1368348E10
ref: 53A
HOSE ASSY(5X8X125)
€ 0.00
54-1
1368348E00
ref: 54-1
HOSE ASSY
€ 40.00
54-2
1368348E10
ref: 54-2
HOSE ASSY(5X8X125)
€ 0.00
55
1364148E00
ref: 55
CABLE,IDLE SYNCRO
€ 20.00
56
1364248E00
ref: 56
CABLE,THROTTLE RETURN F-R
€ 25.00
57
0940718403
ref: 57
09407-18402
CLAMP L:165
€ 2.50
58-1
1384048E00
ref: 58-1
13840-48E01
SHEET,HEAT SHIELD
€ 60.00
58-1
1384048E00
ref: 58-1
13840-48E01
SHEET,HEAT SHIELD
€ 60.00
58-2
1384048E01
ref: 58-2
SHEET HEAT SHIELD
€ 60.00
58-2
1384048E01
ref: 58-2
SHEET HEAT SHIELD
€ 60.00
58-3
1384048E01
ref: 58-3
SHEET HEAT SHIELD
€ 60.00
59-1
1368448EG0
ref: 59-1
13684-02F10
HOSE,AIR VENT (5X8X450)
€ 22.00
59-2
1368402F10
ref: 59-2
HOSE
€ 22.00
60
1368548B00
ref: 60
NIPPLE
€ 9.00
61
0935550105600
ref: 61
44421-13ER0
HOSE(5X10X600)
€ 7.50
61
0935550105600
ref: 61
44421-13ER0
HOSE(5X10X600)
€ 7.50
62
1359048E00
ref: 62
VALVE,AIR VENT
€ 101.00
63
0155006123
ref: 63
01550-0612A
BOLT
€ 2.50
