REAR COMBINATION LAMP
VZ800 MARAUDER 1997 (V) USA (E03)

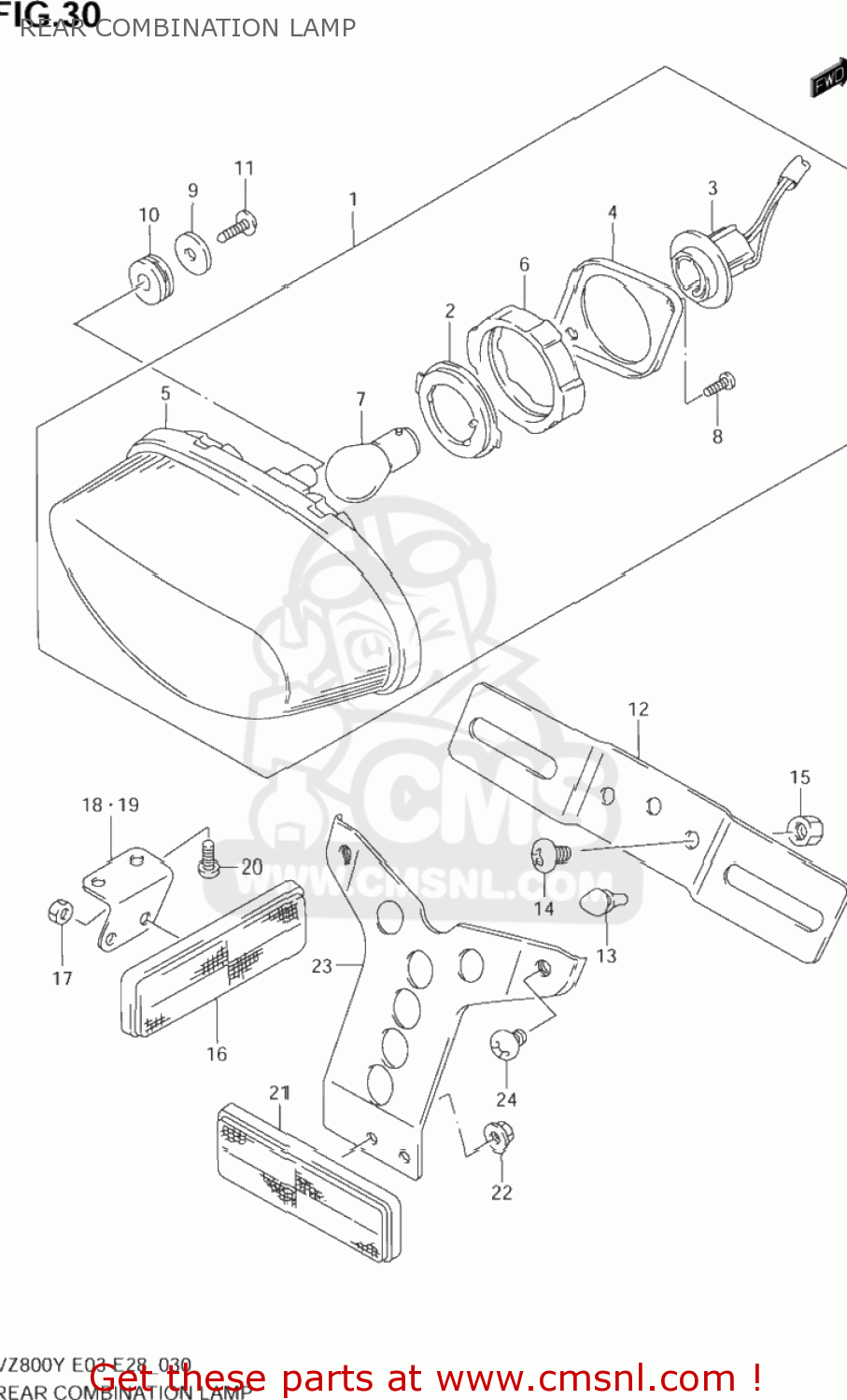

Rear combination lamp diagram VZ800 MARAUDER 1997 (V) USA (E03)
REAR COMBINATION LAMP VZ800 MARAUDER 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571042E20
ref: 1
LAMP ASSY,RR COMBINATION
€ 99.00
2
3571648B21
ref: 2
PLATE NO.1
€ 25.00
3
3571842E10
ref: 3
SOCKET & CORD
€ 56.50
4
3573648B21
ref: 4
PLATE NO.2
€ 16.50
5
3574042E11
ref: 5
LAMP UNIT
€ 92.00
6
3576548B21
ref: 6
CUSHION
€ 10.50
7
0947112083
ref: 7
09471-12128
BULB(12V21/5W)
€ 6.00
8
0321104123
ref: 8
03211-0412A
SCREW
€ 1.50
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
€ 2.00
10
0932010015
ref: 10
CUSHION
€ 2.50
11
0354105123
ref: 11
03541-0512A
SCREW
€ 2.00
12
3592748B30
ref: 12
BRACKET,LICENSE PLATE
€ 15.00
13
0932106023
ref: 13
CUSHION
€ 2.00
14
0214206123
ref: 14
02142-0612A
SCREW 6X12
€ 2.00
15
0831610063
ref: 15
08316-1006B
NUT
€ 2.50
16
3597024D60
ref: 16
REFLECTOR ASSY,RR
€ 19.50
17
0831000053
ref: 17
08310-0005A
NUT
€ 2.50
18
3597438A20
ref: 18
BRACKET,RR SIDE RR,L
€ 10.50
19
3597538A20
ref: 19
BRACKET,RR SIDE RR,R
€ 10.50
20
0211206083
ref: 20
02112-0608A
SCREW
€ 1.50
21
3597024D60
ref: 21
REFLECTOR ASSY,RR
€ 19.50
22
0831610053
ref: 22
08316-1005A
NUT
€ 2.50
23
3597448E00
ref: 23
BRACKET,RR REFLECTOR
€ 8.00
24
0214206123
ref: 24
02142-0612A
SCREW 6X12
€ 2.00
