HANDLE SWITCH

VZ800 MARAUDER 1997 (V) USA (E03)

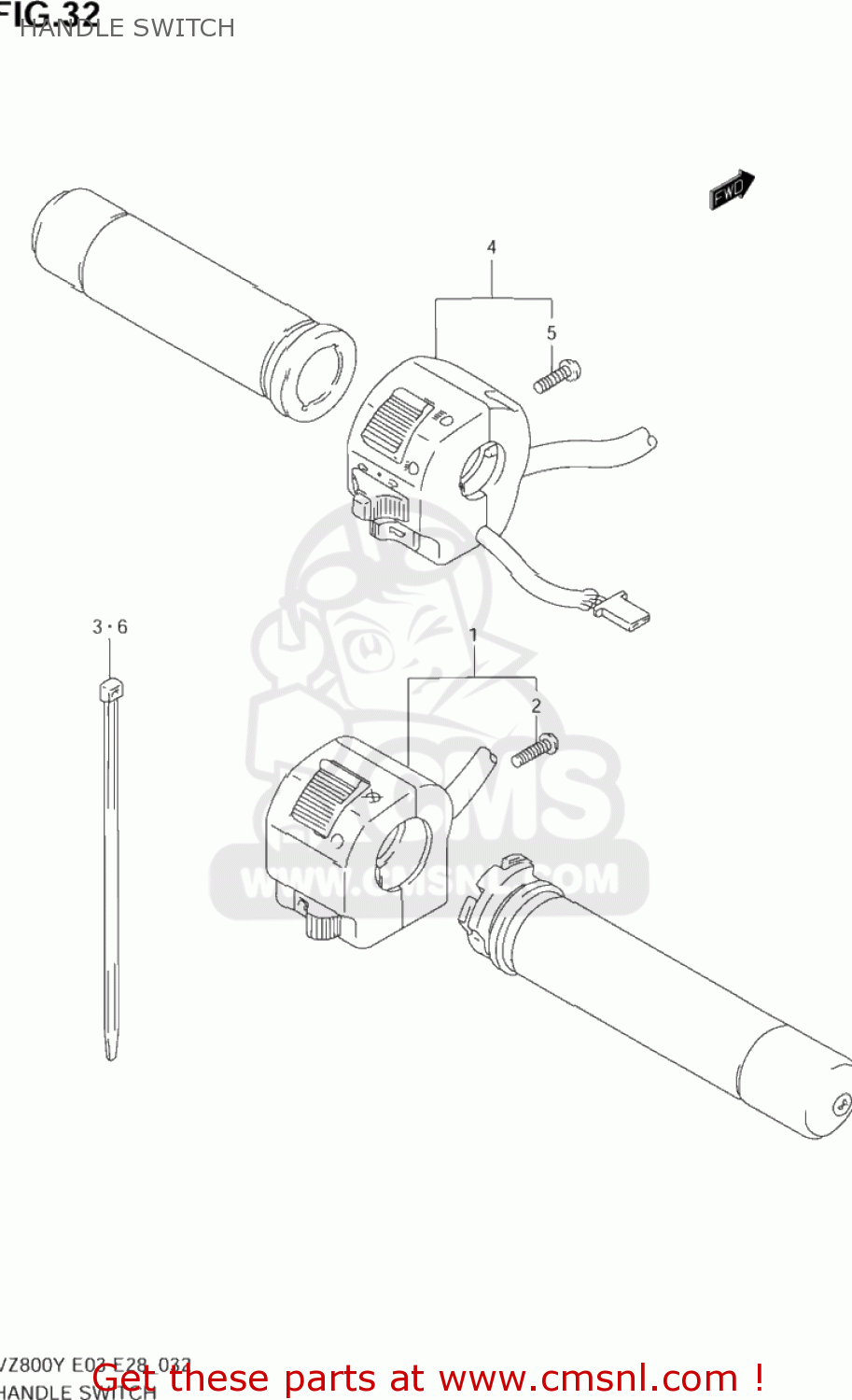

Handle switch diagram VZ800 MARAUDER 1997 (V) USA (E03)

HANDLE SWITCH VZ800 MARAUDER 1997 (V) USA (E03)

HANDLE SWITCH VZ800 MARAUDER 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720048E30
ref: 1

SWITCH ASSY,HANDLE,R

€ 157.50

2

0912505048
ref: 2
09136-05041

SCREW(5X16)

€ 2.00

3

0940714407
ref: 3

CLAMP(L:145)

€ 4.00

4

3740048E30
ref: 4

SWITCH ASSY,HANDLE,L

€ 212.50

5

0912505048
ref: 5
09136-05041

SCREW(5X16)

€ 2.00

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00
