FRONT CALIPER

VZ800 MARAUDER 1997 (V) USA (E03)

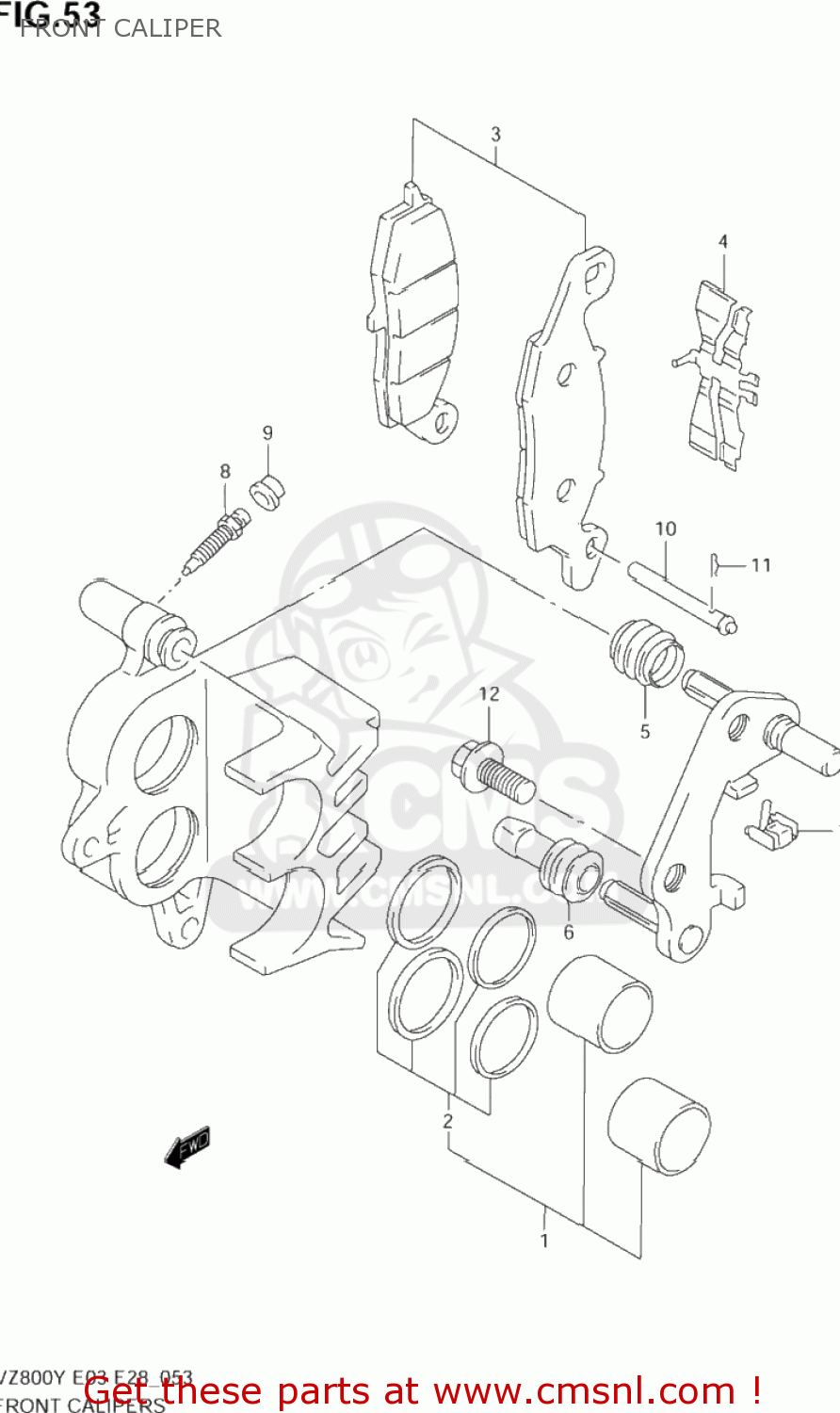

Front caliper diagram VZ800 MARAUDER 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

5910033D21
ref:
59100-33D81-999

RH FR CALIPER A

€ 552.00

5930120820
ref: 1

PISTON SET

€ 65.50

5930035820
ref: 2
59300-33841

SEAL SET,PISTO

€ 26.50

5910033870
ref: 3

PAD SET (NAS)

€ 57.50

5911533D00
ref: 4

SPRING,PAD,R

€ 12.00

5911244B00
ref: 5

BOOT,AXLE

€ 8.00

5931336500
ref: 6

INSULATOR,AXLE

€ 5.50

5911633D00
ref: 7

GUIDE,PAD

€ 6.50

5912118410
ref: 8

BLEEDER

€ 8.00

5515666310
ref: 9

CAP,BLEEDER PLUG

€ 6.00

5914144B01
ref: 10

PIN,PAD

€ 8.00

6914245000
ref: 11

CLIP,PAD PIN

€ 4.50

0155010257
ref: 12

BOLT

€ 3.00
