FOOTREST
VZ800 MARAUDER 2001 (K1) USA (E03)

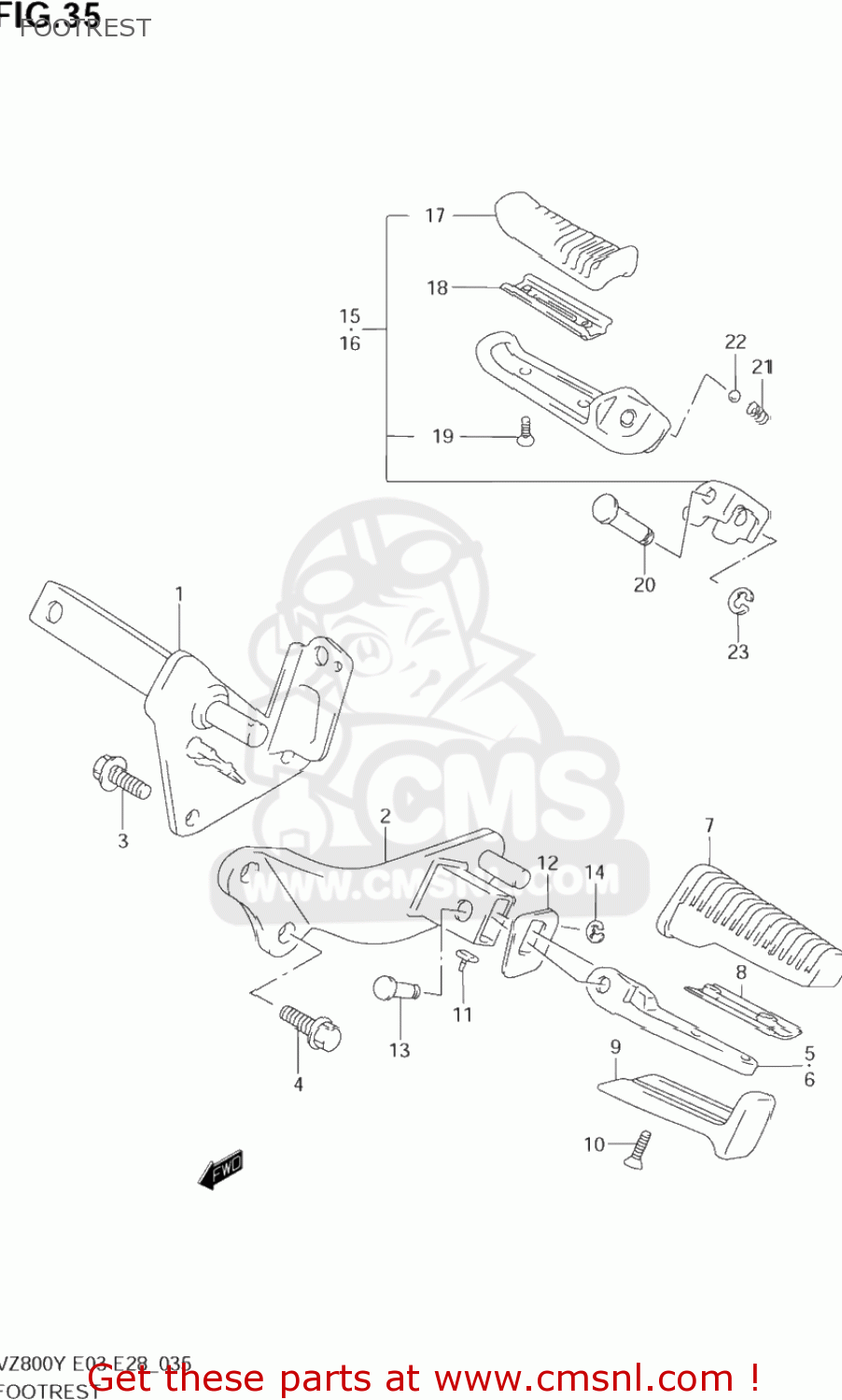

Footrest diagram VZ800 MARAUDER 2001 (K1) USA (E03)
FOOTREST VZ800 MARAUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351048E10
ref: 1-1
BRACKET,FR FOOTREST,R
€ 476.00
1-2
4351048E20
ref: 1-2
BRACKET,FR FOOTREST,R
€ 204.50
2-1
4352048E10
ref: 2-1
BRACKET,FR FOOTREST,L
€ 318.00
2-2
4352048E20
ref: 2-2
BRACKET,FR FOOTREST,L
€ 232.00
3
0158010307
ref: 3
BOLT
€ 4.00
4-1
0158010357
ref: 4-1
BOLT
€ 4.00
4-2
0158010353
ref: 4-2
01580-1035A
BOLT
€ 4.00
5
4353148E00
ref: 5
BAR,FR FOOTREST,R
€ 28.00
6
4354148E00
ref: 6
BAR,FR FOOTREST,L
€ 28.00
7
4355138B00
ref: 7
RUBBER,FR FOOTREST
€ 12.50
8
4358038B10
ref: 8
PLATE,RUBBER STOPPER
€ 8.50
9
4358538B11
ref: 9
COVER,FR FOOTREST
€ 45.50
10
0912705018
ref: 10
SCREW(5X20)
€ 2.50
11
4357148E00
ref: 11
CUSHION,FR FOOTREST BAR
€ 6.00
12
4354638B01
ref: 12
WASHER,FR FOOTREST
€ 5.00
13
0920808011
ref: 13
PIN
€ 3.00
14
0833211063
ref: 14
08332-1106A
E.RING
€ 2.00
15-1
4360048E10
ref: 15-1
FOOTREST ASSY,PILLION,R
€ 65.50
15-2
4360038E00
ref: 15-2
FOOTREST ASSY,PILLION,R
€ 55.00
16-1
4370048E10
ref: 16-1
FOOTREST ASSY,PILLION,L
€ 72.50
16-2
4370038E00
ref: 16-2
FOOTREST ASSY,PILLION,L
€ 55.00
17
4361238A00
ref: 17
RUBBER,PILLION FOOTREST
€ 12.00
18
4363238A00
ref: 18
PLATE,RUBBER STOPPER
€ 4.00
19
0912705017
ref: 19
SCREW(5X16)
€ 2.00
20
0920808011
ref: 20
PIN
€ 3.00
21
0944005005
ref: 21
SPRING
€ 1.50
22
0611107004
ref: 22
BALL
€ 1.50
23
0833211063
ref: 23
08332-1106A
E.RING
€ 2.00
