REAR FENDER (MODEL W/X)

VZ800 MARAUDER 2001 (K1) USA (E03)

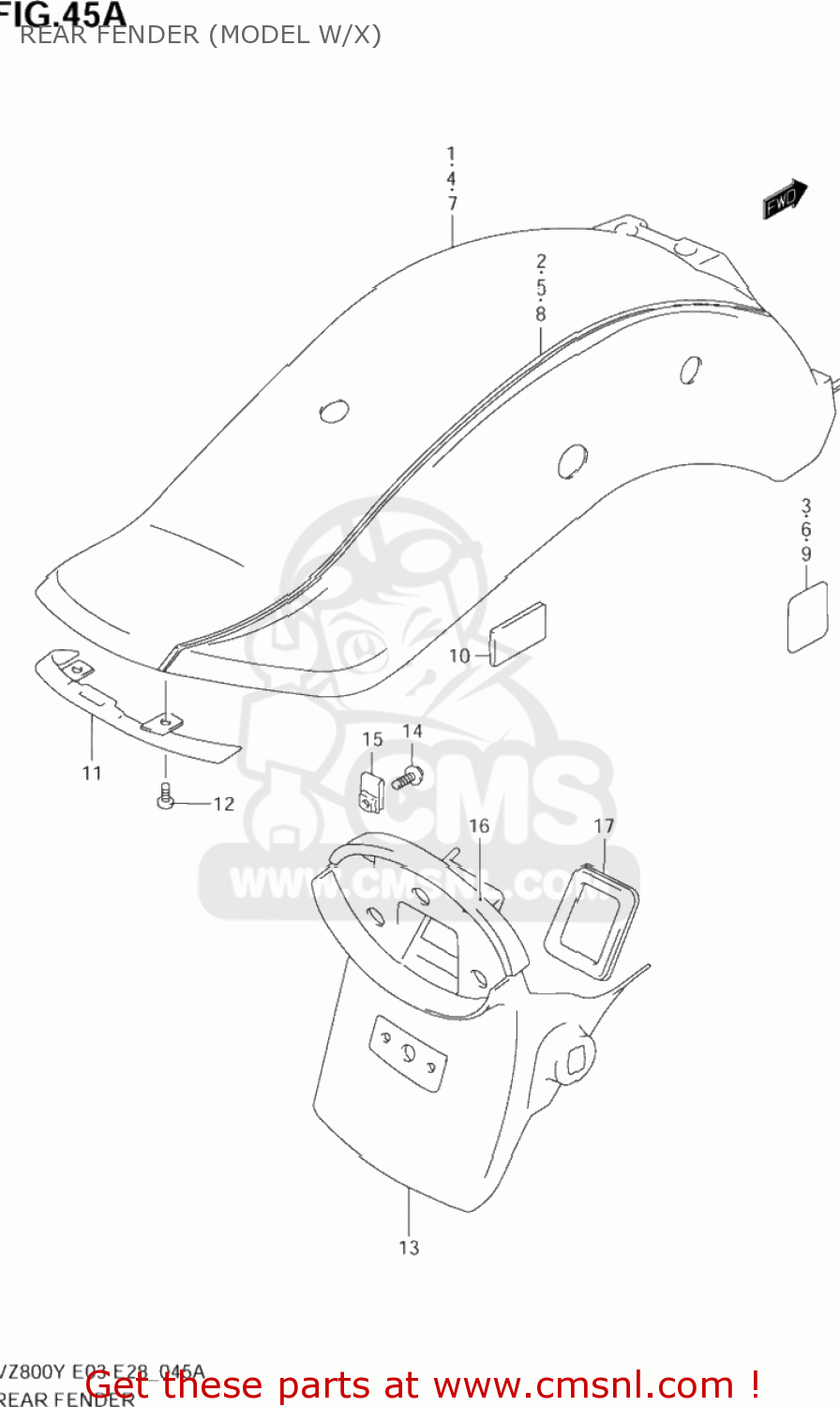

Rear fender (model w/x) diagram VZ800 MARAUDER 2001 (K1) USA (E03)

REAR FENDER (MODEL W/X) VZ800 MARAUDER 2001 (K1) USA (E03)

REAR FENDER (MODEL W/X) VZ800 MARAUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311048E30J8K
ref: 1

FENDER,REAR

€ 192.50

2

6817048E10J9G
ref: 2

TAPE SET,RR FENDER

€ 50.50

3

6154494500
ref: 3

PAD

€ 2.00

4

6311048E40J4M
ref: 4

FENDER,REAR

€ 334.50

5

6817048E20J6F
ref: 5

TAPE SET,RR FENDER

€ 50.50

6

6154494500
ref: 6

PAD

€ 2.00

7-1

6311048E80E9N
ref: 7-1

FENDER,RR

€ 303.50

7-2

6311048E80G7U
ref: 7-2

FENDER,RR

€ 303.50

8-1

6817048E30H0G
ref: 8-1

TAPE SET,REAR FENDER

€ 56.00

8-2

6817048E30M1Z
ref: 8-2

TAPE SET,RR FENDER

€ 48.00

9

6154494500
ref: 9

PAD

€ 2.00

10

0932013015
ref: 10

CUSHION

€ 3.00

11

6311248E00
ref: 11

COVER,RR FENDER RR

€ 8.50

12

0354105123
ref: 12
03541-0512A

SCREW

€ 2.00

13

6331148E00
ref: 13

EXTENSION,RR FENDER

€ 34.00

14

0216206163
ref: 14
02162-0616B

SCREW

€ 2.50

15

4715319C01
ref: 15

PLATE,FRAME COVER

€ 4.00

16

6331248E00
ref: 16

CUSHION,RR FENDER EXTENSION

€ 5.50

17

6319148E00
ref: 17

CAP,RR FENDER EXTENSION

€ 8.00
