STARTING MOTOR
VZ800 MARAUDER 2001 (K1) USA (E03)

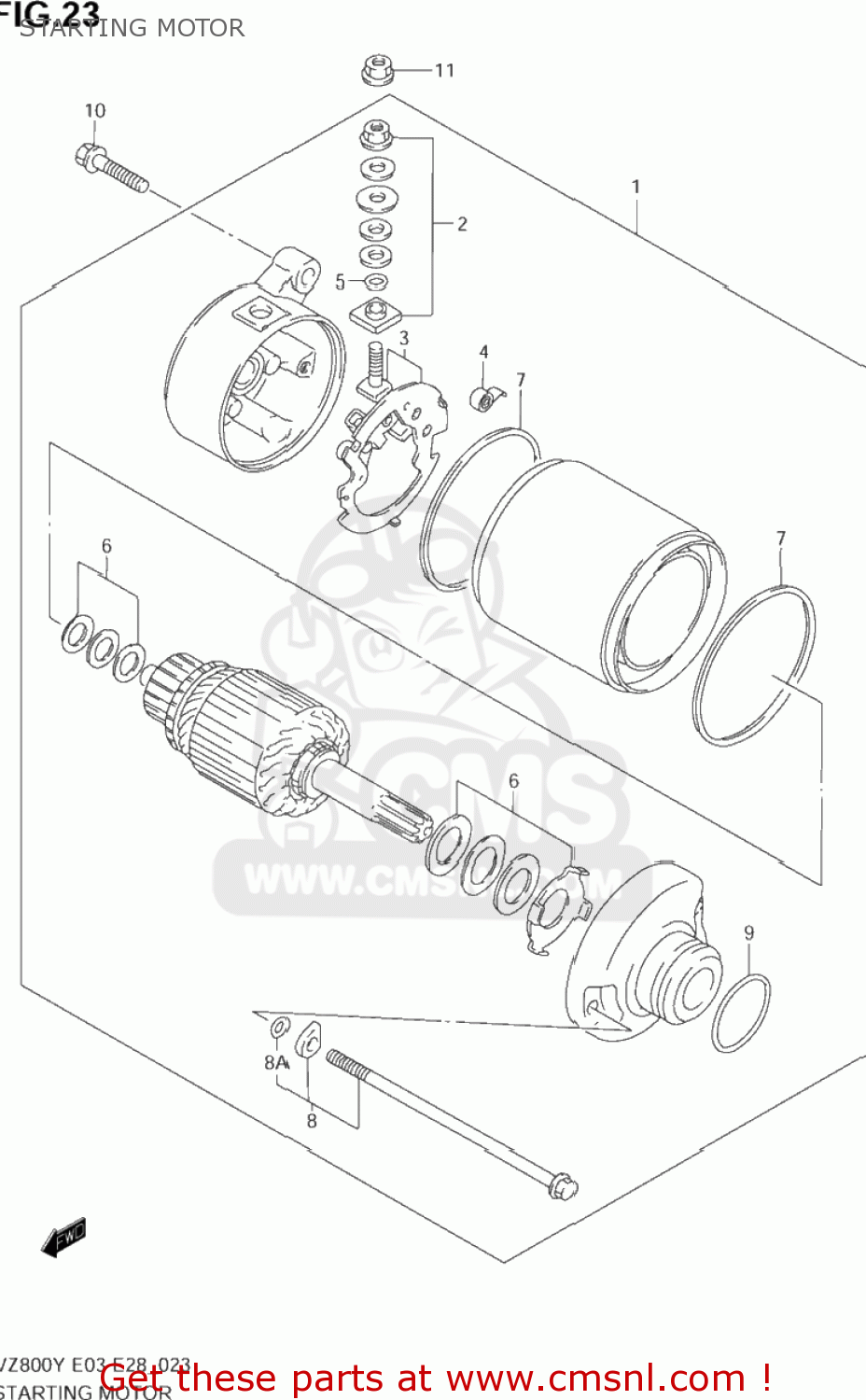

Starting motor diagram VZ800 MARAUDER 2001 (K1) USA (E03)
STARTING MOTOR VZ800 MARAUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110048E00
ref: 1
MOTOR ASSY,STARTING
€ 973.50
2
3113019B10
ref: 2
TERMINAL SET,BRUSH,PLUS
€ 27.50
3
3113219B10
ref: 3
HOLDER SET,BRUSH
€ 29.00
4
3113531300
ref: 4
SPRING,BRUSH
€ 4.00
5
3114349040
ref: 5
O RING
€ 3.00
6
3117019B10
ref: 6
SHIM SET,STARTING MOTOR
€ 8.00
7
3126431300
ref: 7
31264-32E00
O RING
€ 7.50
8
3128019B10
ref: 8
BOLT SET,STARTING MOTOR
€ 8.50
8A
3114349040
ref: 8A
O RING
€ 3.00
9
0928024003
ref: 9
O RING(D:3,ID:24.5)
€ 2.00
10
0154706257
ref: 10
BOLT
€ 2.50
11
0836135068
ref: 11
08361-3506A
NUT
€ 2.00
