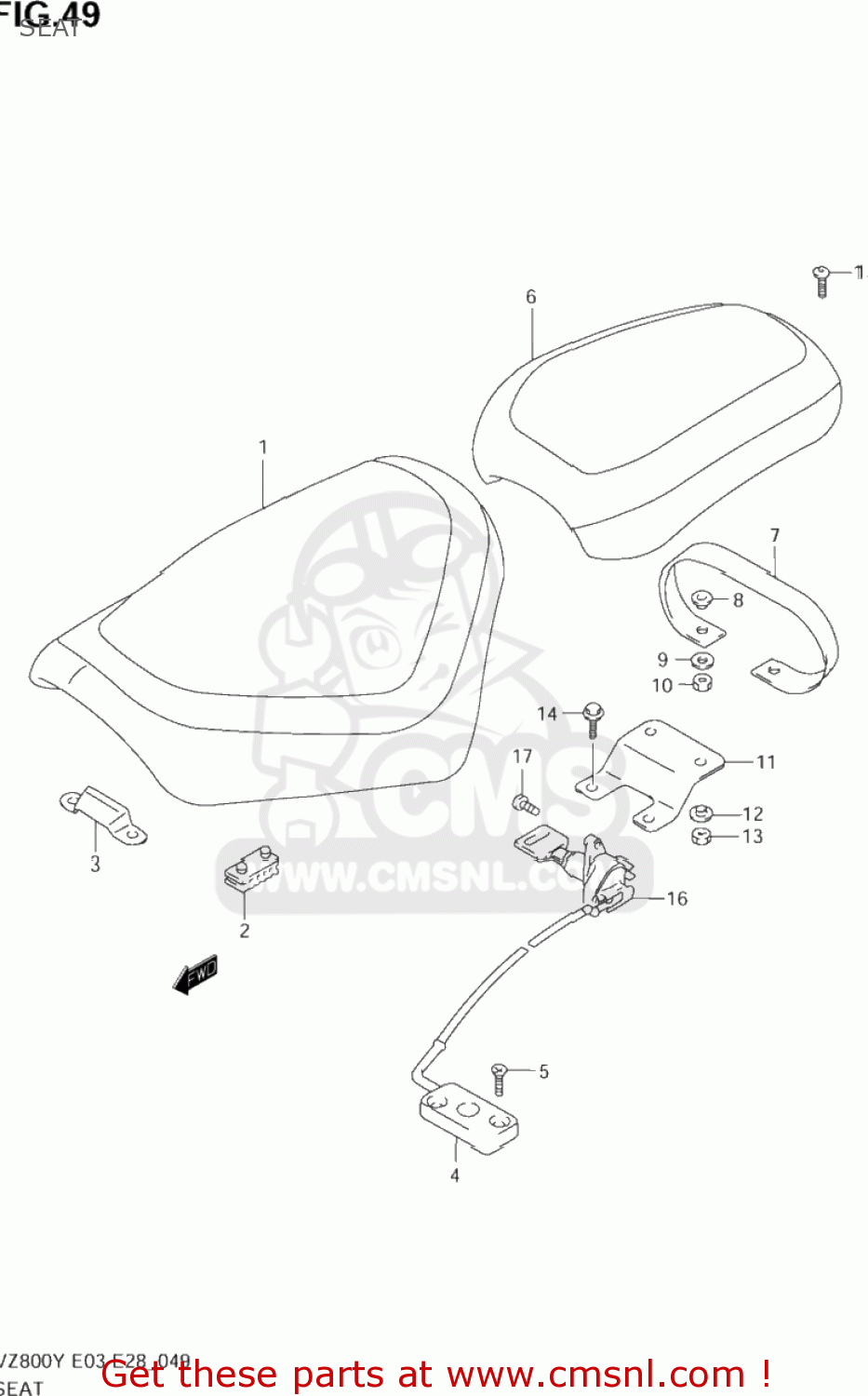

SEAT

ref

part #

description

quantity

1-1

4510048E01H1N
ref: 1-1

SEAT ASSY

€ 193.00

1-2

4510048E50M9Z
ref: 1-2

SEAT ASSY

€ 0.00

1-3

4510048E7048H
ref: 1-3

SEAT ASSY(BLACK)

€ 0.00

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

4511948E00
ref: 3

PLATE,FR SEAT HOOK

€ 4.50

4

4522048E01
ref: 4

BRACKET,SEAT SUPPORT FR

€ 40.00

5

0212206253
ref: 5
02122-0625A

SCREW

€ 2.00

6-1

4530048E10H1N
ref: 6-1

SEAT ASSY,PILLION

€ 152.00

6-2

4530048E50M9Z
ref: 6-2

SEAT ASSY,PILLION

€ 0.00

6-3

4530048E7048H
ref: 6-3

SEAT ASSY,PILLION(BLACK)

€ 0.00

7-1

4518048E10P21
ref: 7-1

BAND ASSY,SEAT

€ 32.50

7-2

4518048E50P21
ref: 7-2

BAND ASSY,SEAT(BLACK)

€ 0.00

8

0916906071
ref: 8

WASHER

€ 2.50

9

0916006084
ref: 9

WASHER(6.5X18X1.6)

€ 2.00

10

0831620063
ref: 10
08316-2006A

NUT

€ 2.00

11

4511648E00
ref: 11

PLATE,PILLION SEAT

€ 9.50

12

0916906071
ref: 12

WASHER

€ 2.50

13

0831620063
ref: 13
08316-2006A

NUT

€ 2.00

14

0155006123
ref: 14
01550-0612A

BOLT

€ 2.50

15

0910608140
ref: 15

BOLT(8X16)

€ 6.00

16

9570012852
ref: 16
95700-12853

LOCK SET,SEAT

€ 110.50

17

0913906092
ref: 17

SCREW(6X14)

€ 3.50
