HANDLEBAR

VZ800 MARAUDER 2001 (K1) USA (E03)

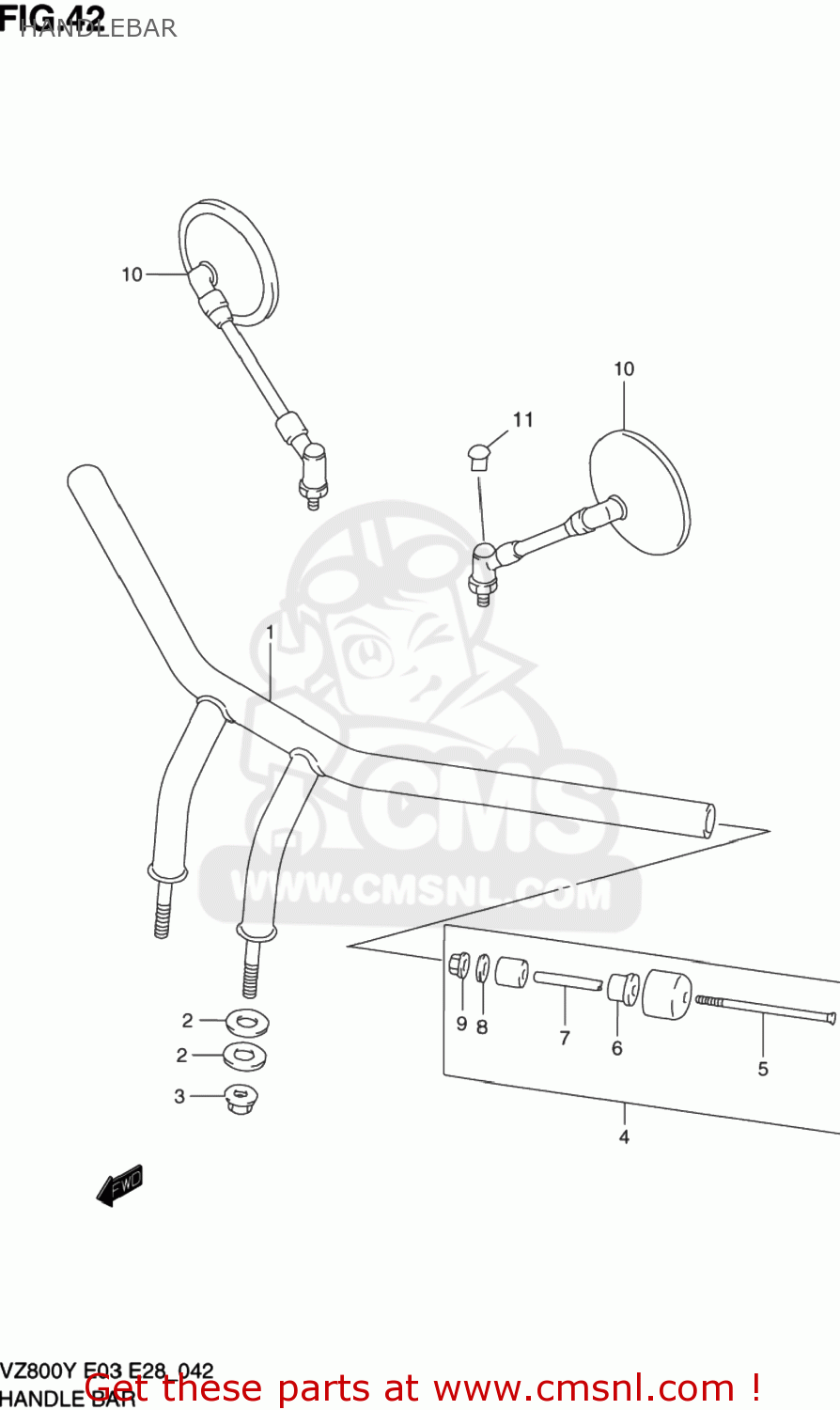

Handlebar diagram VZ800 MARAUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

5611048E00
ref: 1

HANDLEBAR

€ 763.50

5624048E01
ref: 2

CUSHION,HANDLEBAR

€ 9.00

0831931128
ref: 3
08319-3112A

NUT 12MM

€ 4.00

5620048831
ref: 4

BALANCER SET,HANDLEBAR

€ 58.00

0912706019
ref: 5

SCREW(6X110)

€ 4.50

5627226D01
ref: 6

EXPANDER,HANDLE BALANCER NO.2

€ 5.00

5627617D00
ref: 7

SPACER,EXPANDER

€ 2.50

8-1

0916006013
ref: 8-1
09160-06121

WASHER (6.5X18X2)

€ 10.50

8-2

0916006121
ref: 8-2

WASHER(6.5X18X2)

€ 10.50

0915906024
ref: 9

NUT

€ 2.00

5650038AD0
ref: 10
56500-38AF0

MIRROR ASSEMBLY,REAR VIEW

€ 240.00

5652428600
ref: 11
56524-28601

CAP

€ 4.00
