FRAME (MODEL V/W/X/Y)
VZ800 MARAUDER 2003 (K3) USA (E03)

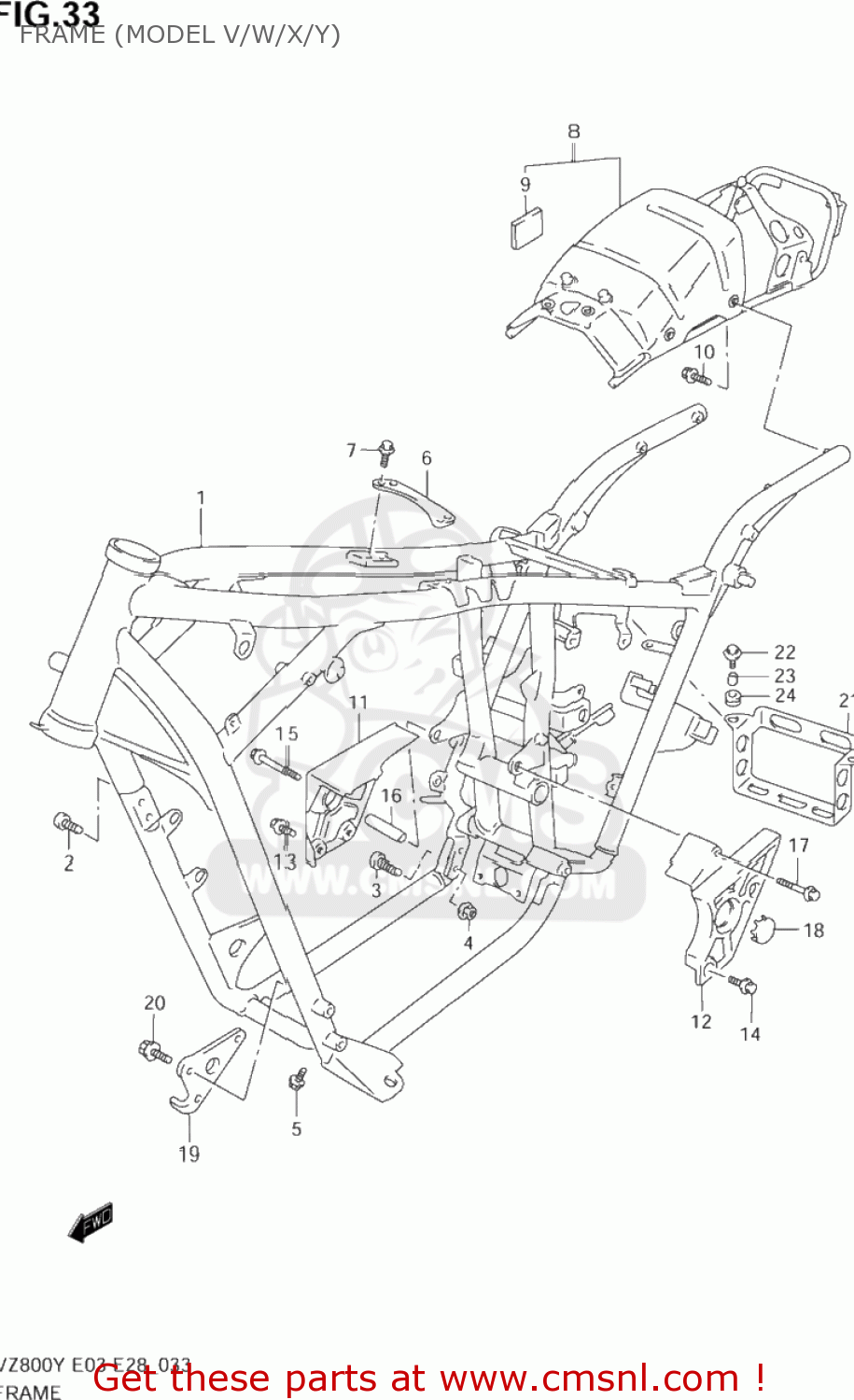

Frame (model v/w/x/y) diagram VZ800 MARAUDER 2003 (K3) USA (E03)
FRAME (MODEL V/W/X/Y) VZ800 MARAUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110048E20019
ref: 1-1
FRAME COMP
€ 0.00
1-2
4110048E60019
ref: 1-2
FRAME(BLACK)
€ 0.00
1-3
4110048E70019
ref: 1-3
FRAME COMP
€ 0.00
2
0713010253
ref: 2
07130-1025B
BOLT
€ 3.50
3
0713010353
ref: 3
07130-1035B
BOLT
€ 3.50
4
0831931103
ref: 4
08319-3110A
NUT
€ 3.00
5
0155008163
ref: 5
01550-0816A
BOLT
€ 3.00
6
4199948E00
ref: 6
PLATE,FRAME BODY
€ 13.00
7-1
0155008203
ref: 7-1
01550-0820A
BOLT
€ 3.00
7-2
0910608118
ref: 7-2
09106-08161
BOLT 8X20
€ 4.00
7-3
0910608140
ref: 7-3
BOLT(8X16)
€ 6.00
8
4150148E00
ref: 8
BRACE ASSY,RR FRAME
€ 479.50
9
1371984150
ref: 9
PAD
€ 2.50
10
0155108203
ref: 10
01551-0820A
BOLT, FRONT
€ 2.00
11-1
4196148E00
ref: 11-1
COVER,PIVOT,R
€ 90.00
11-2
4196148E10
ref: 11-2
COVER,PIVOT,R
€ 22.00
12-1
4196248E00
ref: 12-1
COVER,PIVOT,L
€ 67.50
12-2
4196248E10
ref: 12-2
COVER,PIVOT,L
€ 65.50
13-1
4196348E00
ref: 13-1
4196348E00
13-2
0910608128
ref: 13-2
BOLT(8X16)
€ 4.00
14
4196448E00
ref: 14
BOLT,PIVOT COVER
€ 4.00
15-1
4196648E00
ref: 15-1
BOLT,PIVOT COVER FR,R
€ 11.50
15-2
0910608128
ref: 15-2
BOLT(8X16)
€ 4.00
16
4196748E00
ref: 16
SPACER,PIVOT COVER,R
€ 7.00
17
4196548E00
ref: 17
BOLT,PIVOT COVER UPR,L
€ 7.00
18
6122238A01
ref: 18
CAP,RR SWINGING ARM PIVOT,R
€ 6.50
19
4192148E00
ref: 19
PLATE,ENGINE MOUNT NO.1,L
€ 23.50
20
0158010303
ref: 20
01580-1030A
BOLT
€ 3.00
21
4154048E00
ref: 21
HOLDER,BATTERY
€ 34.50
22
0911606006
ref: 22
BOLT(6X16)
€ 2.00
23-1
0918006262
ref: 23-1
SPACER(6.5X9X8.5)
€ 3.00
23-2
0918006261
ref: 23-2
SPACER(6.5X9X8)
€ 2.00
24
0932008021
ref: 24
CUSHION
€ 4.00
