RADIATOR HOSE
VZ800 MARAUDER 2003 (K3) USA (E03)

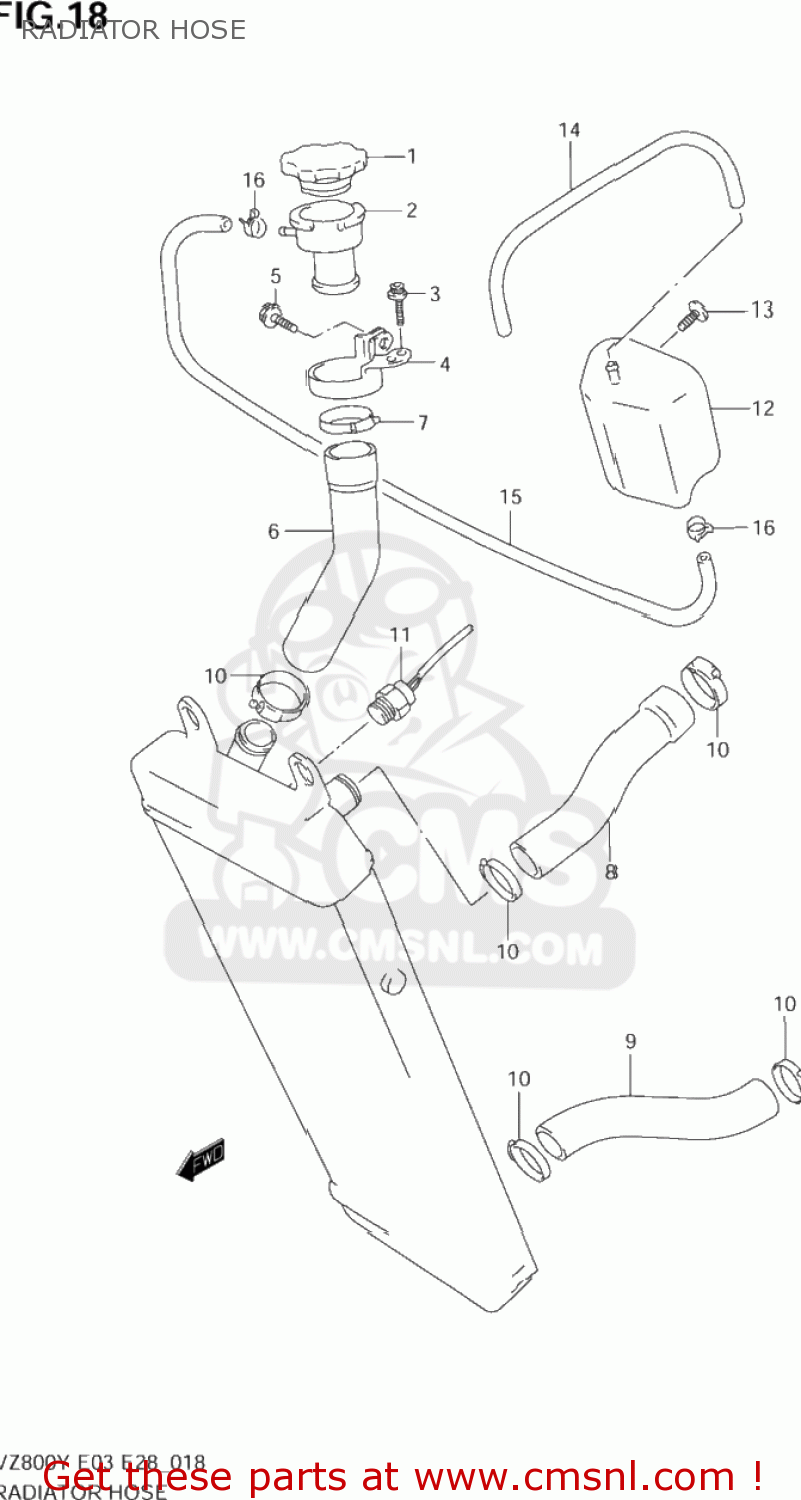

Radiator hose diagram VZ800 MARAUDER 2003 (K3) USA (E03)
RADIATOR HOSE VZ800 MARAUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1773019D00
ref: 1-1
17730-19D11
CAP COMP,RADIATOR 1.1
€ 33.50
1-2
1773019D11
ref: 1-2
CAP,RADIATOR(1.1)
€ 33.50
1-3
1773012C30
ref: 1-3
CAP,RADIATOR
€ 33.50
2
1779145C00
ref: 2
CONDUCTION,RADIATOR
€ 28.50
3
0712006163
ref: 3
07120-0616B
BOLT MAGNETO S
€ 2.50
4
1779348E00
ref: 4
BRACKET,CONDUCTION
€ 10.00
5
0155006203
ref: 5
01550-0620A
BOLT
€ 2.50
6
1785348E00
ref: 6
HOSE,CONDUCTION
€ 16.50
7
0940238511
ref: 7
CLAMP
€ 10.50
8
1785148E00
ref: 8
HOSE,RADIATOR INLET
€ 18.00
9
1785248E00
ref: 9
HOSE,RADIATOR OUTLET
€ 21.00
10
0940232511
ref: 10
CLAMP
€ 11.50
11
1768048E00
ref: 11
SWITCH,RADIATOR FAN
€ 95.00
12
1791148E00
ref: 12
TANK,RESERVOIR
€ 21.00
13
0214206123
ref: 13
02142-0612A
SCREW 6X12
€ 2.00
14
1798238810
ref: 14
HOSE,RESERVOIR TANK OUTLET
€ 16.00
15
1798148E00
ref: 15
17900-27810
HOSE,RESERVOIR TANK INLET
€ 13.50
16
0940108411
ref: 16
CLIP
€ 3.00
