OIL PUMP / FUEL PUMP
VZ800 MARAUDER 2003 (K3) USA (E03)

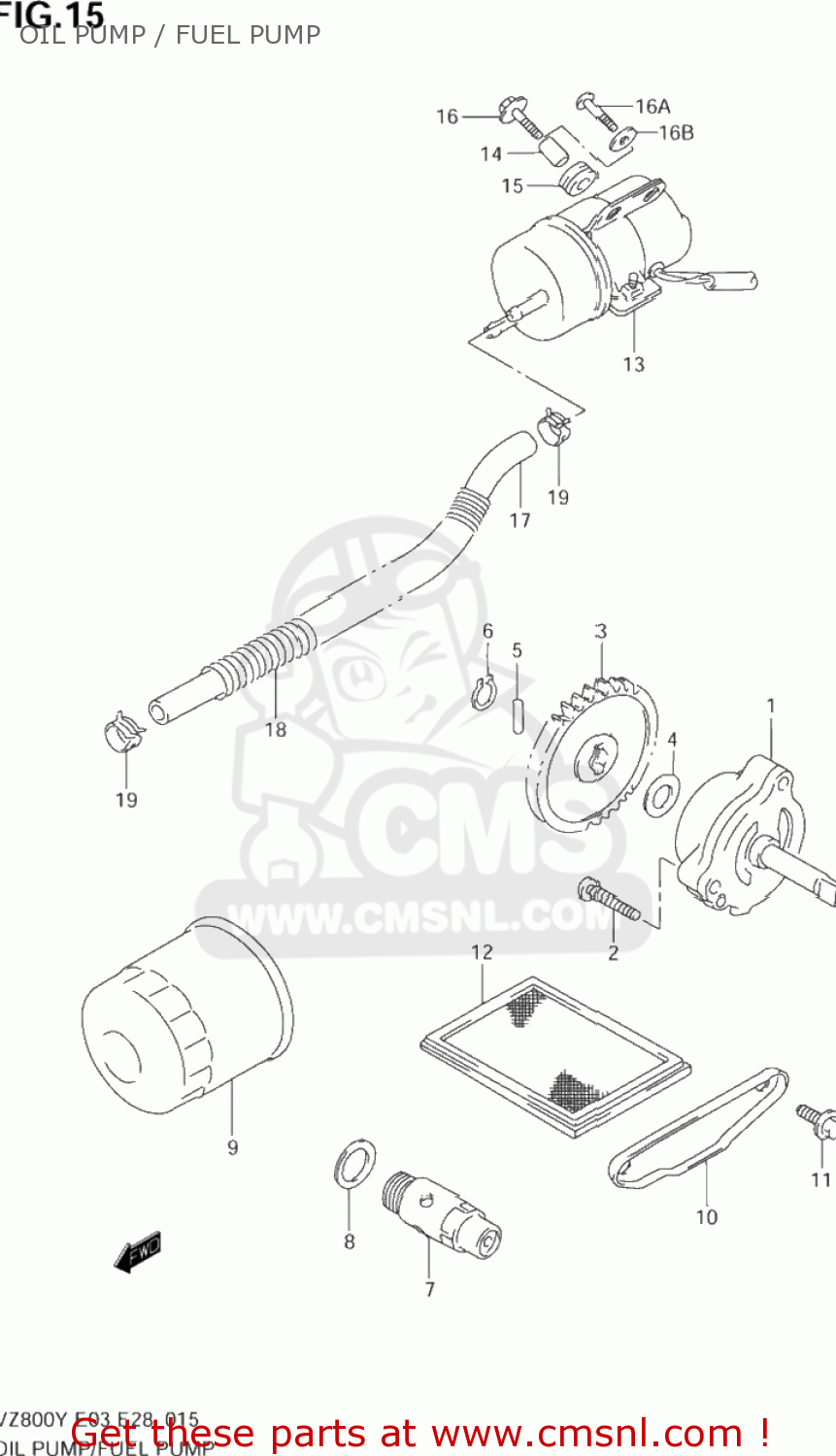

Oil pump / fuel pump diagram VZ800 MARAUDER 2003 (K3) USA (E03)
OIL PUMP / FUEL PUMP VZ800 MARAUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640048E00
ref: 1
PUMP ASSY,ENGINE OIL
€ 197.50
2
0211206253
ref: 2
02112-0625A
SCREW
€ 1.50
3
1633148E00
ref: 3
GEAR,OIL PUMP DRIVEN(NT:34)
€ 45.00
4
0918110158
ref: 4
SHIM(10X18X0.5)
€ 2.50
5
0926104009
ref: 5
PIN(4X15.8)
€ 1.50
6
0833131106
ref: 6
08331-3110A
CIRCLIP,10MM
€ 2.00
7
1644033E00
ref: 7
VALVE ASSY,OIL RELIEF
€ 51.50
8
0916816002
ref: 8
GASKET(16X22X2) (NAS)
€ 2.00
9-1
1651006B01
ref: 9-1
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
9-2
1651034E00
ref: 9-2
16510-07J00
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
10
1652348E00
ref: 10
CAP,OIL STRAINER
€ 9.00
11
0910306083
ref: 11
09103-06285
BOLT 6X12
€ 2.50
12
1652032E00
ref: 12
STRAINER,ENGINE OIL
€ 11.50
13
1510021E01
ref: 13
PUMP ASSY,FUEL
€ 391.50
14
0918006263
ref: 14
SPACER(6.5X9X9)
€ 2.00
15
0932009009
ref: 15
CUSHION
€ 5.00
16
0911606011
ref: 16
09116-06115
BOLT 6X20
€ 2.00
16A
0913906056
ref: 16A
SCREW(6X20)
€ 3.00
16B
0916006077
ref: 16B
WASHER(6.5X20X1.2)
€ 2.00
17
0935570125600
ref: 17
44421-12FR0
HOSE(7X12X600)
€ 26.00
18
0944014047
ref: 18
SPRING
€ 13.50
19
0940111407
ref: 19
09401-11415
CLIP
€ 2.50
