FUEL COCK

VZ800 MARAUDER 2003 (K3) USA (E03)

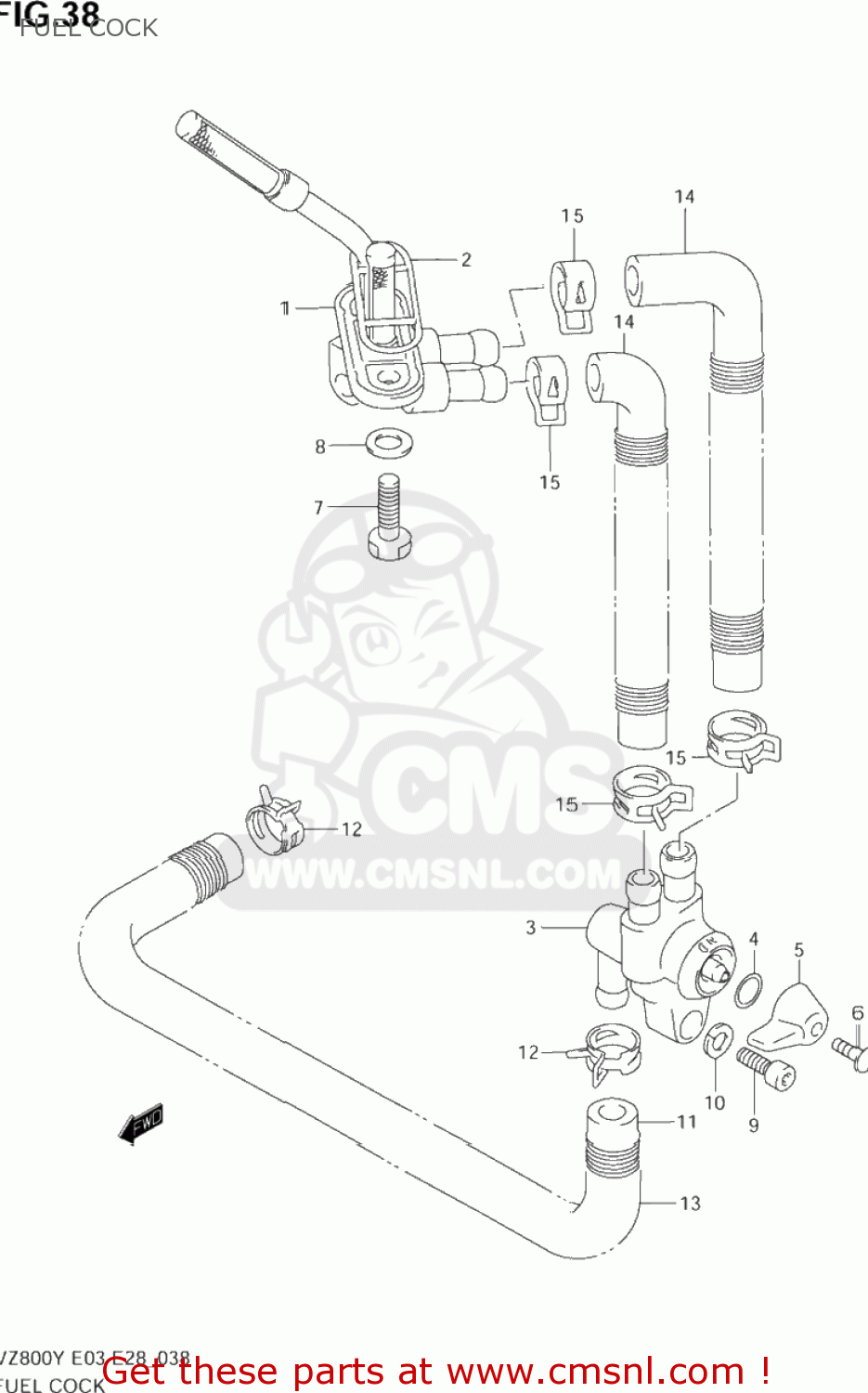

Fuel cock diagram VZ800 MARAUDER 2003 (K3) USA (E03)

FUEL COCK VZ800 MARAUDER 2003 (K3) USA (E03)

FUEL COCK VZ800 MARAUDER 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4433048E00
ref: 1

FILTER UNIT,FUEL

€ 88.50

2

4434887420
ref: 2

GASKET,JOINT (NAS)

€ 5.00

3

4430038B13
ref: 3

COCK ASSY,FUEL

€ 171.50

4

4435312C01
ref: 4

O RING,LEVER

€ 7.50

5

4430638A00
ref: 5

LEVER,FUEL COCK

€ 23.50

6

4430738A00
ref: 6

SCREW,COCK LEVER

€ 18.00

7

0912806006
ref: 7
09128-06057

BOLT(6X20)

€ 2.00

8

0916806026
ref: 8

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

9-1

0713005123
ref: 9-1
07130-0512B

BOLT

€ 2.50

9-2

4436148E00
ref: 9-2
09106-05026

BOLT,FUEL COCK

€ 3.00

9-3

0910605026
ref: 9-3

BOLT(5X12)

€ 3.00

10

0832101053
ref: 10
08321-0105A

LOCK,WASHER

€ 3.00

11

4442148E00
ref: 11

HOSE,FUEL

€ 12.00

12

0940111407
ref: 12
09401-11415

CLIP

€ 2.50

13

0944014047
ref: 13

SPRING

€ 13.50

14

4443148E00
ref: 14
44431-48E01

HOSE,FUEL FILTER/COCK

€ 13.50

15

0940113417
ref: 15

CLIP

€ 2.50
