TURN SIGNAL LAMP
VZ800 MARAUDER 2003 (K3) USA (E03)

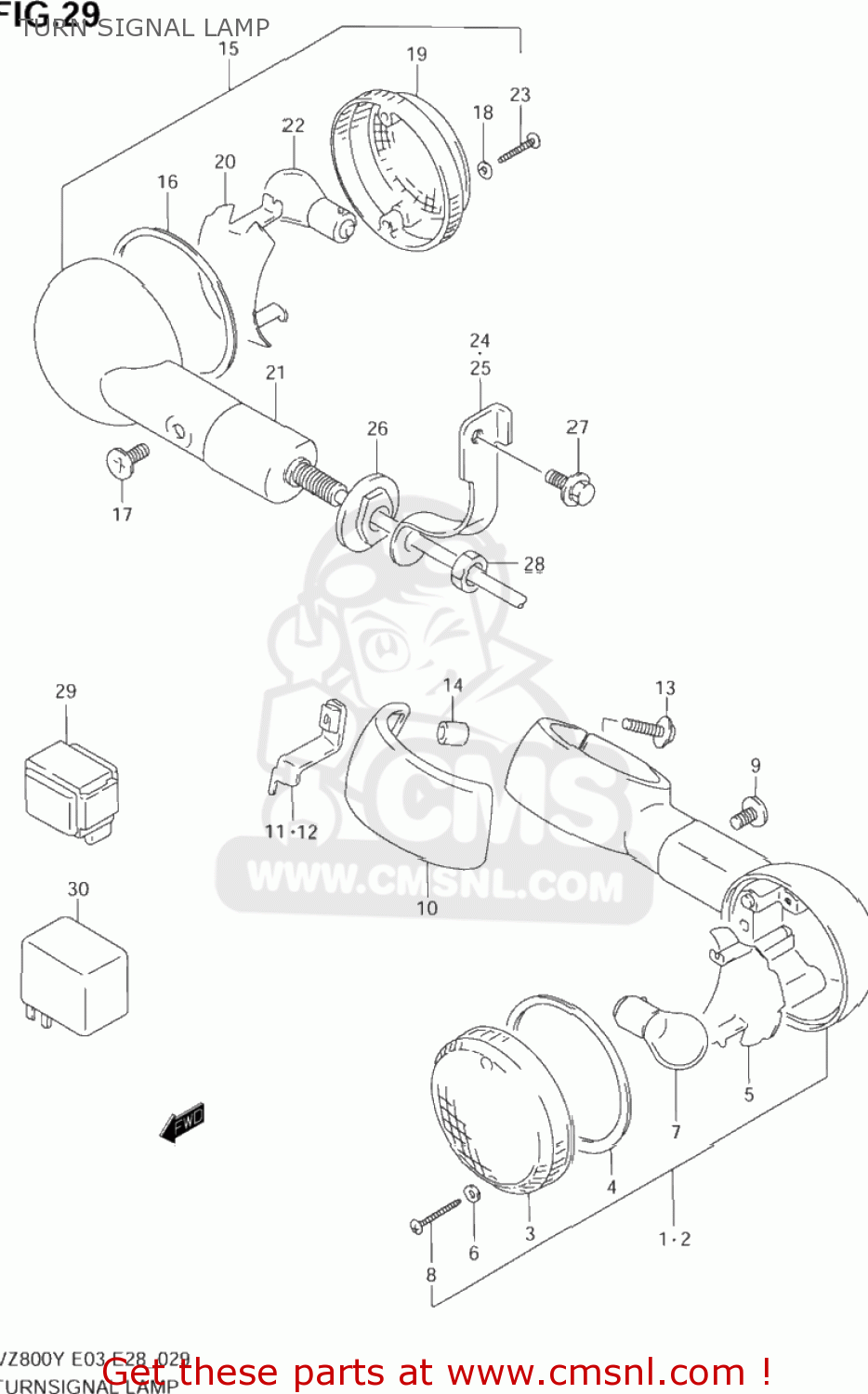

Turn signal lamp diagram VZ800 MARAUDER 2003 (K3) USA (E03)
TURN SIGNAL LAMP VZ800 MARAUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560148E00
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 93.50
2
3560248E00
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 109.00
3
3561238A30
ref: 3
LENS
€ 16.50
4
3561338A00
ref: 4
GASKET (NAS)
€ 11.50
5
3562438A20
ref: 5
REFLECTOR
€ 71.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947112083
ref: 7
09471-12128
BULB(12V21/5W)
€ 6.00
8
0321104253
ref: 8
03211-0425B
SCREW
€ 2.00
9
3562338A01
ref: 9
SCREW
€ 5.50
10
3564548E00
ref: 10
COVER,FR TURNSIGNAL STAY
€ 19.50
11
3567148E10
ref: 11
BRACKET,FR TURNSIGNAL,R
€ 5.00
12
3568148E10
ref: 12
BRACKET,FR TURNSIGNAL,L
€ 5.00
13
0913606126
ref: 13
SCREW(6X25)
€ 2.50
14
0918006121
ref: 14
SPACER(6.4X9.2X12)
€ 2.50
15
3560333D30
ref: 15
LAMP ASSY,RR TURNSIGNAL,R
€ 102.00
16
3561338A00
ref: 16
GASKET (NAS)
€ 11.50
17
3562338A01
ref: 17
SCREW
€ 5.50
18
3562743010
ref: 18
GASKET (NAS)
€ 2.00
19
3565238A21
ref: 19
LENS
€ 16.50
20
3565438A20
ref: 20
REFLECTOR
€ 83.50
21
3565945C10
ref: 21
STAY,TURNSIGNAL RR
€ 36.00
22
0947112045
ref: 22
BULB(12V21W)
€ 5.00
23
0321104253
ref: 23
03211-0425B
SCREW
€ 2.00
24
3560848E01
ref: 24
REINF,RR TURNSIGNAL,R
€ 6.50
25
3560948E01
ref: 25
REINF,RR TURNSIGNAL,L
€ 6.50
26
3569517C00
ref: 26
SPACER,RR TURNSIGNAL
€ 3.00
27
0155006123
ref: 27
01550-0612A
BOLT
€ 2.50
28
0831000103
ref: 28
08310-0010A
NUT
€ 2.00
29
3861026E00
ref: 29
RELAY ASSY
€ 47.00
30
3861003F00
ref: 30
RELAY ASSY,TURNSIGNAL LAMP
€ 88.50
