CAMSHAFT/VALVE

VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

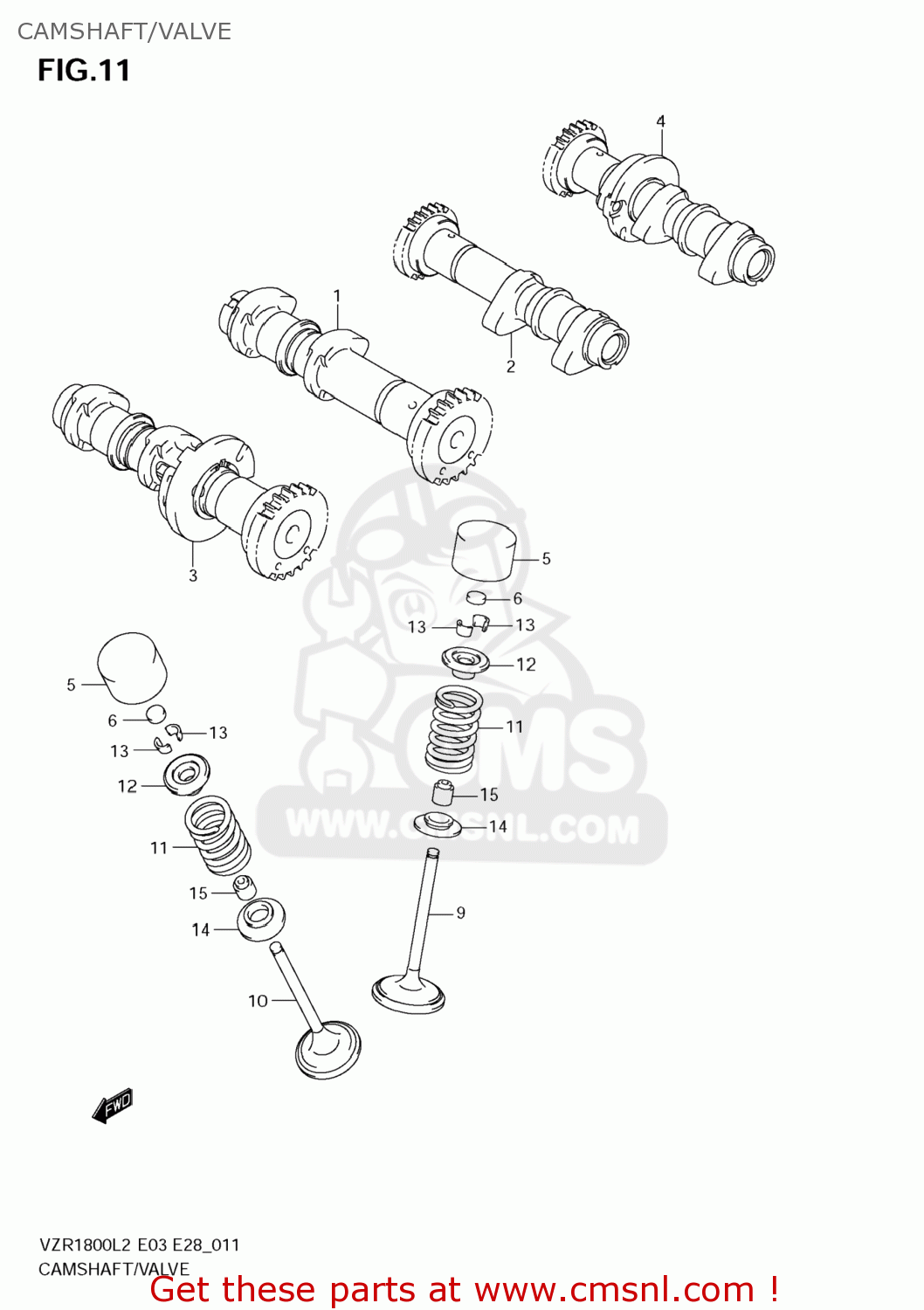

Camshaft/valve diagram VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

CAMSHAFT/VALVE VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

CAMSHAFT/VALVE VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

1271048G00
ref: 1

CAMSHAFT,INTAKE FR

€ 242.50

2

1273048G00
ref: 2

CAMSHAFT,INTAKE RR

€ 249.00

3

1272022H00
ref: 3

CAMSHAFT,EXHAUST FR

€ 419.00

4

1274022H00
ref: 4

CAMSHAFT,EXHAUST RR

€ 431.00

5

1289148G00
ref: 5

TAPPET

€ 91.50

6-1

1289241C00230
ref: 6-1

SHIM,TAPPET(T:2.3)

€ 7.50

6-10

1289241C00275
ref: 6-10

SHIM,TAPPET(T:2.75)

€ 7.50

6-11

1289241C00280
ref: 6-11

SHIM,TAPPET(T:2.8)

€ 7.50

6-12

1289241C00285
ref: 6-12

SHIM,TAPPET(T:2.85)

€ 7.50

6-13

1289241C00290
ref: 6-13

SHIM,TAPPET(T:2.9)

€ 7.50

6-14

1289241C00295
ref: 6-14

SHIM,TAPPET(T:2.95)

€ 7.00

6-15

1289241C00300
ref: 6-15

SHIM,TAPPET(T:3.0)

€ 7.00

6-16

1289241C00305
ref: 6-16

SHIM,TAPPET(T:3.05)

€ 7.50

6-17

1289241C00310
ref: 6-17

SHIM,TAPPET(T:3.1)

€ 7.50

6-18

1289241C00315
ref: 6-18

SHIM,TAPPET(T:3.15)

€ 7.50

6-19

1289241C00320
ref: 6-19

SHIM,TAPPET(T:3.2)

€ 7.50

6-2

1289241C00235
ref: 6-2

SHIM,TAPPET(T:2.35)

€ 7.00

6-20

1289241C00325
ref: 6-20

SHIM,TAPPET(T:3.25)

€ 7.00

6-21

1289241C00330
ref: 6-21

SHIM,TAPPET(T:3.3)

€ 7.00

6-22

1289241C00335
ref: 6-22

SHIM,TAPPET(T:3.35)

€ 7.00

6-23

1289241C00340
ref: 6-23

SHIM,TAPPET(T:3.4)

€ 7.00

6-24

1289241C00345
ref: 6-24

SHIM,TAPPET(T:3.45)

€ 7.00

6-25

1289241C00350
ref: 6-25

SHIM,TAPPET(T:3.5)

€ 7.00

6-3

1289241C00240
ref: 6-3

SHIM,TAPPET(T:2.4)

€ 7.00

6-4

1289241C00245
ref: 6-4

SHIM,TAPPET(T:2.45)

€ 7.00

6-5

1289241C00250
ref: 6-5

SHIM,TAPPET(T:2.5)

€ 7.00

6-6

1289241C00255
ref: 6-6

SHIM,TAPPET(T:2.55)

€ 7.50

6-7

1289241C00260
ref: 6-7

SHIM,TAPPET(T:2.6)

€ 8.00

6-8

1289241C00265
ref: 6-8

SHIM,TAPPET(T:2.65)

€ 7.00

6-9

1289241C00270
ref: 6-9

SHIM,TAPPET(T:2.7)

€ 8.00

7

1280041810
ref: 7

SHIM SET,TAPPET

€ 793.00

7

1280041810
ref: 7

SHIM SET,TAPPET

€ 793.00

8

9900069471
ref: 8

CASE,TAPPET SHIM

€ 103.50

8

9900069471
ref: 8

CASE,TAPPET SHIM

€ 103.50

9

1291148G10
ref: 9

VALVE,INTAKE

€ 26.00

10

1291248G00
ref: 10

VALVE,EXHAUST

€ 38.00

11

1292148G10
ref: 11

SPRING,VALVE

€ 12.50

12

1293148G00
ref: 12

RETAINER,VALVE SPRING

€ 5.50

13

1293285FA0
ref: 13

COTTER,VALVE

€ 1.50

14

1293319B00
ref: 14

SEAT,VALVE SPRING

€ 5.50

15

0928906003
ref: 15

SEAL,OIL(6X12.8X10.2)

€ 3.00
