TURNSIGNAL LAMP (VZR1800Z L2 E03)

VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

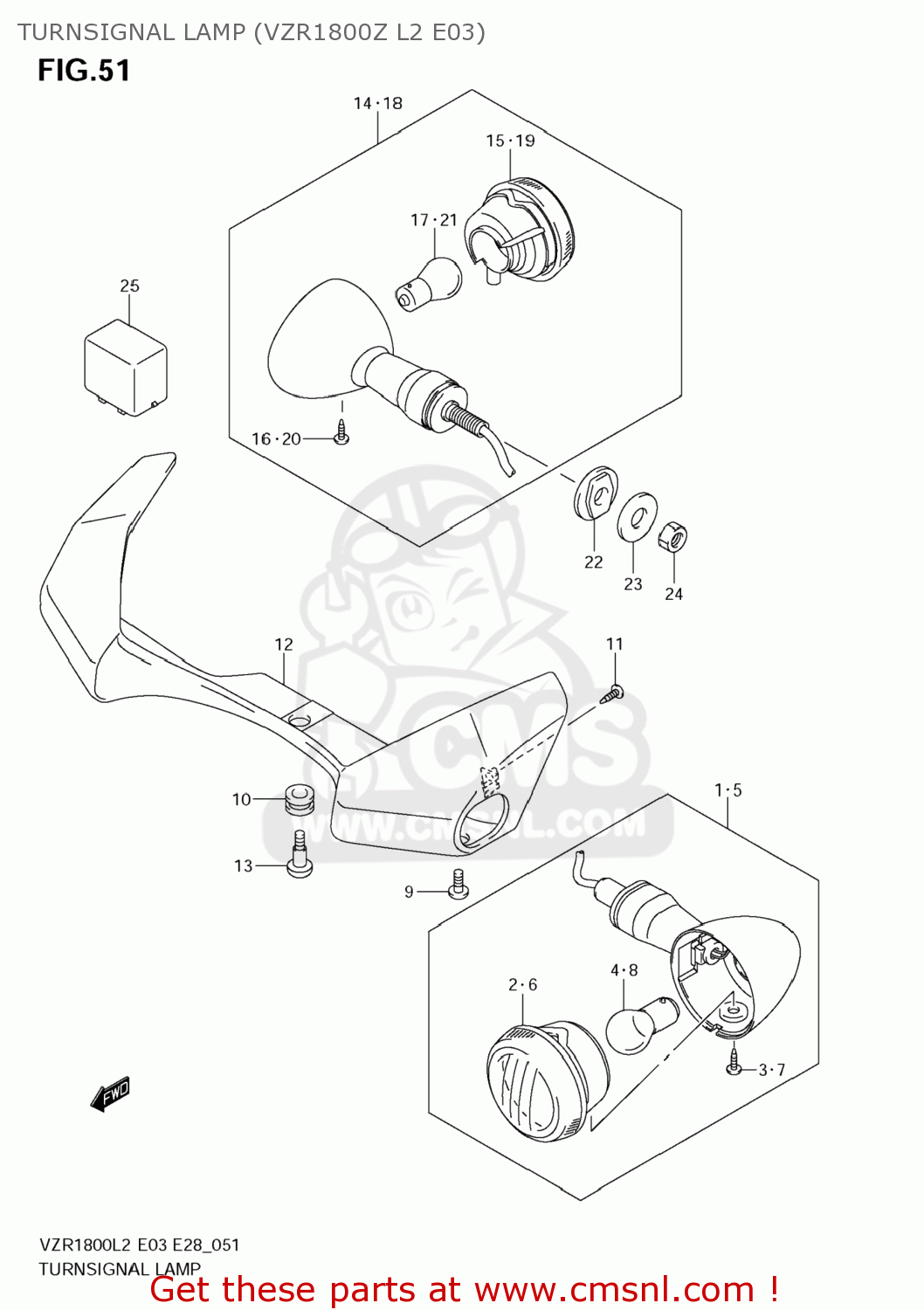

Turnsignal lamp (vzr1800z l2 e03) diagram VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

TURNSIGNAL LAMP (VZR1800Z L2 E03) VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

TURNSIGNAL LAMP (VZR1800Z L2 E03) VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

3560138AH0
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 74.00

2

3561048EB0
ref: 2

LENS

€ 27.00

3

3562338AA0
ref: 3

SCREW(4X10)

€ 4.00

4

0947112224
ref: 4

BULB(12V23/8W)

€ 21.00

5

3560238AH0
ref: 5

LAMP ASSY,FR TURN SIGNAL,L

€ 89.00

6

3563048EB0
ref: 6

LENS

€ 27.00

7

3562338AA0
ref: 7

SCREW(4X10)

€ 4.00

8

0947112224
ref: 8

BULB(12V23/8W)

€ 21.00

9

021420612A
ref: 9

SCREW

€ 2.00

10

0932009016
ref: 10

CUSHION

€ 2.50

11

035410510A
ref: 11

SCREW

€ 1.50

12

3564148G00
ref: 12

STAY,FR TURNSIGNAL

€ 112.50

13

0913906146
ref: 13

SCREW(6X16)

€ 3.00

14

3560348ED0
ref: 14

LAMP ASSY,RR TURNSIGNAL,R

€ 75.50

15

3563038AF0
ref: 15

LENS

€ 24.50

16

3562338AA0
ref: 16

SCREW(4X10)

€ 4.00

17

0947112186
ref: 17

BULB(12V21W,AMBER)

€ 2.50

18

3560438AF0
ref: 18

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

19

3561038AF0
ref: 19

LENS

€ 24.50

20

3562338AA0
ref: 20

SCREW(4X10)

€ 4.00

21

0947112186
ref: 21

BULB(12V21W,AMBER)

€ 2.50

22

3569517C00
ref: 22

SPACER,RR TURNSIGNAL

€ 3.00

23

0916010501
ref: 23

WASHER(10.5X30X2.3)

€ 2.50

24

083100010A
ref: 24

NUT

€ 2.00

25

3861003F00
ref: 25

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
