HEADLAMP

VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

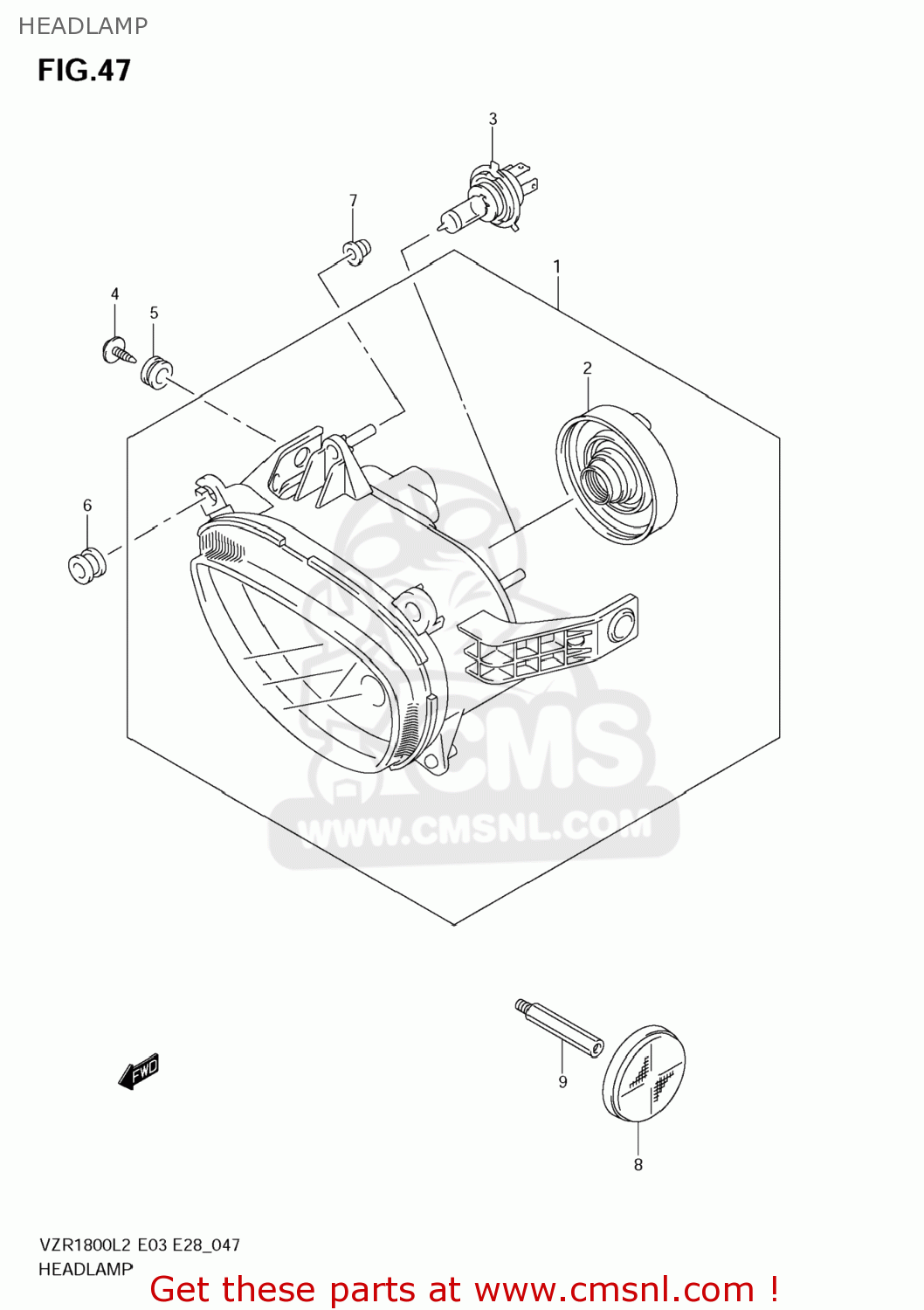

Headlamp diagram VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

HEADLAMP VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

HEADLAMP VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

3510048G31999
ref: 1

HEADLAMP ASSY

€ 203.00

2

3517314G00
ref: 2

COVER

€ 11.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0913605062
ref: 4

SCREW(5X15)

€ 2.50

5

0932009506
ref: 5

CUSHION

€ 2.00

6

0932009039
ref: 6

CUSHION

€ 6.00

7

0932009505
ref: 7

CUSHION

€ 3.50

8

3595014A11
ref: 8

REFLEX REFLECTOR ASSY,FR SIDE

€ 11.00

9

0911906104
ref: 9

BOLT

€ 9.50
