FRAME

VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

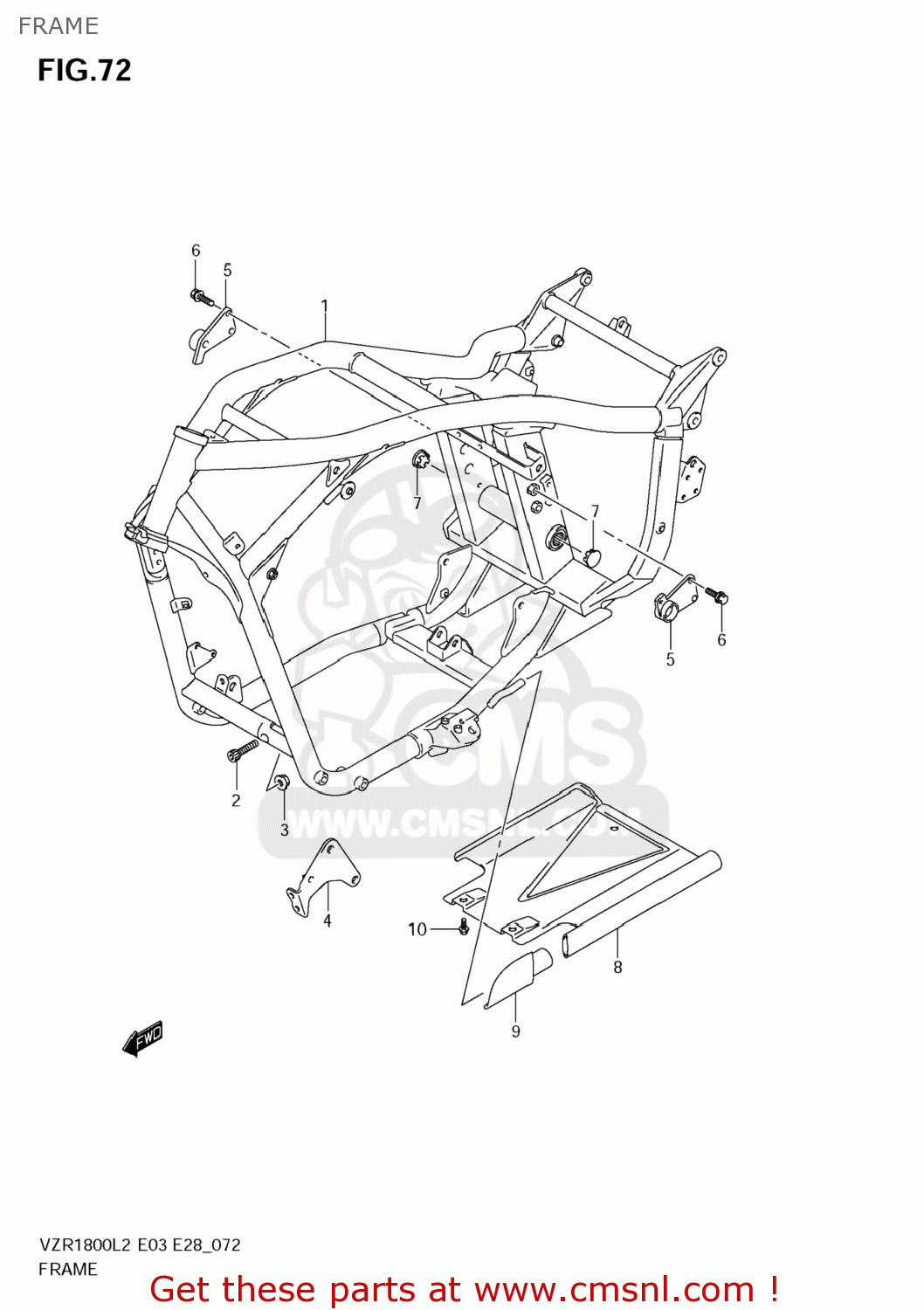

Frame diagram VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

4110048G30019
ref: 1

FRAME(BLACK)

€ 3,598.00

2

071301035B
ref: 2

BOLT

€ 3.50

3

083193110A
ref: 3

NUT

€ 3.00

4

4192048G10
ref: 4

PLATE,ENG MTG FR,L

€ 24.00

5

4193148G20
ref: 5

BRACKET,ENGINE MOUNTING RR

€ 75.00

6

015800830A
ref: 6

BOLT

€ 2.50

7

4358548G10
ref: 7

CAP,ENG MTG BOLT

€ 7.00

8

4256048G00
ref: 8

COVER,UNDER

€ 108.00

9

4256748G00
ref: 9

RUBBER,UNDER COVER

€ 16.00

10

015500612A
ref: 10

BOLT

€ 2.50
