FUEL TANK (VZR1800 L2 E03)

VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

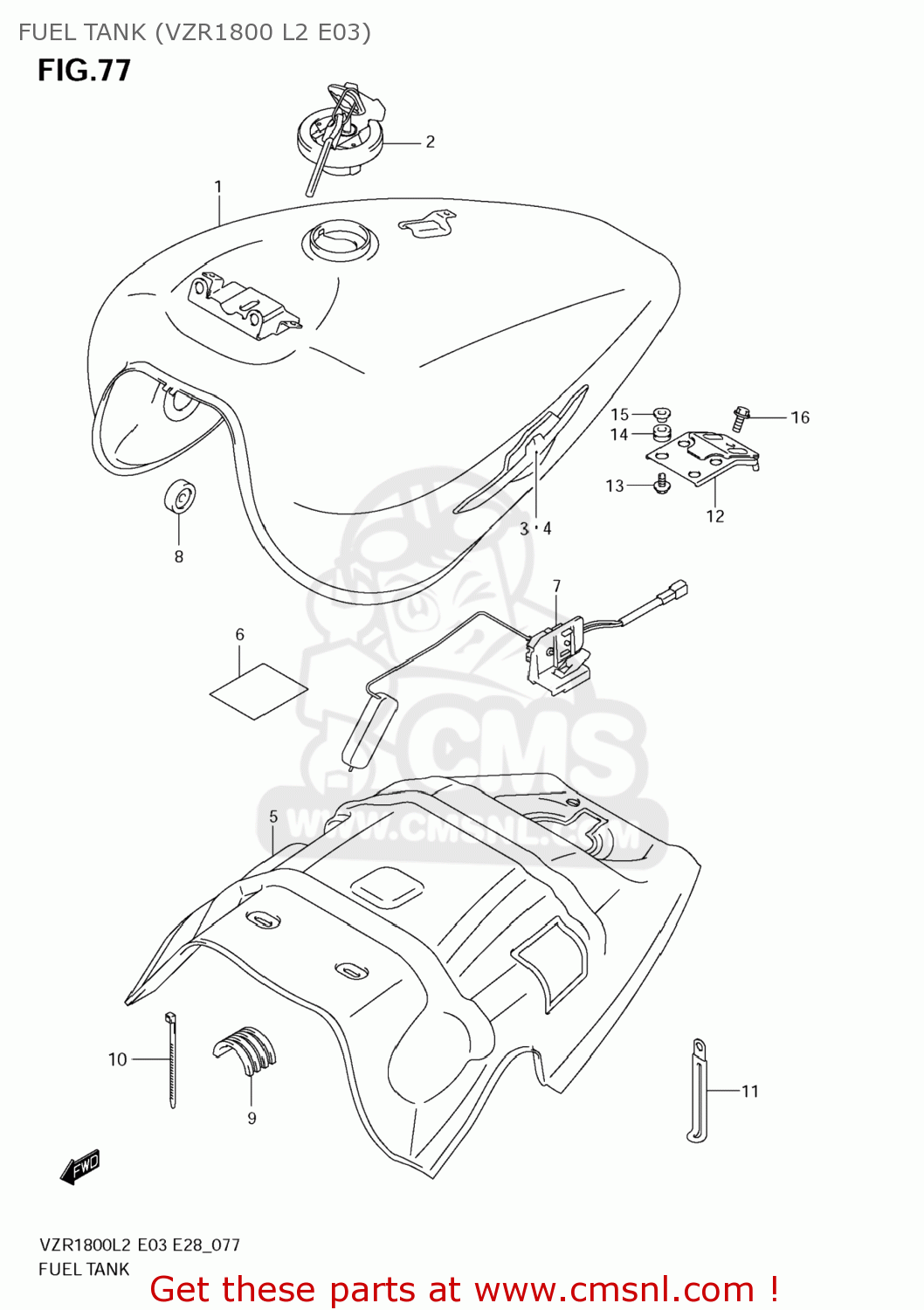

Fuel tank (vzr1800 l2 e03) diagram VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

FUEL TANK (VZR1800 L2 E03) VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

FUEL TANK (VZR1800 L2 E03) VZR1800Z BOULEVARD M109R 2012 (L2) USA CALIF CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

4410048GD0YVB
ref: 1

TANK ASSY,FUEL(BLACK)

€ 817.00

2

4420039830
ref: 2

CAP SET,FUEL TANK

€ 110.50

3

6811148G01
ref: 3

EMBLEM,FUEL TANK,R

€ 57.00

4

6812148G01
ref: 4

EMBLEM,FUEL TANK,L

€ 57.00

5

4419148G10
ref: 5

SHIELD,FUEL TANK HEAT

€ 225.00

6

4419248G00
ref: 6

TAPE,HEAT SHIELD

€ 9.50

7

3481048G00
ref: 7

GAUGE ASSY,FUEL LEVEL SENDER

€ 88.50

8

0932910007
ref: 8

CUSHION

€ 3.00

9

4454113E10
ref: 9

CUSHION,FUEL TANK

€ 13.00

10

0940730402
ref: 10

CLAMP(L:300)

€ 3.50

11

0940406434
ref: 11

CLAMP(L:80 T:1.0)

€ 3.00

12

4453048G10
ref: 12

BRACKET,FUEL TANK RR

€ 28.50

13

0911606192
ref: 13

BOLT(6X20)

€ 2.00

14

0932008001
ref: 14

CUSHION

€ 3.50

15

0916906062
ref: 15

WASHER

€ 3.00

16

015500816A
ref: 16

BOLT

€ 2.50
