CARBURETOR
XF650U 1997 (V) (E22)

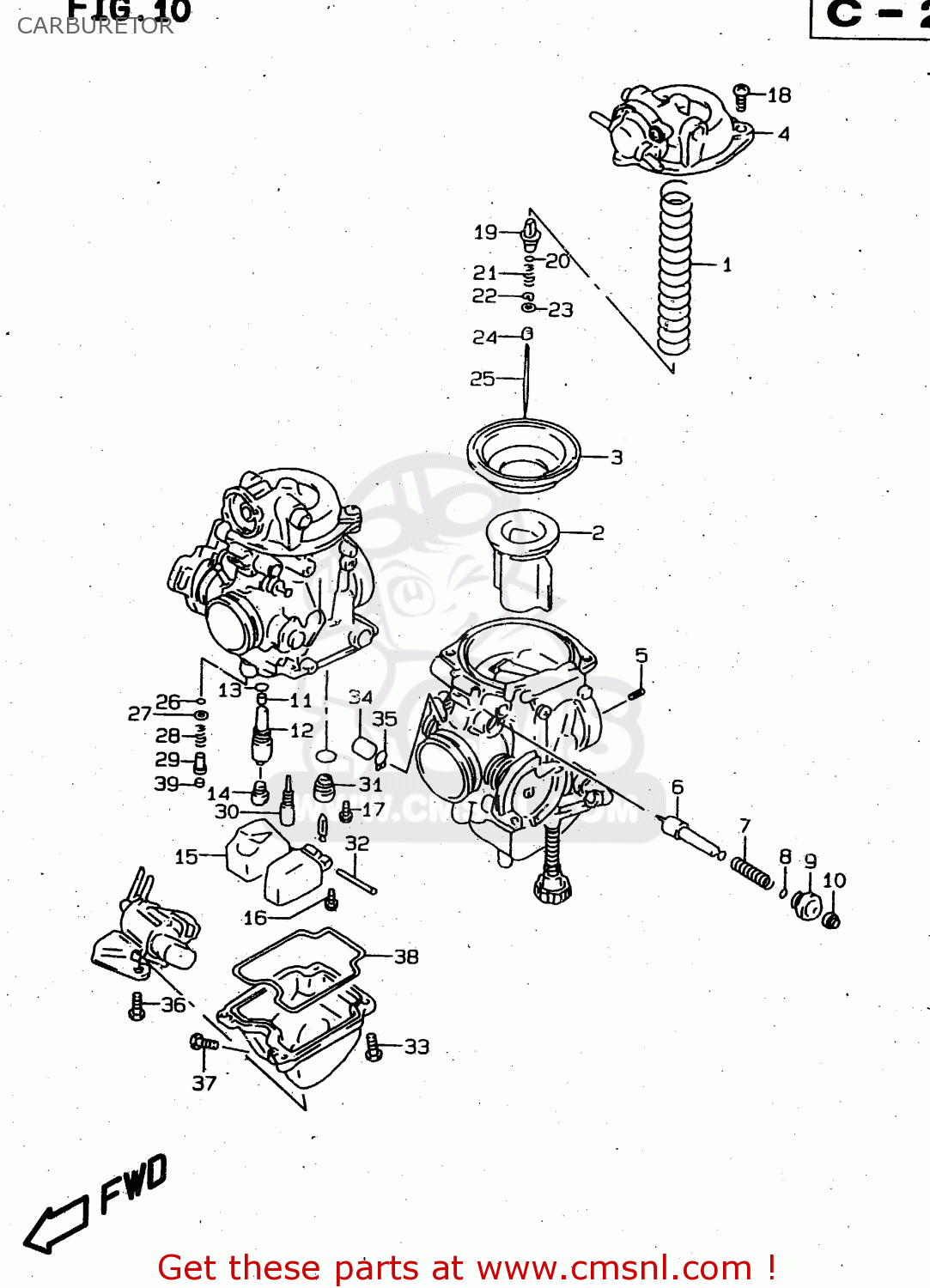

Carburetor diagram XF650U 1997 (V) (E22)
CARBURETOR XF650U 1997 (V) (E22)
×
prices are in EUR
ref
part #
description
quantity
0
1320104F00
ref: 0
E2, E4, E17, E24, E2
CARBURETOR ASSY, LH
€ 600.50
0
1320204F00
ref: 0
E2, E4, E17, E24, E2
CARBURETOR ASSY, RH
€ 548.50
0
1320104F10
ref: 0
E18
CARBURETOR ASSY, LH
€ 446.00
0
1320204F10
ref: 0
E18
CARBURETOR ASSY, RH
€ 229.00
0
1320104F30
ref: 0
XF650UV/UW/UX E22
CARBURETOR ASSY, LH
€ 0.00
0
1320204F30
ref: 0
XF650UV/UW/UX E22
CARBURETOR ASSY, RH
€ 0.00
1
1357304F00
ref: 1
SPRING
€ 11.50
2
1350104F00
ref: 2
EXCEPT XF650UV/UW/UX
VALVE,PISTON
€ 87.00
2
1350104F30
ref: 2
XF650UV/UW/UX E22
VALVE,PISTON
€ 42.00
3
1350704F00
ref: 3
DIAPHRAGM
€ 23.50
4
1350204F00
ref: 4
COVER ASSY,DIAPHRAGM,L
€ 71.00
4
1350204F10
ref: 4
COVER ASSY,DIAPHRAGM,R
€ 62.50
5
0949230013
ref: 5
JET,POWER(150)
€ 13.00
6
1341104F00
ref: 6
PLUNGER ASSY
€ 18.50
7
1341726D00
ref: 7
SPRING
€ 5.50
8
1327847090
ref: 8
O RING
€ 2.00
9
1341844080
ref: 9
GUIDE SCREW,PLUNGER
€ 8.00
10
1368231210
ref: 10
CAP,STARTER VALVE
€ 5.00
11
0949400907
ref: 11
JET,NEEDLE(P-0)
€ 26.50
12
1338504F00
ref: 12
HOLDER,JET
€ 33.00
13
1324643010
ref: 13
O RING
€ 4.00
14
0949123012
ref: 14
JET,MAIN(115)
€ 11.50
15
1325004F00
ref: 15
FLOAT ASSY
€ 27.50
16
0211204083
ref: 16
SCREW
€ 2.00
17
1360205A10
ref: 17
SCREW
€ 4.00
18
0211205127
ref: 18
SCREW
€ 2.50
19
1341833E00
ref: 19
HOLDER
€ 4.50
20
0928005004
ref: 20
O RING(D:1.9,ID:4.8)
€ 2.00
21
1348104F00
ref: 21
SPRING
€ 2.50
22
1339417E60
ref: 22
E RING,MULTIPLE JET NOZZLE
€ 1.50
23
1338244030
ref: 23
WASHER
€ 3.50
24
1338733E00
ref: 24
RING
€ 5.00
25
1338304F00
ref: 25
NEEDLE,JET(5DH23-53-3)
€ 19.00
26
1329529900
ref: 26
O RING,PILOT AIR SCREW
€ 4.00
27
1329129900
ref: 27
WASHER
€ 2.00
28
1326848700
ref: 28
SPRING,THROTTLE SCREW
€ 3.50
29
1327933E00
ref: 29
ADJUSTER
€ 9.50
30
0949220024
ref: 30
JET,PILOT(20)
€ 15.50
31
1337004F00
ref: 31
VALVE ASSY,NEEDLE
€ 67.50
32
1325401010
ref: 32
PIN,FLOAT
€ 3.00
33
0211204107
ref: 33
SCREW
€ 2.00
34
1327484000
ref: 34
CAP
€ 5.50
35
0940106101
ref: 35
CLIP
€ 2.50
36
0211204083
ref: 36
SCREW
€ 2.00
37
1324713A00
ref: 37
SCREW,DRAIN
€ 5.50
38
1325804F00
ref: 38
GASKET (NAS)
€ 9.00
39
1328105A00
ref: 39
E18
PLUG
€ 3.50
