CRANKCASE
XF650U 1997 (V) (E22)

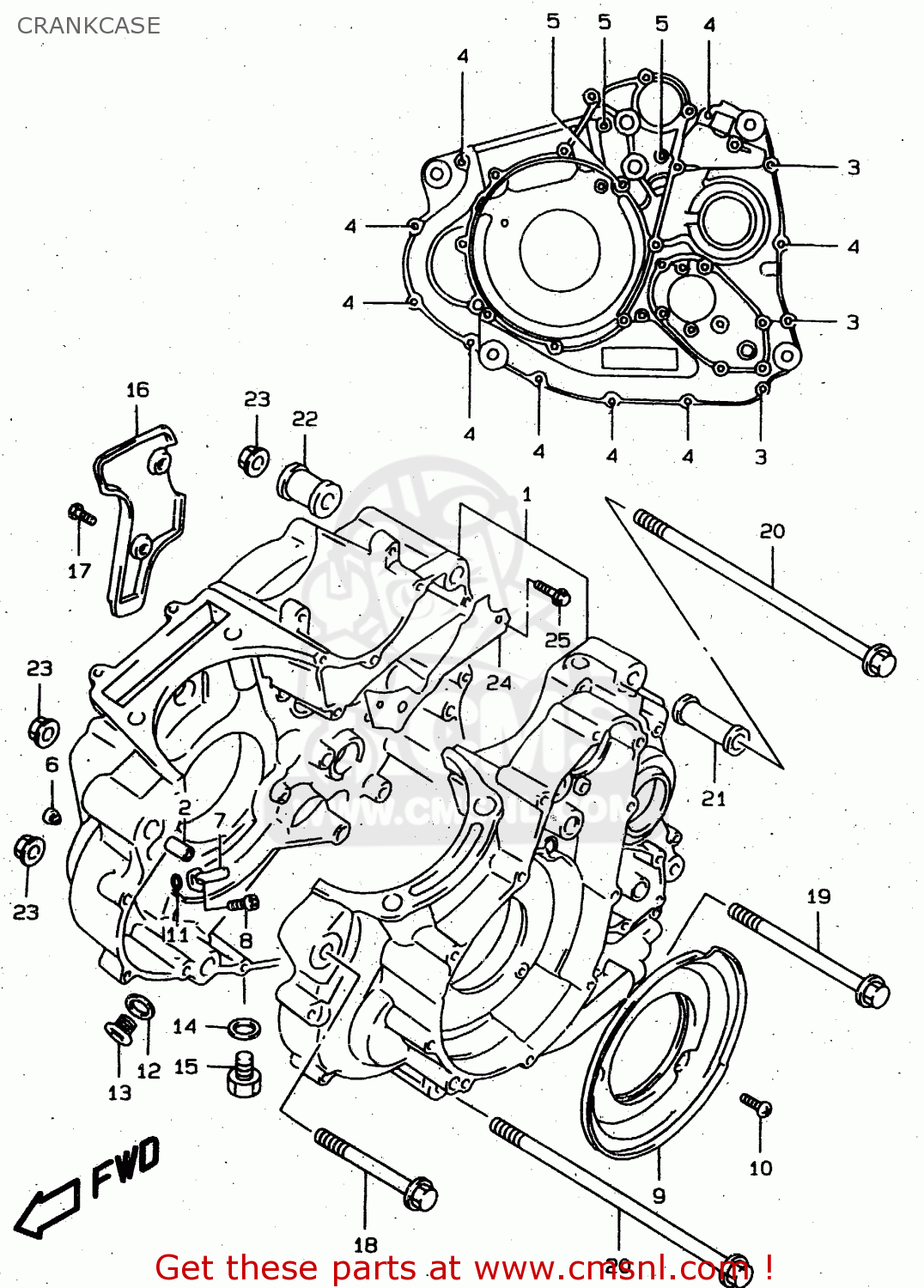

Crankcase diagram XF650U 1997 (V) (E22)
CRANKCASE XF650U 1997 (V) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1130032861
ref: 1
CRANKCASE SET
€ 825.00
2
0920210006
ref: 2
PIN
€ 6.50
3
0154706607
ref: 3
BOLT
€ 2.50
4
0154706407
ref: 4
BOLT
€ 2.50
5
0154706803
ref: 5
BOLT
€ 3.50
6
1118043410
ref: 6
JET,OIL GALLERY
€ 10.50
7
1139004F00
ref: 7
JET,PISTON COOLING
€ 14.50
8
0910606075
ref: 8
BOLT(6X12)
€ 2.50
9
1132332E00
ref: 9
SEPARATOR,CRANKCASE OIL
€ 8.50
10
0211206123
ref: 10
SCREW
€ 1.50
11
0928004004
ref: 11
O RING(D:1.2,ID:4)
€ 2.00
12
0916814002
ref: 12
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
13
0924814005
ref: 13
PLUG,14X12
€ 5.00
14
0916814002
ref: 14
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
15
0924714001
ref: 15
MODEL V/W
PLUG
€ 5.00
15
0924714026
ref: 15
MODEL X
PLUG(14X12)
€ 3.50
16
1131732E00
ref: 16
COVER,BREATHER
€ 9.00
17
0211206123
ref: 17
SCREW
€ 1.50
18
0910310110
ref: 18
BOLT(10X100)
€ 6.50
19
0910310237
ref: 19
BOLT(10X130)
€ 5.50
20
0910310239
ref: 20
BOLT(10X235)
€ 12.00
21
1161045410
ref: 21
SPACER,ENGINE MOUNT(L:65)
€ 11.50
22
1161020C00
ref: 22
SPACER,ENGINE MOUNT(L27)
€ 10.00
23
0915910058
ref: 23
NUT
€ 4.00
24
1131832E00
ref: 24
MODEL W/X
PLATE,BREATHER
€ 9.00
25
0154706123
ref: 25
MODEL W/X
BOLT
€ 2.00
