FUEL COCK

XF650U 1997 (V) (E22)

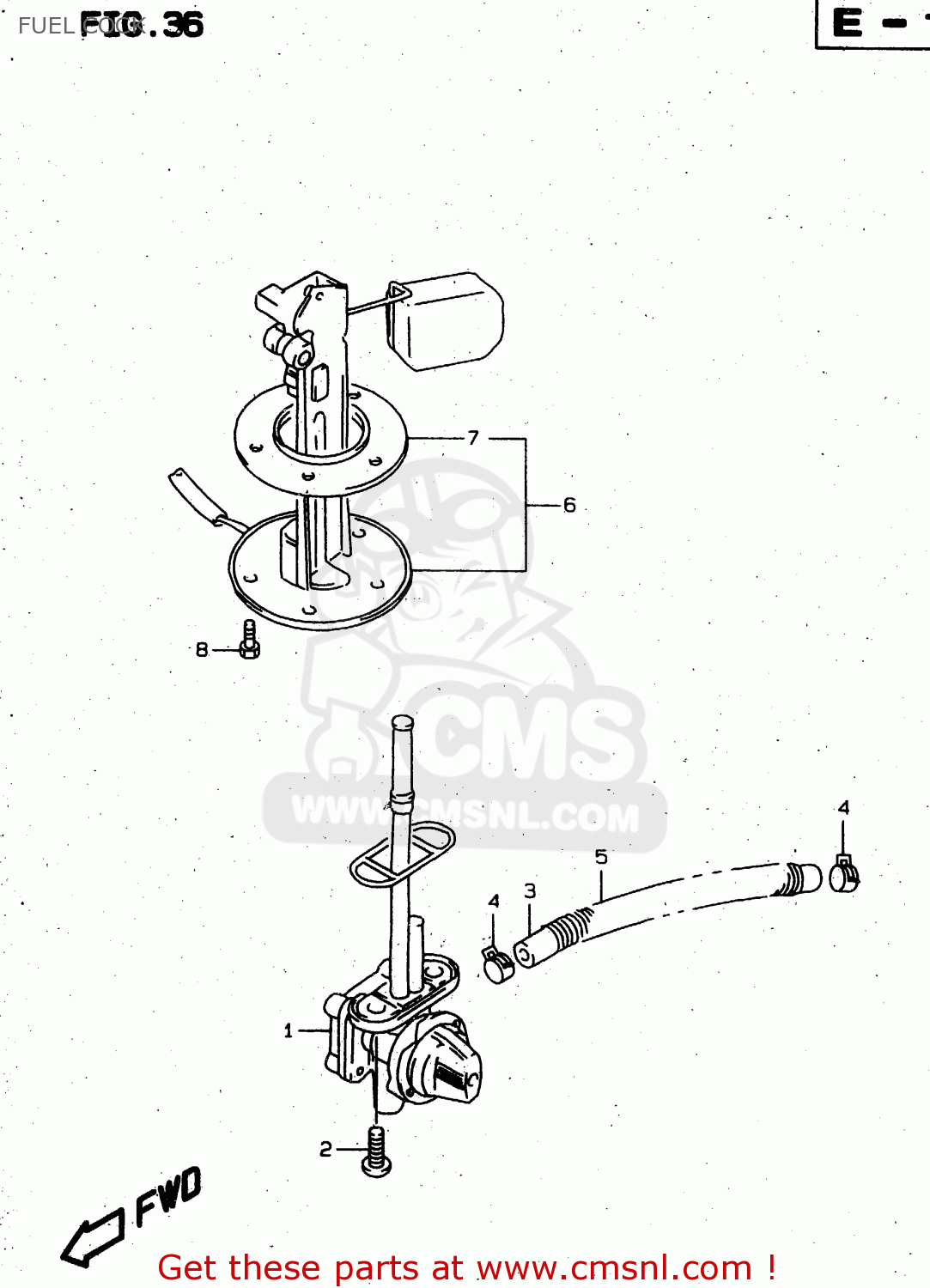

Fuel cock diagram XF650U 1997 (V) (E22)

FUEL COCK XF650U 1997 (V) (E22)

FUEL COCK XF650U 1997 (V) (E22)

prices are in EUR

ref

part #

description

quantity

1

4430004F00
ref: 1
MODEL V

COCK ASSY,FUEL

€ 160.00

1

4430004F01
ref: 1
MODEL W/X

COCK ASSY,FUEL

€ 160.00

2

0211236163
ref: 2

SCREW

€ 2.50

3

0935570125600
ref: 3

HOSE(7X12X600)

€ 26.00

4

0940111407
ref: 4

CLIP

€ 2.50

5

0944014048
ref: 5

SPRING

€ 5.50

6

3481004F00
ref: 6

GAUGE ASSY,FUEL LEVEL SENDER

€ 162.00

7

3482504F00
ref: 7

GASKET (NAS)

€ 37.50

8

0911705003
ref: 8

BOLT 5X10

€ 2.00
