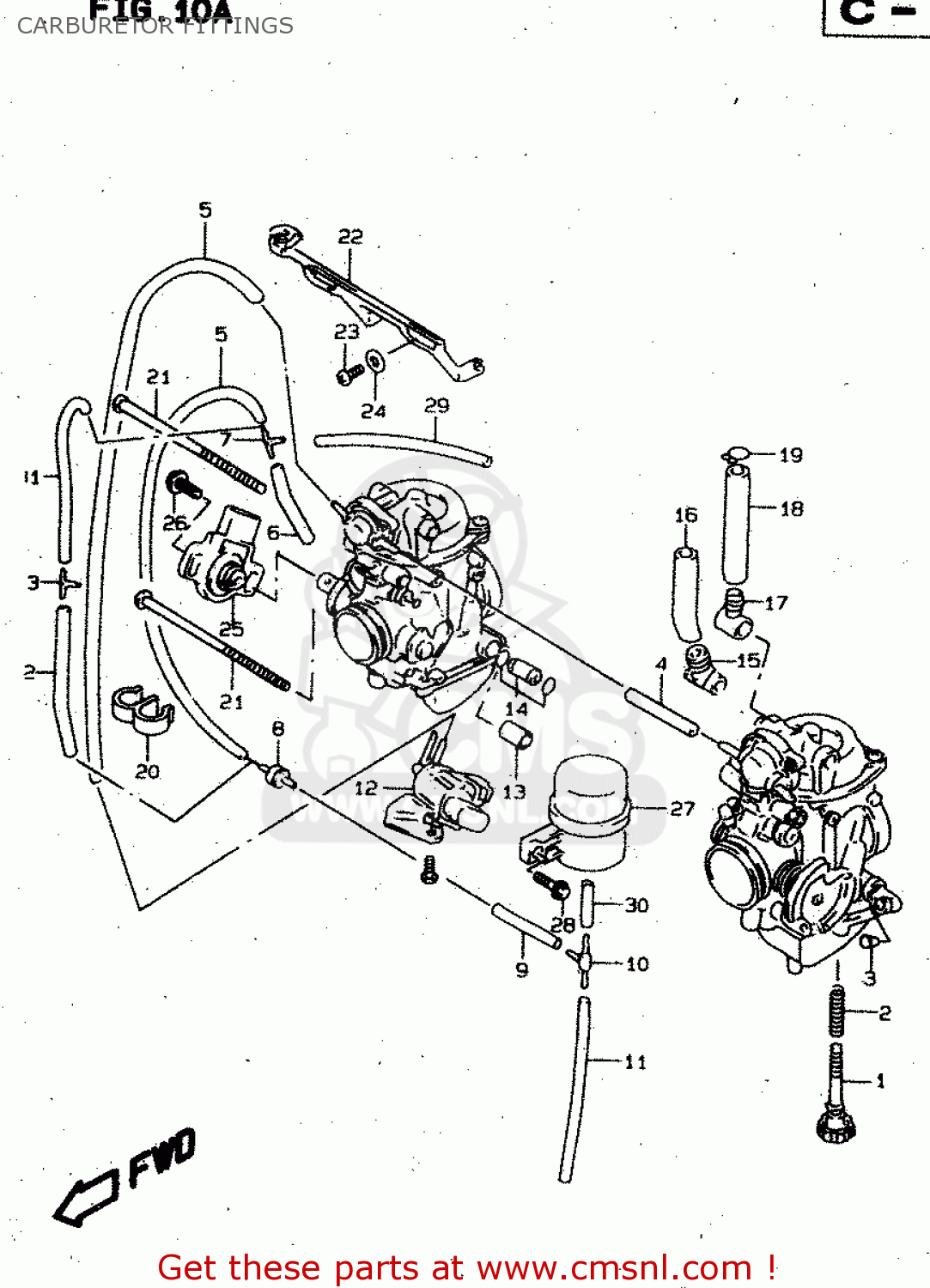

CARBURETOR FITTINGS

ref

part #

description

quantity

1

1326704F00
ref: 1

ADJUSTER

€ 13.50

2

1327133C00
ref: 2

SPRING

€ 4.50

3

1323612C00
ref: 3

FILTER

€ 5.00

4

1368304F00
ref: 4
->13683-04F30

HOSE (3.2X7.4X45)

€ 11.00

5

1368304F30
ref: 5

HOSE

€ 11.00

6

1368304F40
ref: 6
->13683-04F30

HOSE (3.2X7.4X50)

€ 11.00

7

1368504F10
ref: 7

NIPPLE

€ 6.50

8

9556978040
ref: 8

VALVE,CHECK

€ 24.00

9

1368333E50
ref: 9

HOSE

€ 11.00

10

0936704007
ref: 10

3 WAY

€ 3.50

11

1368304F50
ref: 11
->13683-04F30

HOSE (3.2X7.4X200)

€ 11.00

12

1811570G10
ref: 12

VALVE ASSY,3WAY SOLENOID

€ 73.50

13

1368504F00
ref: 13

PIPE

€ 6.00

14

1368534380
ref: 14

PIPE

€ 17.50

15

1368304F10
ref: 15

HOSE

€ 16.00

16

0935270121600
ref: 16
L:600->125

HOSE(7X12.1X600)

€ 20.00

17

1368334C00
ref: 17

3 WAY

€ 10.50

18

1368304F20
ref: 18

HOSE

€ 24.00

19

1367104F00
ref: 19

CLIP

€ 4.50

20

0940800033
ref: 20

CLAMP

€ 2.50

21

0912506003
ref: 21

SCREW(6X100)

€ 4.00

22

1341304F00
ref: 22

LEVER

€ 13.00

23

0214204083
ref: 23

SCREW

€ 1.50

24

1355733E00
ref: 24

PACKING

€ 3.00

25

1355013D60
ref: 25

SENSOR ASSY,THROTTLE

€ 129.50

26

1360255A00
ref: 26

SCREW, SENSOR

€ 3.00

27

1371504F00
ref: 27

CHAMBER,VACUUM

€ 20.00

28

0154706123
ref: 28

BOLT

€ 2.00

29

0935550105600
ref: 29
L:600->230

HOSE(5X10X600)

€ 7.50

30

0935535755600
ref: 30
L:600->30

HOSE(3.5X7.5X600)

€ 10.00

31

1368304F60
ref: 31
E18

HOSE

€ 11.00

32

1368304F70
ref: 32
E18

HOSE

€ 11.00

33

0936704007
ref: 33
E18

3 WAY

€ 3.50

all assemblies
